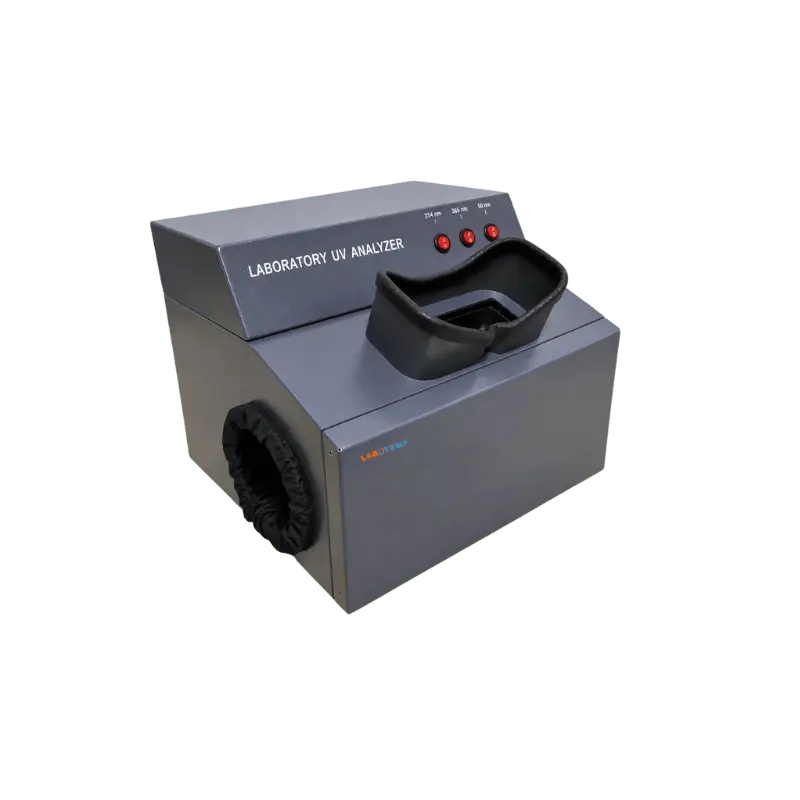

Labotemp Laboratory UV Analyzer Cabinet LUV-102 is designed for ultraviolet inspection and Thin Layer Chromatography (TLC) plate analysis in laboratory environments. Featuring dual ultraviolet wavelengths of 254 nm and 365 nm, this instrument supports the visualization and detection of fluorescent compounds and chromatographic spots. Its two UV light sources can be operated independently or together, providing flexibility for different analytical requirements. The 150 × 50 mm UV filter and 250 × 250 mm usable irradiation area support convenient sample examination.
The Laboratory UV Analyzer cabinet features quartz glass UV tubes and integrated filters to provide the specified ultraviolet illumination. Its cabinet-style structure enables convenient TLC plate viewing, making it suitable for pharmaceutical research, chemical analysis, and routine laboratory testing. With external dimensions of 300 × 300 × 270 mm and a weight of 6.1 kg, it offers a practical solution for laboratories requiring reliable UV inspection.
Why Choose the Labotemp Laboratory UV Analyzer Cabinet LUV-102?
✓ Dual UV Wavelengths: Provides 254 nm and 365 nm illumination for versatile fluorescence detection and TLC plate visualization.
✓ TLC Plate Analysis: Helps observe chromatographic spots during thin-layer chromatography and supports sample identification.
✓ Flexible Illumination: Operate either UV wavelength independently or use both light sources together.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | UV Wavelengths | 254 nm and 365 nm |
| 2 | UV Filter Size | 150 × 50 mm |
| 3 | Lamp Voltage | 50 V ± 10 V |
| 4 | Maximum Irradiation Area | 250 × 250 mm (usable area) |
| 5 | Power Supply Options | 110 V / 60 Hz or 220 V / 50 Hz |
| Product Dimensions | ||
| 6 | Net Weight | 6 kg |
| 7 | Gross Weight | 8 kg |
| 8 | External Dimensions | 300 × 300 × 270 mm |
| 9 | Packaging Dimensions | 350 × 350 × 300 mm |
