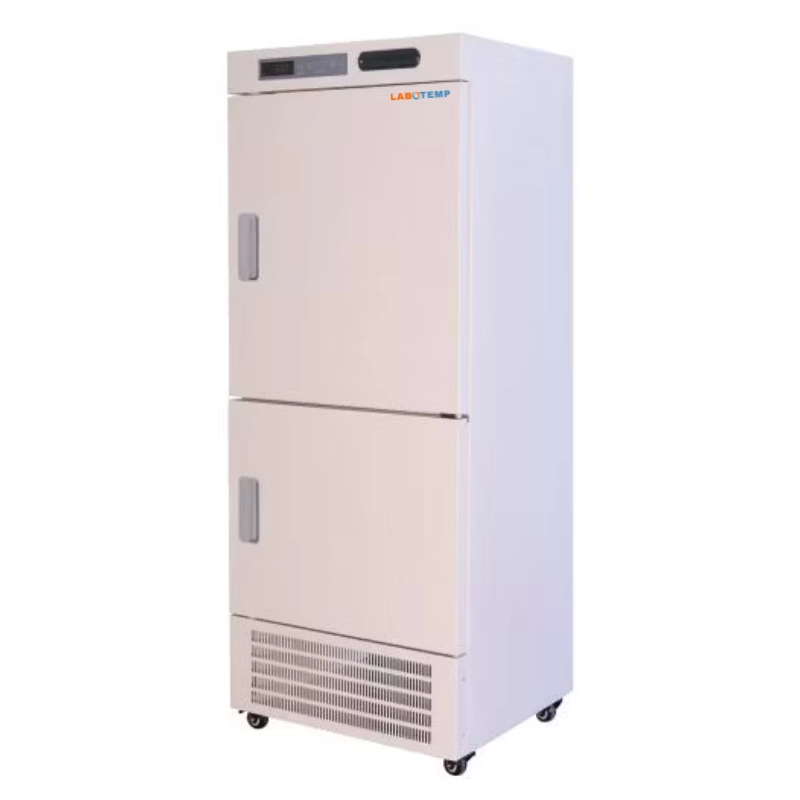

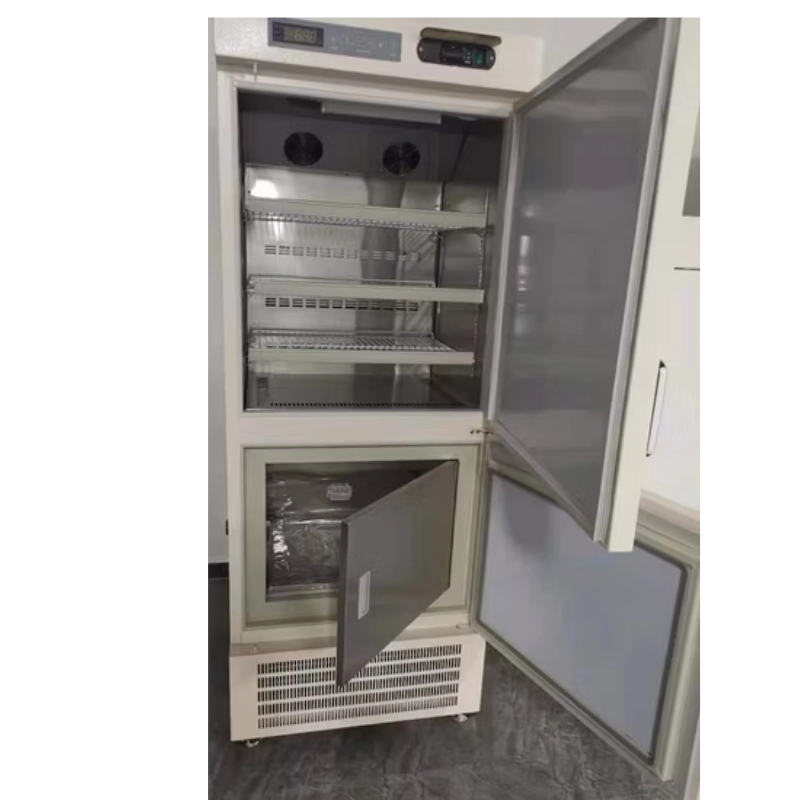

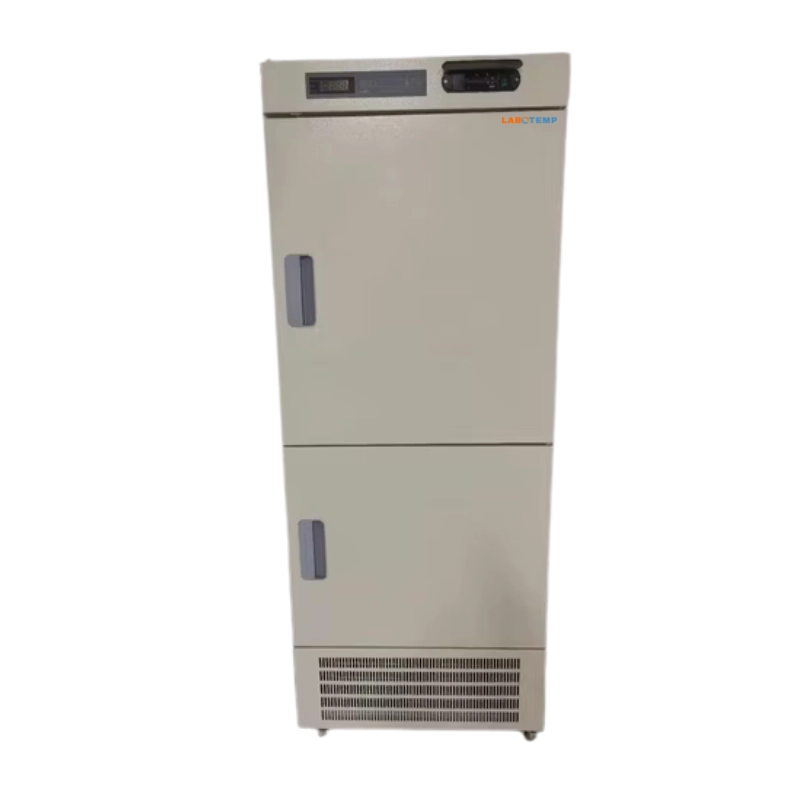

The Labotemp CFR-04 Combined Refrigerator & Freezer provides dependable dual-zone storage with a 280L refrigerator (2–8°C) and a 120L ultra-low freezer (-60°C). Its fluorine-free cooling system ensures efficient, stable performance, while the 304 stainless-steel interior offers durability, hygiene, and easy maintenance for clinical, laboratory, and pharmaceutical use. Engineered for reliability, energy efficiency, and uniform temperature control, it is ideal for modern medical facilities requiring precise, long-term cold storage.
Why Choose Labotemp Combined Refrigerator and Freezer CFR-04?
✓ Safe Cooling Performance ensures consistent protection for vaccines, reagents, and biological materials.
✓ High-Density Insulation with a 120 mm foam layer maintains exceptional temperature stability.
✓ 24/7 Clinical-Grade Operation supports nonstop performance in demanding medical environments.
✓ Precision Dual-Zone Control maintains accurate 2–8°C and –60°C conditions without cross-interference.
|
Model : CFR-04 Model |
CFR-04 |
|
Capacity (Refrigerator / Freezer) : 220L / 140L Capacity (Refrigerator / Freezer) |
220L / 140L |
|
Internal temperature : 2-8°C and -25 ~ -60 ºC Internal temperature |
2-8°C and -25 ~ -60 ºC |
|
Compressor : HUAYI Compressor |
HUAYI |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input power : 470W Input power |
470W |
|
Power consumption : 4.9kw.h/24h Power consumption |
4.9kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Data display Temperature display |
Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM Condenser fans |
EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Thickness of foaming layer : 120mm Thickness of foaming layer |
120mm |
|
Balance hole : 1(Diameter18mm) Balance hole |
1(Diameter18mm) |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 135/175kg Net weight / gross weight |
135/175kg |
|
External dimensions : 770*715*1980mm External dimensions |
770*715*1980mm |
|
Internal dimensions : 660*610*800mm/553*524*425 Internal dimensions |
660*610*800mm/553*524*425 |
|
Package size : 840*790*2150mm Package size |
840*790*2150mm |
|
Number of shelves / inner doors : 3shelves / 2 inner doors, 304 stainless steel Number of shelves / inner doors |
3shelves / 2 inner doors, 304 stainless steel |
Voltage : 220V/50Hz
Thickness of foaming layer : 120mm
Temperature display : Data display
Temperature control : Electronic temperature control
Voltage : 220V/50Hz
Thickness of foaming layer : 90mm
Temperature range : 2~8°C and -25°C, adjustable
Temperature display : Data display
Voltage : 220V/50Hz
Thickness of foaming layer : 120mm
Temperature display : Data display
Temperature control : Electronic temperature control
Voltage : 220V/50Hz
Thickness of foaming layer : 120mm
Temperature display : Data display
Temperature control : Electronic temperature control
Type: Vertical
Temperature Display: Digital Display
Temperature Control: (Kaide) Electronic Temperature Controller
Shelves / Inner Door: Upper: 2 Layers Wire Shelves; Lower: 1 Shelf & 1 Inner Door (304 Stainless Steel)
