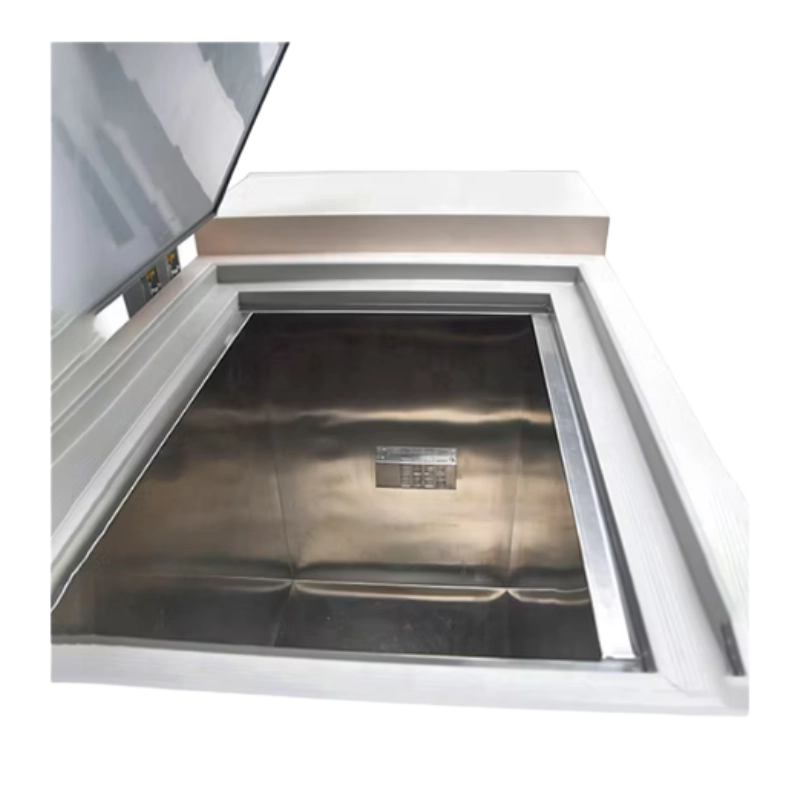

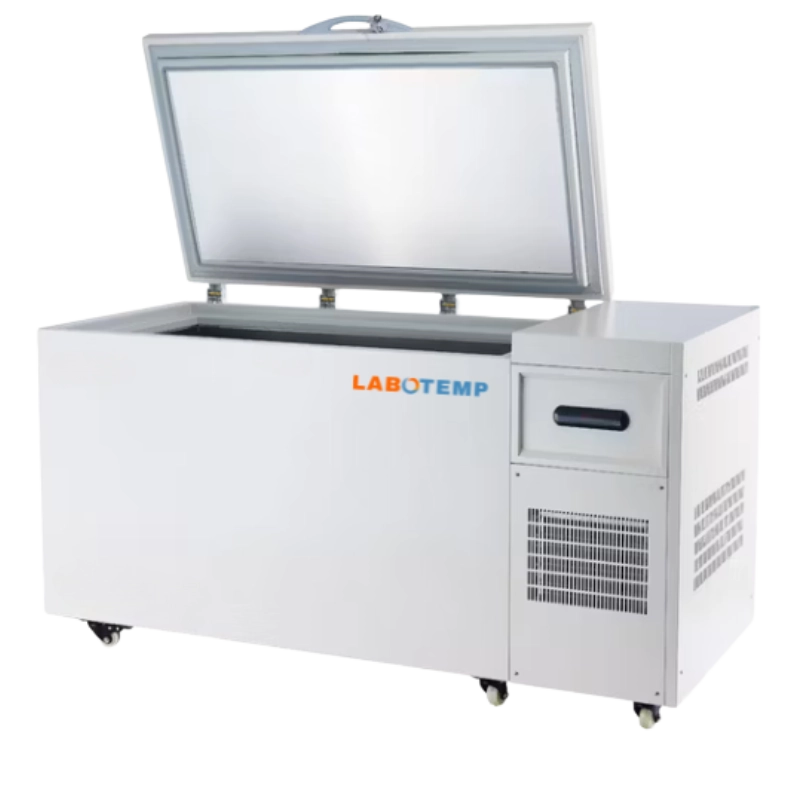

Labotemp Laboratory Freezer LDF-10 is a high-capacity Laboratory Freezer engineered for precise and reliable low-temperature storage in laboratories, hospitals, and industrial environments. With an adjustable temperature range of -25°C to -65°C and a large 520L chamber, it ensures stable preservation of biological samples, vaccines, enzymes, reagents, and pharmaceutical materials. The stainless steel 304 interior provides a hygienic, corrosion-resistant environment, while thick insulation minimizes temperature fluctuations and enhances thermal efficiency during long-term storage.

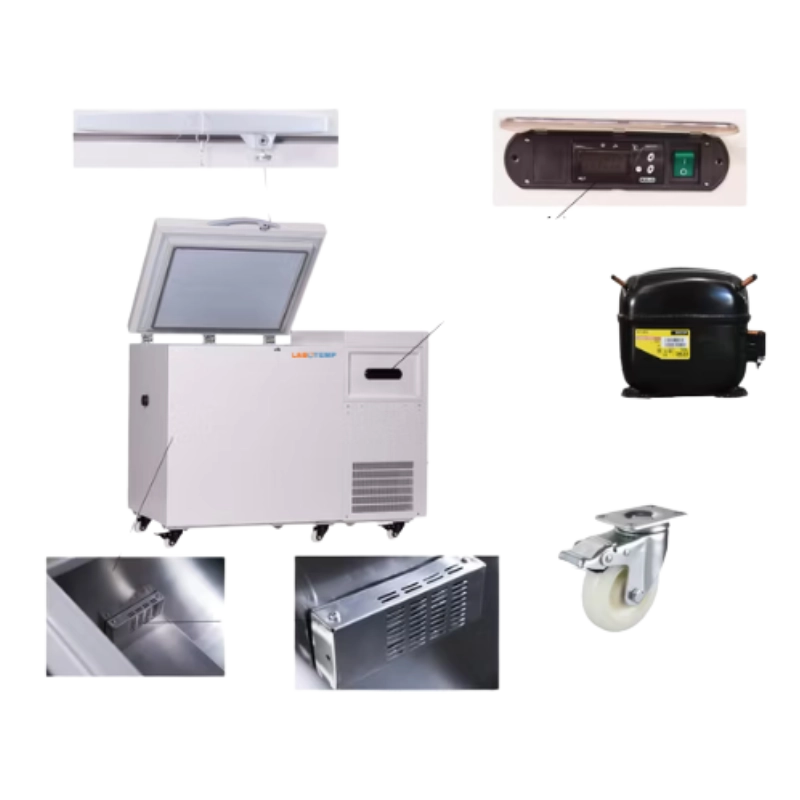

Designed for continuous operation, this Lab Freezer integrates a high-performance SECOP (Danfoss) compressor with a single refrigeration system for uniform and efficient cooling. The electronic temperature control with digital display and PTC probe ensures accurate monitoring, while Germany EBM condenser fans improve airflow and system stability. Built-in audible and visual alarms enhance safety by alerting users to temperature deviations. With a folding lid and castors for easy handling, this dependable laboratory fridge freezer delivers durability, energy efficiency, and consistent performance for demanding applications.
Why choose Labotemp LDF-10 Laboratory Freezer?
✓ High-Capacity Small Lab Freezer Alternative: 520L storage supports large-scale laboratory needs
✓ Reliable Lab Freezer Performance: Stable cooling ensures consistent sample preservation
✓ Durable Laboratory Fridge Freezer Design: Built for long-term reliability and hygiene
|
Model : LDF-10 Model |
LDF-10 |
|
Capacity : 520L Capacity |
520L |
|
Temperature range : -25°C to -65°C, adjustable Temperature range |
-25°C to -65°C, adjustable |
|
Compressor : (SECOP)DANFOSS Compressor |
(SECOP)DANFOSS |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 500W Input Power |
500W |
|
Power consumption : 8.6kw.h/24h Power consumption |
8.6kw.h/24h |
|
Refrigerant : Fluorine Free Environmental Protection Refrigerant Refrigerant |
Fluorine Free Environmental Protection Refrigerant |
|
Temperature Control : Electronic Temperature Control Temperature Control |
Electronic Temperature Control |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature display : Digital data display Temperature display |
Digital data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 153/202kg Net weight / gross weight |
153/202kg |
|
External dimensions : 1855*895*1005mm External dimensions |
1855*895*1005mm |
|
Internal dimensions : 1220*600*695mm Internal dimensions |
1220*600*695mm |
|
Package size : 1915*955*1140mm Package size |
1915*955*1140mm |
