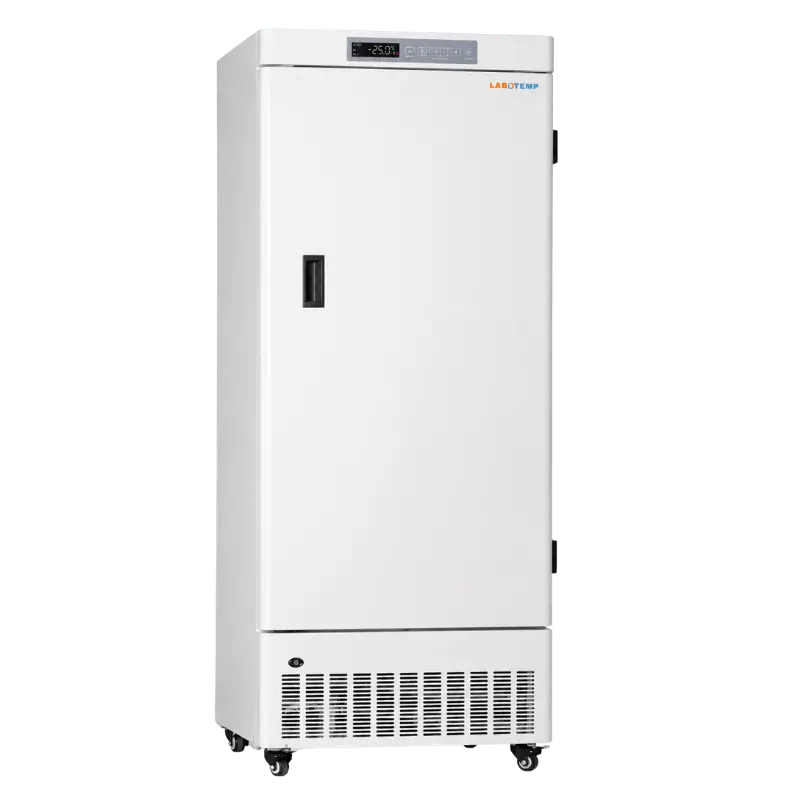

Labotemp -20°C to -40°C Laboratory Freezer LDF-24 provides 328 L of storage capacity for laboratories requiring reliable low-temperature preservation of samples. Operating from -20°C to -40°C at an ambient temperature of 10–32°C, this laboratory freezer features a microprocessor controller, digital temperature display, and NTC sensor for temperature monitoring and adjustment. Its electro-galvanized steel interior and exterior with antimicrobial powder coating support durability and routine cleaning.
Designed for organized sample storage, the LDF-24 features four shelves, lockable caster wheels, and a manual defrost system. The CFC-free R290 refrigerant supports environmentally conscious refrigeration, while the audible and visual alarm system alerts users to high or low temperatures and sensor errors. An optional USB port and remote alarm port provide additional monitoring connectivity when configured. With a power consumption of 330 W and a standard power-failure alarm backup of 8 hours, this freezer suits laboratories that need accessible, compartmentalized storage for temperature-sensitive materials.
Why Choose Labotemp -20°C to -40°C Laboratory Freezer LDF-24?
✓ 328 L Storage Capacity: Accommodates laboratory samples with organized shelf-based storage.
✓ Microprocessor Temperature Control: Enables temperature adjustment and clear digital monitoring.
✓ Audible and Visual Alarms: Alerts users to temperature deviations and sensor errors.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Product Name | -20°C to -40°C Laboratory Freezer |
| 2 | Capacity | 328 L |
| 3 | Temperature Range | -20°C to -40°C |
| 4 | Ambient Temperature | 10°C to 32°C |
| 5 | Internal Dimensions (W × D × H) | 508 × 455 × 1393 mm |
| 6 | External Dimensions (W × D × H) | 673 × 676 × 1886 mm |
| Cooling & Temperature Control | ||
| 7 | Temperature Sensor | NTC |
| 8 | Controller | Microprocessor |
| 9 | Display Type | Digital Display |
| 10 | Defrost Method | Manual |
| Cooling System | ||
| 11 | Refrigerant | R290 (CFC-Free) |
| 12 | Compressor Brand | CUBIGEL |
| 13 | Compressor Quantity | 1 |
| Alarms & Safety | ||
| 14 | High/Low Temperature Alarm | Standard |
| 15 | Sensor Error Alarm | Standard |
| 16 | Power Failure Alarm Backup | 8 hours |
| 17 | Door Lock | Yes |
| 18 | Controller Password Protection | Yes |
| Construction & Storage | ||
| 19 | Internal Material | Electro-galvanized steel with antimicrobial powder coating |
| 20 | External Material | Electro-galvanized steel with antimicrobial powder coating |
| 21 | Shelves | 4 |
| 22 | Caster Wheels | Standard, lockable |
| Electrical Specifications | ||
| 23 | Power Supply | AC 110/220 V ±10%, 50/60 Hz |
| 24 | Power Consumption | 330 W |
| 25 | Noise Level | 48 dB |
| Accessories | ||
| 26 | Remote Alarm Port | Standard |
| 27 | Test Hole | 1 × 25 mm |
| Weight & Shipping | ||
| 28 | Net Weight | 104 kg |
| 29 | Gross Weight | 126 kg |
| 30 | Shipping Dimensions (W × D × H) | 760 × 755 × 2000 mm |
Research Laboratories: Suitable for storing temperature-sensitive samples used in laboratory research and experiments.
Pharmaceutical Laboratories: Supports low-temperature storage of temperature-sensitive pharmaceutical materials, where appropriate.
Clinical and Diagnostic Laboratories: Provides low-temperature storage for laboratory specimens and materials requiring temperatures between -20°C and -40°C.
Educational Institutions: Useful for sample storage in university laboratories and scientific research facilities.
Industrial Testing Laboratories: Supports the storage of temperature-sensitive samples used in testing and quality control processes.
