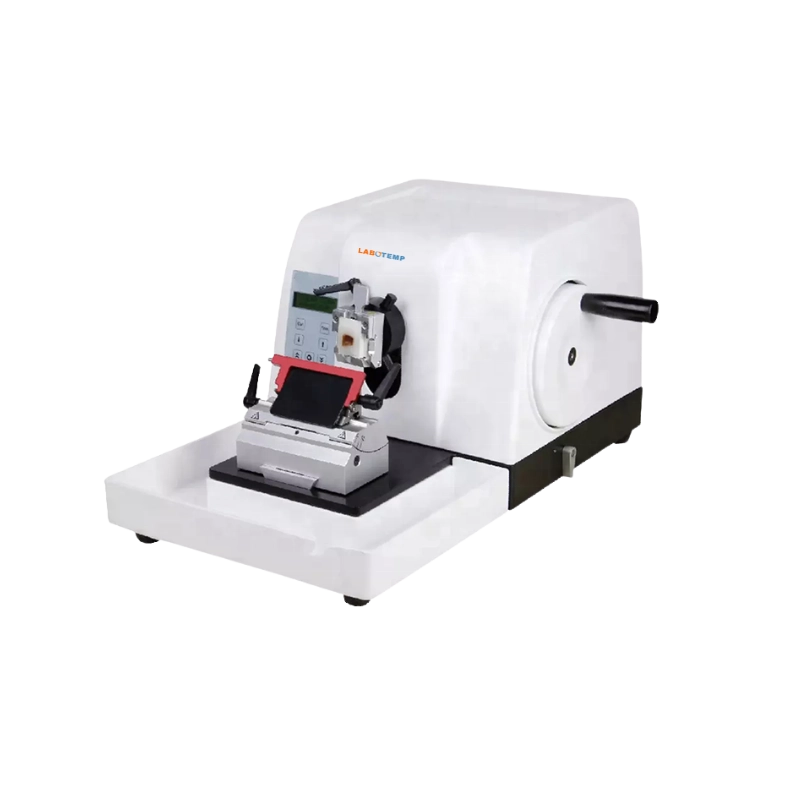

Labotemp Rotary Microtome ROM-05 is a precision manual rotary microtome developed for accurate tissue sectioning in histopathology and diagnostic laboratories. This robust microtome machine delivers consistent thin sections with an adjustable cut thickness range of 0–60 μm and a minimum section setting of 1 μm, supporting dependable serial sections for routine histology and light microscopy. The precision screw-feed mechanism and cross-roller guide rails provide stable, controlled cutting with high repeatability.
The ROM-05 supports reliable specimen handling with 28 mm horizontal feed and 70 mm vertical feed, enabling smooth trimming and sectioning of paraffin-embedded tissue. A rigid microtome blade holder, available in high- or low-profile options, supports standard disposable microtome blades for stable blade contact at the cutting edge.
Why choose Labotemp Rotary Microtome ROM-05?
✓ Precise thickness control: Adjustable 0–60 μm range with 1 μm minimum setting
✓ Stable specimen movement: 28 mm horizontal and 70 mm vertical feed
✓ Blade protection: Optional 90 μm retraction reduces blade wear
✓ Durable manual design: Precision guide rails ensure smooth, repeatable sectioning
| General Specifications | |
|
Section Thickness Setting Range : 0–60 µm Section Thickness Setting Range |
0–60 µm |
|
Section Thickness Setting : 0–20 µm in 1 µm increment; 20–60 µm in 5 µm increment Section Thickness Setting |
0–20 µm in 1 µm increment; 20–60 µm in 5 µm increment |
|
Trimming Thickness Setting Range : 0–60 µm Trimming Thickness Setting Range |
0–60 µm |
|
Minimum Sectioning Thickness : 1 µm Minimum Sectioning Thickness |
1 µm |
|
Precision and Error : ±1% Precision and Error |
±1% |
|
Specimen Retraction : 90 µm (Optional) Specimen Retraction |
90 µm (Optional) |
|
Maximum Specimen Size : 60 × 50 mm Maximum Specimen Size |
60 × 50 mm |
|
Specimen Horizontal Feeding : 28 mm Specimen Horizontal Feeding |
28 mm |
|
Specimen Vertical Feeding : 70 mm Specimen Vertical Feeding |
70 mm |
|
Specimen Orientation System : X-Y 8° Specimen Orientation System |
X-Y 8° |
| Operation | |
|
Method : Manual rotary sectioning Method |
Manual rotary sectioning |
|
Guide Rail System : Imported cross-roller guide rails with screw motion Guide Rail System |
Imported cross-roller guide rails with screw motion |
|

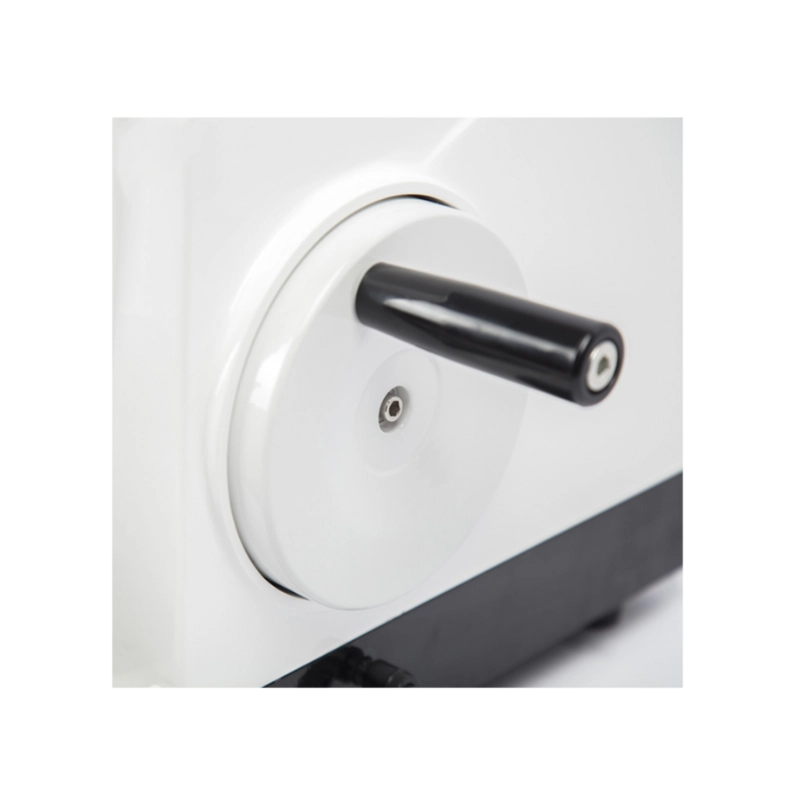

Handwheel : Mechanical balance with locking at any position Handwheel |
Mechanical balance with locking at any position |
|

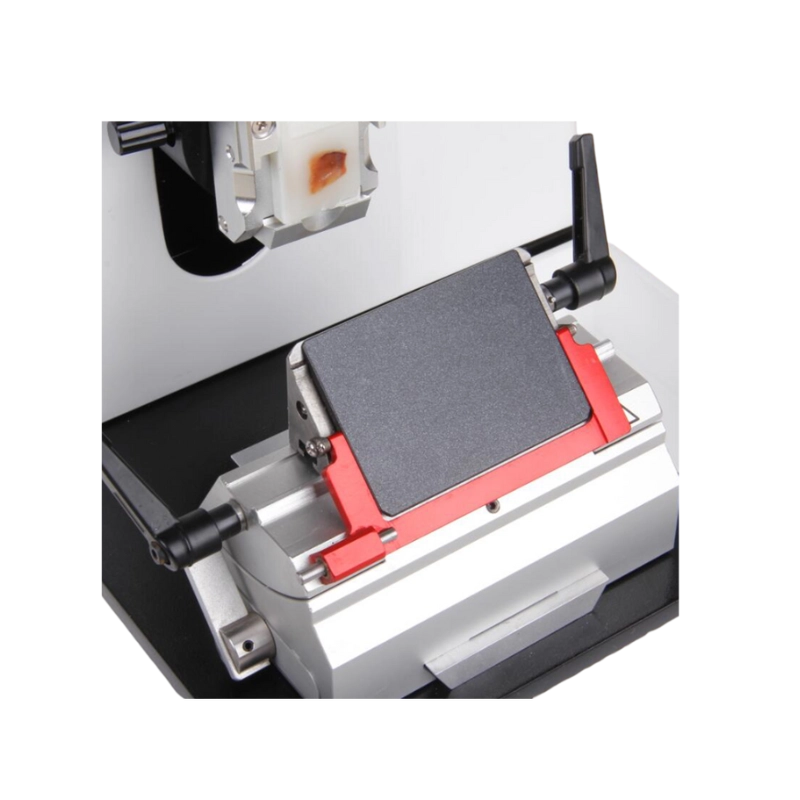

Blade Holder : Red blade holder covering full blade length Blade Holder |
Red blade holder covering full blade length |
|
Specimen Clamp : Easy switching between specimen clamps Specimen Clamp |
Easy switching between specimen clamps |
|
Waste Tray : Magnetic large waste tray Waste Tray |
Magnetic large waste tray |
| Physical Dimensions | |
|
Size (W × D × H) : 590 × 500 × 330 mm Size (W × D × H) |
590 × 500 × 330 mm |
|
Net Weight : 36 kg Net Weight |
36 kg |
|
Gross Weight : 54 kg Gross Weight |
54 kg |
|
Package Size(W × D × H) : 690 × 590 × 500 mm Package Size(W × D × H) |
690 × 590 × 500 mm |
