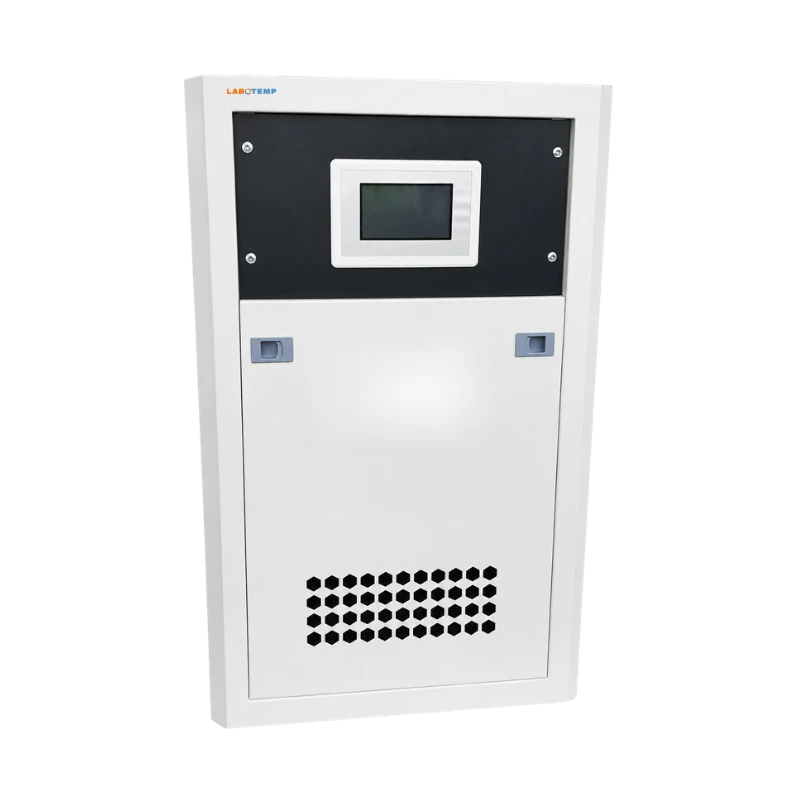

Labotemp Air Cooled Chiller LAC-209 features a 2.95 kW cooling capacity, 20 L integrated water tank, R410A refrigerant, and a high-efficiency hermetic scroll compressor for dependable temperature-controlled cooling. Designed as a laboratory chiller and recirculating chiller, it provides stable chilled water circulation for analytical instruments, rotary evaporators, laser systems, reactors, freeze dryers, and other laboratory or industrial equipment requiring continuous heat removal. The plate-type evaporator, precision expansion valve, and efficient condenser system ensure consistent cooling performance while maintaining reliable operating temperatures across demanding applications.
Built for long-term operation, the LAC-209 combines energy-efficient cooling technology with comprehensive safety protection, including compressor overload protection, high and low pressure protection, over-temperature protection, anti-freeze protection, phase sequence monitoring, and exhaust overheat protection. The integrated circulation pump delivers stable coolant flow, while the air-cooled design eliminates the need for an external cooling water source, simplifying installation and maintenance. Equipped with temperature sensing capabilities, optional conductivity monitoring, RS232 communication, and remote start functionality, this water chiller supports modern laboratory workflows where temperature stability, operational reliability, and equipment protection are critical.
Why Choose Labotemp Air Cooled Chiller LAC-209?
✓ 2.95 kW Cooling Capacity: Delivers reliable cooling for laboratory and industrial equipment
✓ Integrated Recirculating System: Built-in 20 L tank and circulation pump for stable coolant supply
✓ Advanced Equipment Protection: Multiple safety systems safeguard both chiller and connected instruments
| Model | LAC-209 |
|---|---|
| Water Tank Capacity | 20 L |
| Temperature Range | 5°C to 35°C |
| Power Supply | 1PH, 120V, 60Hz |
| Input Power | 1.38 kW |
| Refrigerant | R410A |
| Compressor Power | 0.95 kW |
| Condenser Airflow Rate | 17 CMM |
| Evaporator Type | Plate Type |
| Water Flow Rate | 0.5 m³/h |
| Inlet/Outlet Pipe Diameter | PT (1/2 |
| Water Pump Power | 0.37 kW |
| Water Pump Head | 20 m |
| Chilled Water Inlet/Outlet Temperature Difference | 3°C to 8°C |
| Temperature Sensor | Yes |
| Communication Interface | RS232 |
| Remote Start Function | Yes |
| Conductivity Monitoring Module | Customized Cooling Water Conductivity Monitoring Module |
| Condenser Type | High-Efficiency Copper Tube Aluminum Fin with Low-Noise External Fan |
| Compressor Type | Hermetic Scroll Type |
| Expansion Valve | External Equalizing Pressure Expansion Valve |
| Cooling Capacity | 2.95 kW |
| Dimensions (W × D × H) | 550 × 440 × 750 mm |
| Net Weight | 72kg |
| Gross Weight | 113kg |
| Packing Size | 770×600×1120 mm |
LAC-209 is suitable for recirculating temperature control for analytical instruments, rotary evaporators, reactors, laser systems, condensers, freeze dryers, spectroscopy equipment, and pilot-scale process setups. Suitable for pharmaceutical, biotechnology, research, academic, chemical, and industrial laboratories requiring stable chilled water circulation, equipment protection, remote monitoring, and continuous heat removal for precision testing, process control, and quality assurance operations.
