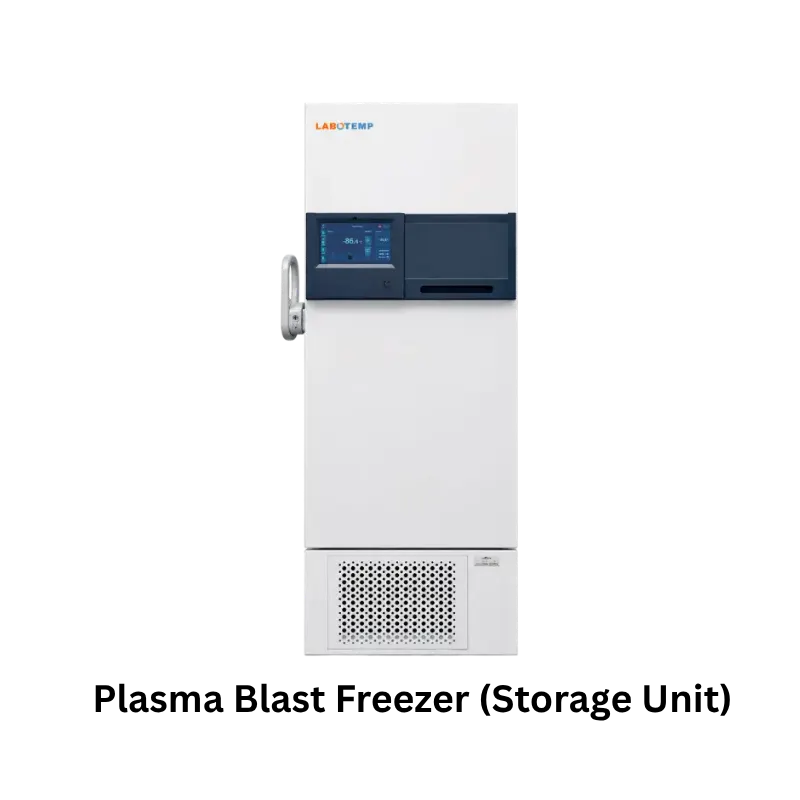

Labotemp Plasma Blast Freezer ULF-31 combines a 425 L ultra-low temperature plasma freezer with a dedicated 17 L rapid blast freezing unit, providing a complete solution for fast freezing and long-term preservation of blood plasma and other temperature-sensitive biological materials. The plasma freezer maintains a stable storage temperature from -40°C to -86°C using forced-air cooling, dual compressors, an electronic controller, and a high-precision PT1000 sensor. Constructed with a SUS304 stainless steel interior, eco-friendly R290/R170 refrigerants, and a digital temperature display, it delivers dependable storage performance for blood banks, plasma collection centers, hospitals, research laboratories, and GMP-regulated facilities.
The integrated quick-freezing unit rapidly extracts heat from freshly collected plasma before transferring it to the storage chamber, helping preserve coagulation factors and other sensitive biological components. This auxiliary system features a 17 L circulating fluid capacity, operates from -80°C to room temperature, and utilizes a dual-compressor refrigeration system with a key-type microcontroller, PT100 sensor, LCD display, and high-capacity copper tube and aluminum fin heat exchanger for efficient heat transfer. The complete system includes VIP vacuum insulation, multiple safety alarms for temperature, sensor, and door status, corrosion-resistant construction, and energy-efficient operation, providing reliable performance for continuous clinical and laboratory use.
Why Choose Labotemp Plasma Blast Freezer ULF-31?
✓ Integrated Dual-Unit System: 425 L plasma freezer with a dedicated 17 L rapid blast freezing module.
✓ Fast Freezing & Stable Storage: Rapidly freezes plasma before maintaining temperatures from -40°C to -86°C.
✓ Built for Clinical Applications: SUS304 stainless steel interior, VIP insulation, eco-friendly refrigerants, and comprehensive safety alarms for reliable long-term operation.
| No. | Specification | Value |
|---|---|---|
| Plasma Blast Freezer (Storage Unit) | ||
| 1 | Storage Capacity | 425 L |
| 2 | Temperature Range(Plasma Blast Freezer ) | -40°C to -86°C |
| 3 | Temperature Sensor(Plasma Blast Freezer ) | PT1000 |
| 4 | Temperature Controller(Plasma Blast Freezer ) | Electronic |
| 5 | Cooling Mode | Forced Air Cooling |
| 6 | Cooling Liquid(Plasma Blast Freezer ) | Green Refrigerants (R290/R170) |
| 7 | Compressor(Plasma Blast Freezer ) | 2 pcs |
| 8 | Shelves / Drawers(Plasma Blast Freezer ) | 3 pcs |
| 9 | Refrigerant Charge(Plasma Blast Freezer ) | 178 g |
| 10 | Rated Power(Plasma Blast Freezer ) | 650 W |
| 11 | Daily Power Consumption(Plasma Blast Freezer ) | 7.85 kWh/24h |
| 12 | Noise Level(Plasma Blast Freezer ) | 45 dB |
| 13 | Display(Plasma Blast Freezer ) | Digital Temperature Display |
| 14 | Interior Material(Plasma Blast Freezer ) | SUS304 Stainless Steel |
| 15 | Exterior Material(Plasma Blast Freezer ) | Zinc-Iron Alloy with Spray Coating |
| 16 | Alarm Functions(Plasma Blast Freezer ) | High/Low Temperature, Sensor Error, Door Ajar |
| 17 | Power Supply(Plasma Blast Freezer ) | AC 220/110 V, 50/60 Hz |
| 18 | Exterior Dimensions (W × D × H)(Plasma Blast Freezer ) | 750 × 988 × 2187 mm |
| 19 | Package Dimensions (W × D × H)(Plasma Blast Freezer ) | 840 × 1120 × 2280 mm |
| 20 | Net / Gross Weight(Plasma Blast Freezer ) | 365 / 405 kg |
| Quick-Freezing Unit | ||
| 21 | Circulating Fluid Volume | 17 L |
| 22 | Temperature Range(Quick-Freezing Unit) | -80°C to Room Temperature |
| 23 | Temperature Sensor(Quick-Freezing Unit) | PT100 |
| 24 | Temperature Controller(Quick-Freezing Unit) | Key-Type Microcontroller |
| 25 | Cooling Liquid(Quick-Freezing Unit) | R404 / R23 |
| 26 | Compressor(Quick-Freezing Unit) | 2 pcs |
| 27 | Display(Quick-Freezing Unit) | LCD |
| 28 | Heat Exchanger Material | Copper Tube + Aluminum Fin |
| 29 | Rated Power(Quick-Freezing Unit) | 4.9 kW |
| 30 | Noise Level(Quick-Freezing Unit) | 70–90 dB |
| 31 | Alarm Functions(Quick-Freezing Unit) | High Temperature Alert, Sensor Fault Alert |
| 32 | Power Supply(Quick-Freezing Unit) | AC 380 V, 50/60 Hz |
| 33 | Exterior Dimensions (W × D ×H)(Quick-Freezing Unit) | 810 × 710 × 1250 mm |
| 34 | Package Dimensions (W × D × H)(Quick-Freezing Unit) | 900 × 800 × 1430 mm |
| 35 | Net / Gross Weight(Quick-Freezing Unit) | 220 / 260 kg |
Blood Plasma Preservation:
Rapidly freezes and preserves fresh frozen plasma (FFP) to maintain the integrity of coagulation factors and other temperature-sensitive blood components.
Blood Banks & Transfusion Centers:
Supports plasma processing and long-term storage in blood banks, transfusion departments, and plasma collection facilities.
Clinical & Hospital Laboratories:
Provides reliable ultra-low temperature storage for plasma, biological specimens, and diagnostic samples used in clinical testing.
Biomedical Research:
Enables rapid freezing and secure preservation of biological samples for life science, biotechnology, and medical research applications.
Vaccine & Biopharmaceutical Storage:
Suitable for preserving temperature-sensitive vaccines, biological products, and pharmaceutical materials requiring controlled ultra-low temperature storage.
Long-Term Sample Biobanking:
Designed for biobanks and research institutions requiring dependable long-term preservation of valuable biological specimens under stable ultra-low temperature conditions.
