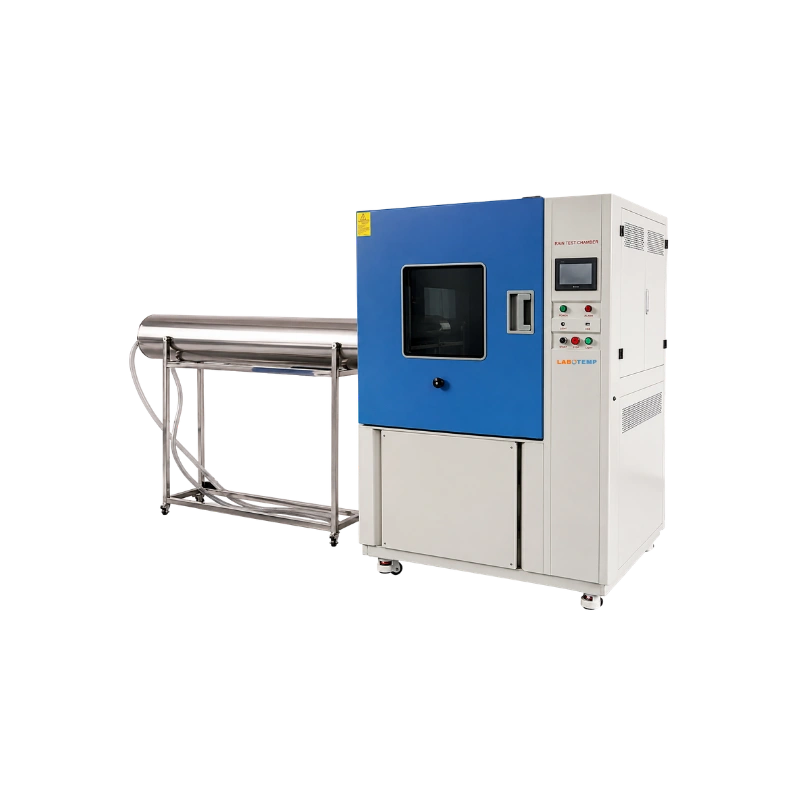

Labotemp Water Jetting Test Chamber LSC-04 is intended for IPX5 and IPX6 protection testing according to IEC 60529. Its 1000 L working chamber provides ample space for larger electrical enclosures, automotive components, outdoor equipment, lighting products, industrial instruments, and other products exposed to powerful water jets. A 600 mm diameter turntable and 2400 mm water jetting tube provide controlled test coverage, while dedicated 6.3 mm and 12.5 mm nozzles support IPX5 and IPX6 testing respectively. Adjustable turntable rotation from 0–7 r/min enables flexible specimen positioning during testing.
Built for dependable laboratory and quality-control environments, the LSC-04 features a programmable colour LCD touch-screen controller with Ethernet connectivity for convenient operation and monitoring. Its integrated water supply system incorporates a water tank, booster pump, automatic water supply, and water purification system to support consistent testing and efficient water use. The SUS304 stainless-steel interior offers corrosion resistance, while the coated steel exterior provides durable construction. A double-layer insulating observation window with wiper provides clear visibility throughout the test.
Why Choose Labotemp Water Jetting Test Chamber LSC-04?
✓Large 1000L Capacity: Accommodates larger products and assemblies for comprehensive testing.
✓IPX5 & IPX6 Testing: Dedicated nozzles provide controlled water-jet exposure.
✓Flexible Operation: Adjustable turntable rotation from 0–7 r/min.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Interior Volume | 1000 L |
| 2 | Power Supply | AC 380 V, 50 Hz |
| 3 | Controller | Programmable color LCD touchscreen controller, Ethernet connection |
| Test Parameters | ||
| 4 | Protection Test | IPX5 and IPX6 |
| 5 | Diameter of Turntable | 600 mm |
| 6 | Water Jetting Tube | 2400 mm |
| 7 | Turntable Rotation Speed | 0–7 r/min (Adjustable) |
| 8 | Internal Diameter of IPX5 Nozzle | 6.3 mm |
| 9 | Internal Diameter of IPX6 Nozzle | 12.5 mm |
| 10 | Water Flow Rate for IPX5 / IPX6 | 12.5 L/min ±5% / 100 L/min ±5% |
| Operation | ||
| 11 | Water Supply System | Water tank, booster pump, automatic water supply, water purification system |
| 12 | Water Jetting Method | Water jetting through IPX5 and IPX6 nozzles |
| 13 | Turntable | Rotating turntable with adjustable speed |
| Safety & Construction | ||
| 14 | Safety Protection | Over-temperature, over-current, water shortage, earth leakage, and phase-sequence protection |
| 15 | Exterior Material | Steel plate with protective coating |
| 16 | Interior Material | SUS 304 stainless steel |
| 17 | Observation Window | Double-layer insulating glass with wiper |
| Physical Dimensions | ||
| 18 | External Dimensions (W × D × H) | 1300 × 3950 × 1770 mm |
| 19 | Workroom Dimensions (W × D × H) | 1000 × 1000 × 1000 mm |
Electrical Enclosure Testing:Evaluates the resistance of large electrical enclosures against high-pressure water jets.
Automotive Component Testing:Tests automotive components and assemblies for resistance to powerful water exposure.
Outdoor Equipment Testing:Verifies the water ingress protection of equipment designed for demanding outdoor environments.
Lighting Equipment Testing:Evaluates water protection performance of outdoor luminaires, lighting assemblies, and electrical fixtures.
Electronic Equipment Testing:Tests larger electronic devices and equipment against IPX5 and IPX6 water exposure.
IP Protection Testing:Supports IPX5 and IPX6 water ingress protection evaluation according to IEC 60529 requirements.
Product Development:Helps manufacturers validate enclosure designs and improve water resistance before production.
Quality Control & Inspection: Provides repeatable water jet testing for product qualification, inspection, and quality assurance.
