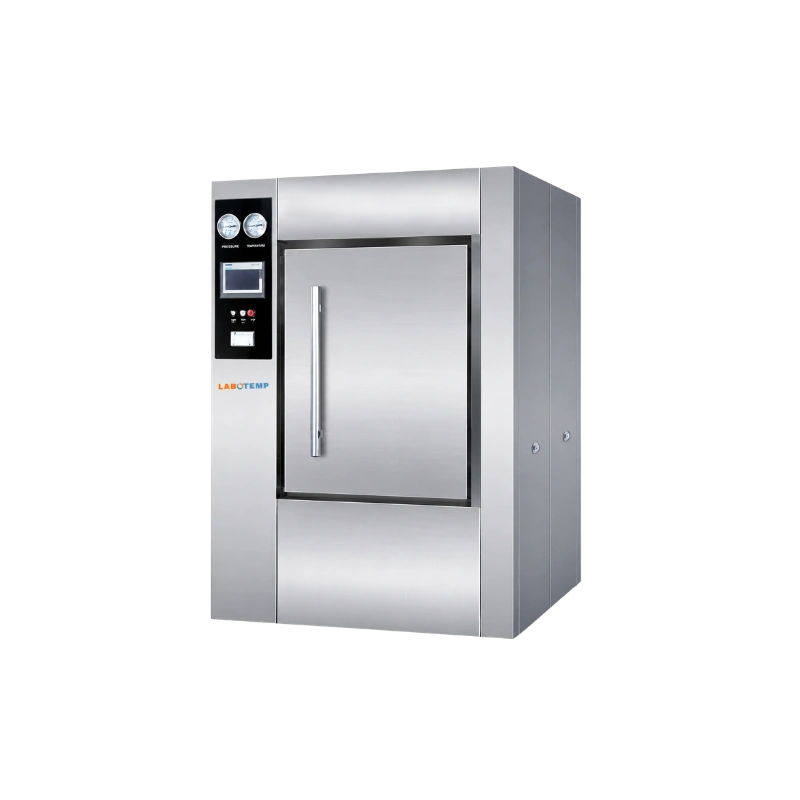

Horizontal Steam Sterilizer HZA-06

Name: Horizontal Steam Sterilizer HZA-06
Brand: Labotemp
SKU: HZA-06
Price: 26360.00 USD
Availability: InStock
Rating: 4.9 (963 reviews)

Labotemp Horizontal Steam Sterilizer HZA-06 is Designed for reliable steam sterilization in hospitals, laboratories, pharmaceutical facilities, research institutions, and other professional healthcare environments, this horizontal autoclave uses saturated steam under pressure to achieve effective sterilization of heat- and moisture-resistant materials. With a 600 L chamber, working temperature of 115–138°C, working pressure of 0.23 MPa, and vacuum capability down to -0.086 MPa, it is suitable for sterilizing instruments, glassware, culture media, liquids, fabrics, and other laboratory or medical loads. The horizontal configuration provides practical loading access and supports efficient processing of larger batches.

Built for dependable long-term operation, the autoclave machine combines HMI touch-screen and PLC control for automatic temperature and pressure management, process recording, and programmable sterilization cycles. The double-layer chamber structure and low-failure-rate door-locking system support safe operation, while multiple safety protections help safeguard users and equipment. High-quality stainless-steel pipes and clamp-type quick-installation fittings enhance durability and maintenance convenience. Automatic control, sterilization process monitoring, and optional process customization make this horizontal autoclave a practical choice for demanding sterilization workflows.

Why Choose Labotemp Horizontal Steam Sterilizer?

✓ High-Capacity Sterilization: 600 L chamber for larger laboratory and healthcare loads.
✓ Stable Steam Processing: 115–138°C working temperature and 0.23 MPa pressure.
✓ Intelligent Control: HMI touch-screen and PLC-based automatic operation.

$26360

Datasheet

General Specifications
Sterilizer Type : Horizontal Steam Sterilizer Sterilizer Type	Horizontal Steam Sterilizer
Capacity : 600 L Capacity	600 L
Working Temperature : 115–138°C Working Temperature	115–138°C
Sterilization Temperature : 121°C Sterilization Temperature	121°C
Working Pressure : 0.23 MPa Working Pressure	0.23 MPa
Design Pressure : -0.1–0.3 MPa Design Pressure	-0.1–0.3 MPa
Design Temperature : 150°C Design Temperature	150°C
Vacuum : -0.086 MPa Vacuum	-0.086 MPa
Temperature Uniformity : ≤ ±2.0°C Temperature Uniformity	≤ ±2.0°C
Chamber Dimensions (L × W × H) : 1190 × 610 × 910 mm Chamber Dimensions (L × W × H)	1190 × 610 × 910 mm
Chamber Configuration : Horizontal Rectangular Chamber Chamber Configuration	Horizontal Rectangular Chamber
Chamber Construction : Double-Layer Structure Chamber Construction	Double-Layer Structure
Chamber Material : 316 Stainless Steel Chamber Material	316 Stainless Steel
Door Type : Automatic Double-Door System Door Type	Automatic Double-Door System
Sterilization & Drying : Automatic Sterilization and Drying Cycles Sterilization & Drying	Automatic Sterilization and Drying Cycles
Electrical Parameters
Power Supply : AC 380 V, 50 Hz Power Supply	AC 380 V, 50 Hz
Power : ≤50 kW Power	≤50 kW
Steam Consumption : ≤30 kg Steam Consumption	≤30 kg
Water Consumption : ≤210 kg Water Consumption	≤210 kg
Compressed Air Pressure : 0.4–0.7 MPa Compressed Air Pressure	0.4–0.7 MPa
External Steam Pressure : 0.3–0.7 MPa External Steam Pressure	0.3–0.7 MPa
Water Source Pressure : 0.1–0.2 MPa Water Source Pressure	0.1–0.2 MPa
Steam Generation : Built-in Saturated Steam Generator Steam Generation	Built-in Saturated Steam Generator
Vacuum System : Vacuum Pump System Vacuum System	Vacuum Pump System
Control Parameters
Control System : PLC Control Control System	PLC Control
User Interface : HMI Touch Screen User Interface	HMI Touch Screen
Parameter Setting : Interactive Program Selection & Parameter Setting Parameter Setting	Interactive Program Selection & Parameter Setting
Process Monitoring : Temperature and Pressure Monitoring Process Monitoring	Temperature and Pressure Monitoring
Sterilization Programs : Programmable, Adjustable Cycles Sterilization Programs	Programmable, Adjustable Cycles
Safety Control : Multi-Level Safety Protection Safety Control	Multi-Level Safety Protection
Sterilization Testing : Bowie-Dick Sterilization Testing	Bowie-Dick
Data & Traceability : Sterilization Process Recording Data & Traceability	Sterilization Process Recording
Packaging Parameters
Overall Dimensions (L × W × H) : 1440 × 1310 × 1900 mm Overall Dimensions (L × W × H)	1440 × 1310 × 1900 mm
Gross Weight : 1440 kg Gross Weight	1440 kg
Net Weight : 1240 kg Net Weight	1240 kg

115–138°C Working Range ➤ 115–138°C Working Range
600 L for high-volume sterilization workflows. ➤ 600 L for high-volume sterilization workflows.
121°C and 134°C for different load requirements. ➤ 121°C and 134°C for different load requirements.
0.23 MPa for effective saturated steam sterilization. ➤ 0.23 MPa for effective saturated steam sterilization.
Down to -0.086 MPa for improved air removal and steam penetration. ➤ Down to -0.086 MPa for improved air removal and steam penetration.
Enables convenient program selection and parameter setting. ➤ Enables convenient program selection and parameter setting.
Ensures reliable and precise sterilization cycle management. ➤ Ensures reliable and precise sterilization cycle management.
Supports controlled loading and unloading. ➤ Supports controlled loading and unloading.
Designed for reliable and safe operation. ➤ Designed for reliable and safe operation.
Provides a stable supply of saturated steam. ➤ Provides a stable supply of saturated steam.
Reduces manual intervention and simplifies operation. ➤ Reduces manual intervention and simplifies operation.
Protects against over-temperature, over-pressure, and operational faults. ➤ Protects against over-temperature, over-pressure, and operational faults.
Prevents unsafe door operation during pressurized cycles. ➤ Prevents unsafe door operation during pressurized cycles.
Helps protect the steam generation system from low-water conditions. ➤ Helps protect the steam generation system from low-water conditions.
Enhances operational safety. ➤ Enhances operational safety.
High-quality chamber and piping provide corrosion resistance and long-term durability. ➤ High-quality chamber and piping provide corrosion resistance and long-term durability.

Hospital & Central Sterile Supply Departments: Suitable for high-volume sterilization of compatible surgical instruments, dressing materials, glassware, and reusable medical equipment requiring validated steam processing Hospital & Central Sterile Supply Departments
Suitable for high-volume sterilization of compatible surgical instruments, dressing materials, glassware, and reusable medical equipment requiring validated steam processing
Pharmaceutical Manufacturing: Supports sterilization of compatible production materials, laboratory equipment, containers, and heat- and moisture-resistant components in pharmaceutical processing environments Pharmaceutical Manufacturing
Supports sterilization of compatible production materials, laboratory equipment, containers, and heat- and moisture-resistant components in pharmaceutical processing environments
Microbiology & Research Laboratories: Suitable for sterilizing laboratory glassware, culture media, instruments, biological materials, and other compatible laboratory loads Microbiology & Research Laboratories
Suitable for sterilizing laboratory glassware, culture media, instruments, biological materials, and other compatible laboratory loads
Healthcare Facilities: Designed for routine sterilization of compatible medical and surgical materials requiring vacuum-assisted steam penetration and controlled drying Healthcare Facilities
Designed for routine sterilization of compatible medical and surgical materials requiring vacuum-assisted steam penetration and controlled drying
Biotechnology & Life Science Facilities: Supports sterilization workflows involving culture media, laboratory instruments, glassware, and other reusable materials Biotechnology & Life Science Facilities
Supports sterilization workflows involving culture media, laboratory instruments, glassware, and other reusable materials
Industrial Applications: Suitable for compatible rubber components, laboratory accessories, containers, and heat- and moisture-resistant industrial materials Industrial Applications
Suitable for compatible rubber components, laboratory accessories, containers, and heat- and moisture-resistant industrial materials
High-Volume Sterilization: The 600 L chamber is well suited to facilities requiring bulk-load processing, programmable cycles, integrated drying, and reliable process documentation High-Volume Sterilization
The 600 L chamber is well suited to facilities requiring bulk-load processing, programmable cycles, integrated drying, and reliable process documentation
