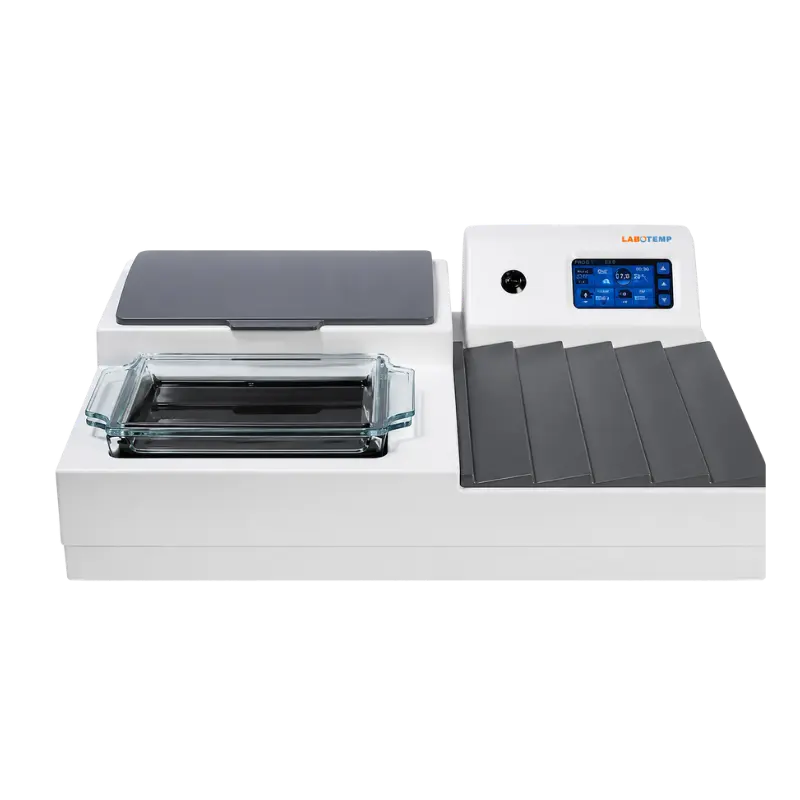

Labotemp Histology Tissue Water Bath with Slide Dryer LTB-102 streamlines tissue section preparation by integrating a tissue water bath, slide dryer, and baking oven into a single compact workstation. Designed for histopathology laboratories, hospitals, medical colleges, research institutes, and diagnostic centers, the system provides independent temperature control for each working zone, with an adjustable range of 0°C to 75°C. The 2.5 L tissue water bath gently flattens paraffin sections before mounting, while the integrated slide dryer accommodates up to 60 microscope slides for efficient drying and baking prior to staining. A precision temperature control system maintains ±1°C accuracy, ensuring consistent sample preparation and dependable laboratory performance.
Built for reliable daily operation, the LTB-102 features an intuitive LCD touch screen with programmable start/stop scheduling for up to one week, countdown reminders, and independent control of the water bath, slide dryer, and oven. Computer and hardware dual temperature protection help safeguard valuable tissue specimens, while the integrated LED illumination improves visibility when handling floating tissue sections. Adjustable screen and lighting brightness, multiple baking modes, and a durable benchtop design support efficient workflows in high-volume pathology laboratories. Combining accurate temperature control, user-friendly operation, and versatile functionality, the LTB-102 offers a practical solution for preparing high-quality tissue sections for microscopic examination.
Why Choose Labotemp Histology Tissue Water Bath with Slide Dryer LTB-102?
✓ 3-in-1 Workstation: Combines tissue water bath, slide dryer, and baking oven in one compact unit.
✓ Independent Temperature Control: Separate control for each heating zone with ±1°C accuracy.
✓ High Sample Capacity: Accommodates up to 60 microscope slides for efficient laboratory workflows.
| No. | Specification | Value |
|---|---|---|
| Temperature & Performance | ||
| 1 | Water Bath Temperature Range | 0°C – 75°C (0°C – 99°C Optional) |
| 2 | Slide Dryer Temperature Range | 0°C – 75°C (0°C – 99°C Optional) |
| 3 | Oven Temperature Range | 0°C – 75°C (0°C – 99°C Optional) |
| 4 | Temperature Accuracy | ±1°C |
| 5 | Timing Range | Programmable up to 1 Week |
| 6 | Working Temperature | 0°C – 40°C |
| 7 | Operating Humidity | ≤80% RH |
| Electrical & Compliance | ||
| 8 | Power Supply | AC 220V ±10%, 50Hz |
| 9 | Power Consumption | 600 VA |
| 10 | Fuse Rating | 10 A |
| Design & Capacity | ||
| 11 | Slide Capacity | Up to 60 Slides |
| 12 | Tissue water bath capacity | 2.5 L |
| 13 | Display | LCD Touch Screen |
| 14 | Control System | Independent Three-Zone Temperature Control |
| 15 | Lighting | Bottom LED Illumination with Adjustable Brightness |
| 16 | Overall Dimensions | 570 × 430 × 180 mm |
| 17 | Water Bath Tank Size | 210 × 170 × 55 mm |
| 18 | Net Weight | 14kg |
| 19 | Gross Weight | 20kg |
| 20 | Package Size | 640 × 500 × 250 mm |
Histopathology Laboratories:
Supports tissue section floating, drying, and baking for accurate histological sample preparation.
Hospitals & Diagnostic Centres:
Enables efficient preparation of pathology slides for routine clinical diagnosis and laboratory workflows.
Medical Colleges & Universities:
Suitable for practical training and teaching in histology, pathology, and biomedical laboratory courses.
Research Institutes:
Provides controlled heating for tissue processing in biomedical, life science, and translational research.
Pharmaceutical & Biotechnology:
Assists in tissue sample preparation for preclinical studies, quality control, and research applications.
Food Testing Laboratories:
Useful for preparing biological specimens for microscopic examination during food safety and analytical testing.
