Labotemp Floor Standing Refrigerated Centrifuge LRC-105 is a floor standing refrigerated centrifuge designed for laboratories that require reliable low-speed separation with stable temperature control. This refrigerated centrifuge machine operates up to 6000 rpm with a maximum RCF of 6080 × g, making it suitable for routine clinical workflows such as blood component separation, plasma preparation, and biological sample processing. The integrated refrigeration system maintains temperatures from -20°C to 40°C with ±1°C accuracy, helping preserve sample integrity during centrifugation.

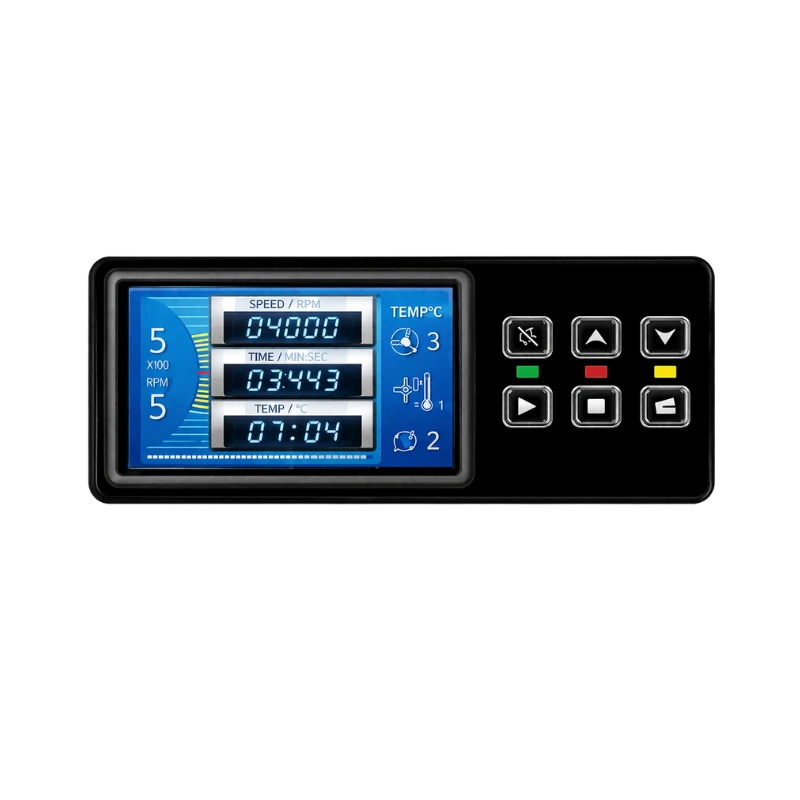

Built for continuous laboratory operation, the LRC-105 blood centrifuge features a frequency converter motor and microprocessor control system that ensures stable speed regulation and energy-efficient performance. The touch LCD interface allows precise control of speed, timer, and acceleration or deceleration profiles for consistent processing results. Safety features include automatic rotor identification, active imbalance detection with automatic shutdown, motorized lid locking, and over-speed protection, ensuring dependable operation during routine laboratory use.
Why Choose Labotemp Floor Standing Refrigerated Centrifuge LRC-105
✓ Optimized for Blood Processing: Handles up to 168 blood tubes, ideal for blood bank and transfusion laboratory workflows
✓Certified reliability: ISO and CE compliant design ensures safe and dependable operation.
✓ Centrifuge Manufacturer: Labotemp designs laboratory centrifuges built for precision performance, operational safety, and long-term reliability
|
Maximum Capacity : 4 × 1000 ml Maximum Capacity |
4 × 1000 ml |
|
Maximum Speed : 6000 rpm Maximum Speed |
6000 rpm |
|
Maximum RCF : 6080 × g Maximum RCF |
6080 × g |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Power Supply : AC 220V, 50 Hz, 10 A Power Supply |
AC 220V, 50 Hz, 10 A |
|
Power Consumption : 1800 W Power Consumption |
1800 W |
|
Motor Type : Frequency converter motor Motor Type |
Frequency converter motor |
|
Control System : Microprocessor control Control System |
Microprocessor control |
|
Display : LCD screen Display |
LCD screen |
|
Timer Range : 1 – 99 h 59 min 59 sec Timer Range |
1 – 99 h 59 min 59 sec |
|
Acceleration / Deceleration : 1 – 10 levels Acceleration / Deceleration |
1 – 10 levels |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Noise Level : ≤58 dB(A) Noise Level |
≤58 dB(A) |
|
Dimensions (L×W×H) : 690 × 590 × 835 mm Dimensions (L×W×H) |
690 × 590 × 835 mm |
|
Net Weight : 150 kg Net Weight |
150 kg |
|
Gross Weight : 200kg Gross Weight |
200kg |
|
Package Size : 850x795x585mm Package Size |
850x795x585mm |
| No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type |
|---|---|---|---|---|---|
| 1 | Angle Rotor with Adapter | 12 × 15 ml / 10 ml / 5 ml; Adapter: 12 × 2 ml | 6000 r/min | 6080 × g | PP / PC Tubes |
| 2 | Swing Rotor with Adapters | 4 × 1000 ml; Adapter: 4 × 50 ml / 4 × 15/10 ml / 4 × 2×100 ml / 4 × 15/10 ml / 4 × 25×5/2 ml | 5000 r/min | 4752 × g | PP / PC Tubes |
| 3 | Swing Rotor with Adapters | 4 × 2 × 100 ml; Adapter: 4 × 25×15/10 ml / 4 × 15×10/5 ml / Rack: 4 × 12×5/2 ml | 4000 r/min | 3041 × g | PP / PC Tubes / Vacuum tubes |
| 4 | Swing Rotor | 72 × 5/2 ml | 4000 r/min | 2773 × g | Vacuum blood collection tubes |
| 5 | Swing Bucket with Adapters | 4 × 600 ml; Adapter: 4 × 25×5/2 ml / 4 × 12×15/10 ml / 4 × 5×50 ml / 4 × 100 ml | 4000 r/min | 3354 × g | PP / PC Tubes / Square cup |
| 6 | Swing Bucket with Adapters | 6 × 500 ml; Adapter: 6 × 25×5/2 ml / 6 × 12×15/10 ml / 6 × 5×50 ml / 6 × 4×100 ml | 4000 r/min | 3400 × g | PP / PC Tubes / Square cup |
| 7 | Swing Bucket with Adapters | 4 × 500 ml; Adapter: 4 × 17×5/2 ml / 4 × 8×15/10 ml / 4 × 3×50 ml / 4 × 100 ml | 4000 r/min | 3354 × g | PP / PC Tubes / Round cup |
| 8 | Swing Bucket with Adapters | 6 × 500 ml; Adapter: 6 × 17×5/2 ml / 6 × 8×15/10 ml / 6 × 3×50 ml / 6 × 100 ml | 4000 r/min | 3400 × g | PP / PC Tubes / Round cup |
| 9 | Swing Bucket with Adapters | 4 × 800 ml; Adapter: 4 × 30×5/2 ml / 4 × 16×15/10 ml / 4 × 6×50 ml / 4 × 4×100 ml | 4000 r/min | 3443 × g | PP / PC Tubes / Round cup |
| 10 | Swing Bucket with Adapters | 4 × 750 ml; Adapter: 4 × 26×5/2 ml / 4 × 13×15/10 ml / 4 × 5×50 ml / 4 × 3×100 ml | 4000 r/min | 3443 × g | PP / PC Tubes / Round cup |
| 11 | Swing Bucket with Adapters | 4 × 1000 ml; Adapter: 4 × 24×5/2 ml / 4 × 23×15/10 ml / 4 × 7×50 ml / 4 × 4×100 ml | 4000 r/min | 3578 × g | PP / PC Tubes / Oval cup |
| 12 | Swing Bucket with Adapters | 4 × 1000 ml; Adapter: 4 × 26×5/2 ml / 4 × 13×15/10 ml / 4 × 5×50 ml / 4 × 3×100 ml | 4000 r/min | 3578 × g | PP / PC Tubes / Round cup |
| 13 | Microplate Rotor with Adapter | 4 × 2 × 96 well; Adapter: 4 × 32 × 1.5 ml | 4200 r/min | 3057 × g | PP / PC Tubes / Microplates |
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C (1°C steps)
Temperature Control: PID dynamic control
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Refrigerant: R-22
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 h 59 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Timer Range: 1 – 99 min 59 sec
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
Voltage : AC 220V, 50 Hz
Timer Range: 0 – 99 h 59 min adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Timer Range: 1 – 99 min 59 sec adjustable
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±20 r/min
User Management: Multi-level authority management system
USB Interface: Supported for data export and system upgrade
Touch Screen Size: 10-inch LCD touch screen
Timer Range: 1 s – 99 h 59 min or continuous run
Weight: 74 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Weight: 42 kg
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -20°C to 40°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: -9°C to +35°C
Temperature Accuracy: ±1°C
Voltage: AC 220V
Time Range: 1–99 min 59 sec
Temperature Range: Down to -20°C
Temperature Accuracy: ±1°C
Timing Range: 1 s ~ 17 h : 59 min : 59 s / Jog
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Speed Accuracy: ±10 rpm
Time Control: 1 sec – 99 min 59 sec adjustable
Temperature Range: -20°C ~ 40°C
Temperature Control Accuracy: ±1°C
Speed Accuracy: ±10 r/min
