Anaerobic Incubator ANI-02

A4 preview · Your PDF uses these same pages.

Anaerobic Incubator ANI-02
Product Catalog

Anaerobic Incubator ANI-02

ANI-02

Get to know

Why choose
Anaerobic Incubator ANI-02?

  1. 1
    Advanced Contamination Control
  2. 2
    Large Color Touchscreen with Microprocessor Control
  3. 3
    High-Precision Temperature and Oxygen Sensors
ANI-02

Anaerobic Incubators

Anaerobic Incubator ANI-02
Anaerobic Incubator ANI-02
Overview

Product
Description

Product overview

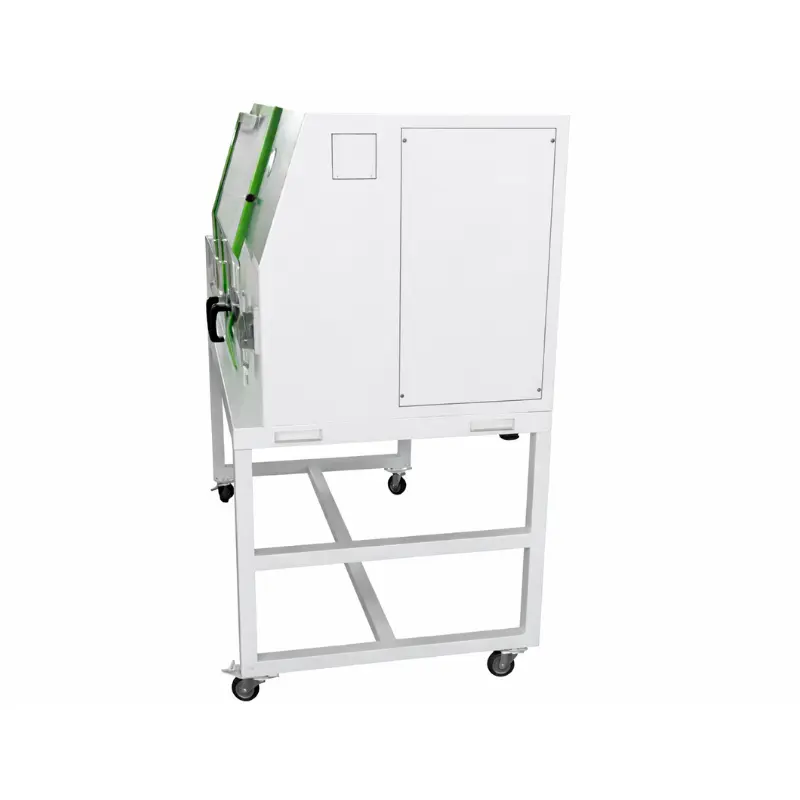

Anaerobic Incubator ANI-02

Labotemp Anaerobic Incubator ANI-02 provides a controlled oxygen-free environment for cultivating and handling anaerobic microorganisms in microbiology and research laboratories. Its temperature range of room temperature +3°C to 60°C, temperature stability of ±0.3°C, and uniformity of ±1°C support consistent incubation conditions. The microprocessor controller with a large color touchscreen simplifies operation, while integrated temperature and oxygen sensors enable monitoring of key chamber conditions. The system establishes anaerobic conditions in the sample chamber in under 5 minutes and in the operation chamber in under 1 hour, supporting efficient laboratory workflows.

The ANI-02 features stainless-steel cultivation and operation chambers, an impact-resistant transparent front window, and comfortable integrated latex gloves for sample handling. A UV sterilizer and deoxidization catalyst help manage contamination and oxygen within the system. Solenoid valve controls allow adjustment of gas flow, while an imported oxygen sensor monitors oxygen concentration in the operation chamber. Additional features include a special inoculating rod sterilizer, wax-melting disinfection device, USB data storage for up to six months, an overheating alarm, and leakage protection. The anaerobic environment can be maintained for over 12 hours without mixed-gas supply, supporting practical anaerobic culture procedures.

Why Choose Labotemp Anaerobic IncubatorANI-02?

✓ Rapid Anaerobic Setup: Creates anaerobic conditions in the sample chamber in under 5 minutes.
✓ Monitored Operating Conditions: Integrates temperature and oxygen sensors for process monitoring.
✓Contamination Management: Includes UV sterilization, a deoxidization catalyst, and specialized disinfection features.


Technical data · ANI-02

Complete Specifications

Anaerobic Incubator ANI-02
No.SpecificationValue
General Specifications
1Product TypeAnaerobic Incubator
2ModelANI-02
3Power Rating600 W
4Power SupplyAC 220 V, 50 Hz
5Timing Range1–9999 minutes
6Display Resolution0.1°C
Anaerobic Environment Control
7Time to Create Anaerobic State in Sample ChamberLess than 5 minutes
8Time to Create Anaerobic State in Operation ChamberLess than 1 hour
9Anaerobic Environment Maintenance TimeMore than 12 hours without mixed-gas supply
10Oxygen MonitoringImported oxygen sensor monitors oxygen concentration in the operation chamber
Temperature Control
11Temperature RangeRT +3°C to 60°C
12Temperature Stability±0.3°C
13Temperature Uniformity±1°C
14Temperature MonitoringHigh-precision temperature sensor
Chamber Dimensions
15Interior Chamber Size (W × D × H)30 × 19 × 29 cm
16Operation Chamber Size (W × D × H)82 × 66 × 67 cm
17Exterior Size (W × D × H)126 × 73 × 138 cm
Weight and Packaging
18Net Weight240 kg
19Gross Weight320 kg
20Package Size (W × D × H)139 × 92 × 156 cm
Control and Monitoring Features
21Control SystemMicroprocessor controller
22DisplayLarge color touchscreen
23Temperature SensorHigh-precision sensor
24Oxygen SensorImported oxygen sensor
25Data StorageUSB interface; stores up to 6 months of data
Sterilization and Safety
26UV SterilizerIncluded
27Deoxidization CatalystIncluded
28Inoculating Rod SterilizerIncluded
29Wax-Melting Disinfection DeviceIncluded
30Overheating AlarmIncluded
31Leakage ProtectionIncluded
32Gas Flow ControlSolenoid valve control
Chamber Construction and Handling
33Chamber MaterialStainless steel
34Front WindowTransparent, impact-resistant glass
35Sample HandlingIntegrated latex gloves
36Door DesignDouble-widened door
What's included

Features

  1. 1
    Advanced Contamination Control
  2. 2
    Large Color Touchscreen with Microprocessor Control
  3. 3
    High-Precision Temperature and Oxygen Sensors
  4. 4
    Rapid Anaerobic Environment Creation
  5. 5
    Stable Temperature Control
  6. 6
    Real-Time Oxygen Concentration Monitoring
  7. 7
    UV Sterilization System
  8. 8
    Integrated Deoxidization Catalyst
  9. 9
    Inoculating Rod Sterilizer
  10. 10
    Wax-Melting Disinfection Device
  11. 11
    Adjustable Gas Flow via Solenoid Valve
  12. 12
    Stainless-Steel Cultivation and Operation Chambers
  13. 13
    Transparent Impact-Resistant Glass Viewing Window
  14. 14
    Integrated Latex Gloves for Sample Handling
  15. 15
    USB Data Storage for Up to Six Months
  16. 16
    Overheating Alarm and Leakage Protection
  17. 17
    Double-Widened Door Design
  18. 18

Where it's used

Applications

Anaerobic Microbiology: Supports the cultivation and handling of microorganisms requiring oxygen-free conditions.

Bacterial Culture Research: Provides a controlled anaerobic environment for laboratory bacterial culture procedures.

Clinical Microbiology Research: Supports laboratory investigations involving anaerobic microorganisms.

Pharmaceutical Research: Provides controlled incubation conditions for anaerobic microbiological studies.

Microbial Physiology Studies: Supports research examining the growth and behavior of microorganisms under anaerobic conditions.

Antimicrobial Research: Can support anaerobic culture workflows used in relevant antimicrobial investigations.

Anaerobic Incubator ANI-02

LET'S EQUIP
YOUR LABORATORY

View product online

+1 581 465 8405

www.labotemp.com · info@labotemp.com

144 E, Midwest Avenue, Casper WY 82601, USA

More about this product

Standard Accessories

  1. 1
    Latex gloves
  2. 2
    USB interface (data storage up to 6 months)
