V Blender LVB-101

Name: V Blender LVB-101
Brand: Labotemp
SKU: LVB-101
Price: 3664.00 USD
Availability: InStock
Rating: 4.9 (947 reviews)

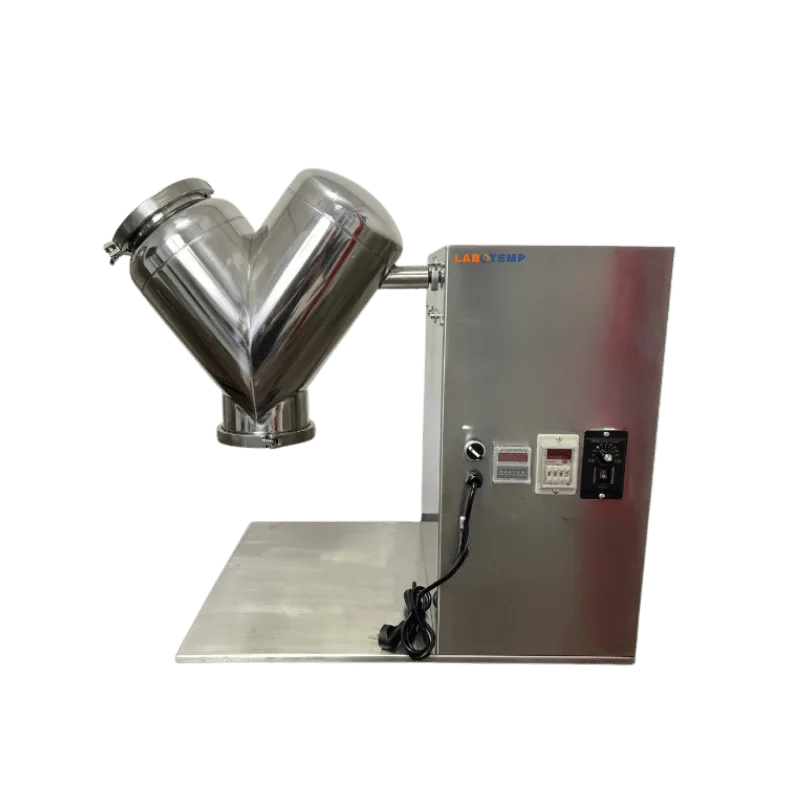

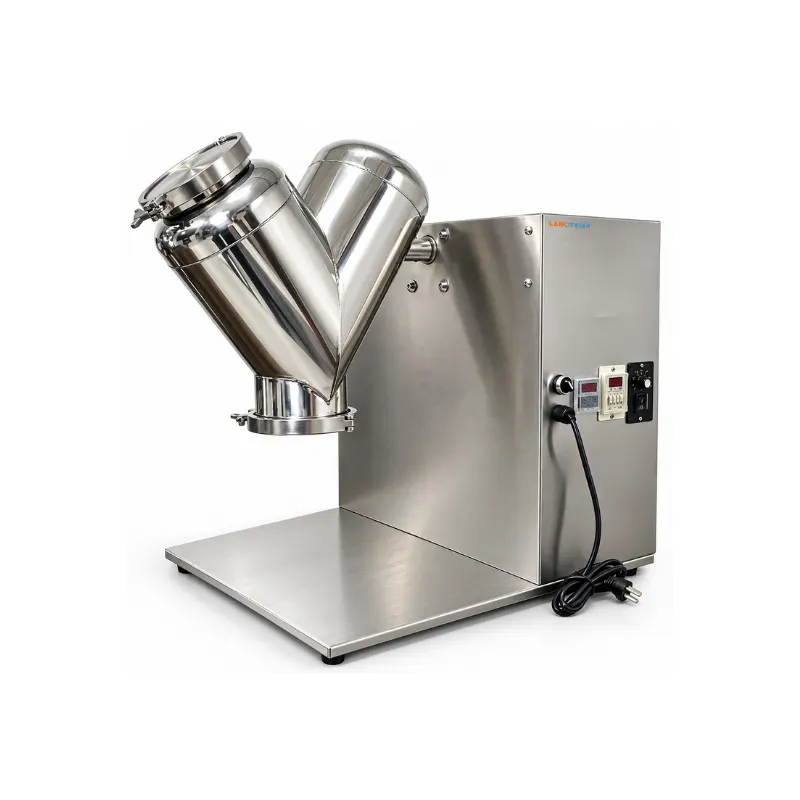

Labotemp V Blender LVB-101 provides controlled laboratory-scale mixing for powders, granules, and other compatible dry materials. Featuring a 5 L drum volume and 2.5 L working volume, this compact laboratory mixer uses a V-shaped vessel to promote material movement during rotation. The 0–30 r/min variable mixing speed allows users to adjust the mixing process according to their laboratory requirements. Its 304 stainless steel drum provides a durable material-contact surface, while the 201 stainless steel base and support frame provide structural support during operation. The V-shaped configuration makes the LVB-101 suitable for applications where a V shape mixer or twin shell blender design is required.

This V Blender incorporates timed automatic forward and reverse rotation, automatic stopping, and variable-speed operation for controlled mixing cycles. Its 133 mm drum diameter, and 700 × 300 × 625 mm machine dimensions provide a compact solution for laboratory-scale batch mixing. The controlled rotation and programmable operation make this V blender suitable for research, formulation development, and material preparation workflows where repeatable mixing conditions are required.

Why Choose Labotemp V Blender LVB-101?

✓ 2.5 L Working Volume: Provides a practical working capacity for small laboratory batches.
✓ 0–30 r/min Variable Speed: Allows controlled adjustment of the mixing speed for different materials and processes.
✓ 304 Stainless Steel Drum: Provides a durable stainless steel vessel for laboratory mixing applications.

$3664

Datasheet

General Specifications
Product Type : Laboratory V-Type Mixer / V Blender Product Type	Laboratory V-Type Mixer / V Blender
Drum Volume : 5 L Drum Volume	5 L
Working Volume : 2.5 L Working Volume	2.5 L
Mixing Speed : 0–30 r/min Mixing Speed	0–30 r/min
Drum Material : 304 Stainless Steel Drum Material	304 Stainless Steel
Base & Support Frame Material : 201 Stainless Steel Base & Support Frame Material	201 Stainless Steel
Drum Diameter : 133 mm Drum Diameter	133 mm
Mixing Function : Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed Mixing Function	Timed Forward & Reverse Rotation, Adjustable Direction Interval, Automatic Stop, Variable Speed
Electrical Specifications
Voltage : 220 V/ 110V Voltage	220 V/ 110V
Frequency : 50 Hz/ 60 Hz Frequency	50 Hz/ 60 Hz
Power : 180 W Power	180 W
Physical Specifications
Machine Dimensions : 700 × 300 × 625 mm Machine Dimensions	700 × 300 × 625 mm
Packaging Weight : 490 x 370 x 670 mm Packaging Weight	490 x 370 x 670 mm
Net Weight : 33Kg Net Weight	33Kg
Gross Weight : 43Kg Gross Weight	43Kg

Automatic Reverse Rotation ➤ Automatic Reverse Rotation
5 L drum volume supports laboratory-scale batch mixing. ➤ 5 L drum volume supports laboratory-scale batch mixing.
2.5 L working volume provides a practical capacity for small-batch material blending. ➤ 2.5 L working volume provides a practical capacity for small-batch material blending.
V-shaped mixing vessel supports controlled material movement during rotation. ➤ V-shaped mixing vessel supports controlled material movement during rotation.
0–30 r/min variable mixing speed allows adjustment of the mixing process. ➤ 0–30 r/min variable mixing speed allows adjustment of the mixing process.
Timed automatic forward rotation supports controlled mixing cycles. ➤ Timed automatic forward rotation supports controlled mixing cycles.
Automatic reverse rotation provides bidirectional material movement during programmed operation. ➤ Automatic reverse rotation provides bidirectional material movement during programmed operation.
Automatic stop function ends the mixing cycle after the set operation. ➤ Automatic stop function ends the mixing cycle after the set operation.
304 stainless steel drum provides a durable material-contact vessel. ➤ 304 stainless steel drum provides a durable material-contact vessel.
201 stainless steel base and support frame provide structural support. ➤ 201 stainless steel base and support frame provide structural support.
133 mm drum diameter provides the specified vessel configuration. ➤ 133 mm drum diameter provides the specified vessel configuration.
220 V, 50 Hz electrical configuration supports laboratory operation. ➤ 220 V, 50 Hz electrical configuration supports laboratory operation.
180 W power rating supports the specified mixing system. ➤ 180 W power rating supports the specified mixing system.

Laboratory Powder Mixing: Suitable for small-scale blending of compatible powders in laboratory workflows Laboratory Powder Mixing
Suitable for small-scale blending of compatible powders in laboratory workflows
Granule Blending: Supports laboratory-scale mixing of compatible granular materials Granule Blending
Supports laboratory-scale mixing of compatible granular materials
Pharmaceutical Research: Suitable for formulation development and laboratory research involving dry powder or granule blending Pharmaceutical Research
Suitable for formulation development and laboratory research involving dry powder or granule blending
Chemical Research: Supports controlled laboratory-scale mixing of compatible dry chemical materials Chemical Research
Supports controlled laboratory-scale mixing of compatible dry chemical materials
Material Research: Suitable for experimental workflows involving blending and preparation of dry materials Material Research
Suitable for experimental workflows involving blending and preparation of dry materials
Research & Development: Useful for small-batch material preparation and formulation development where controlled mixing is required Research & Development
Useful for small-batch material preparation and formulation development where controlled mixing is required
