Polypropylene Ducted Chemical Fume Hood LFH-104

Polypropylene Chemical Fume Hood side view

Polypropylene Ducted Chemical Fume Hood LFH-104

Name: Polypropylene Ducted Chemical Fume Hood LFH-104
Brand: Labotemp
SKU: LFH-104
Price: 4937.00 USD
Availability: InStock
Rating: 4.8 (791 reviews)

Labotemp Polypropylene Ducted Chemical Fume Hood LFH-104 provides a corrosion resistant laboratory workspace for handling chemicals that generate fumes, vapors, or odors. Designed around an 8 mm porcelain white polypropylene main body, the LFH-104 configuration features an 1847 × 800 × 2450 mm external size, 1587 × 560 × 700 mm internal working area, 0.3 to 0.8 m/s adjustable air velocity, and a maximum front window opening of 740 mm. The ducted design supports removal of contaminated air from the working chamber, while polypropylene construction provides resistance to strong acids, alkalis, and corrosion.

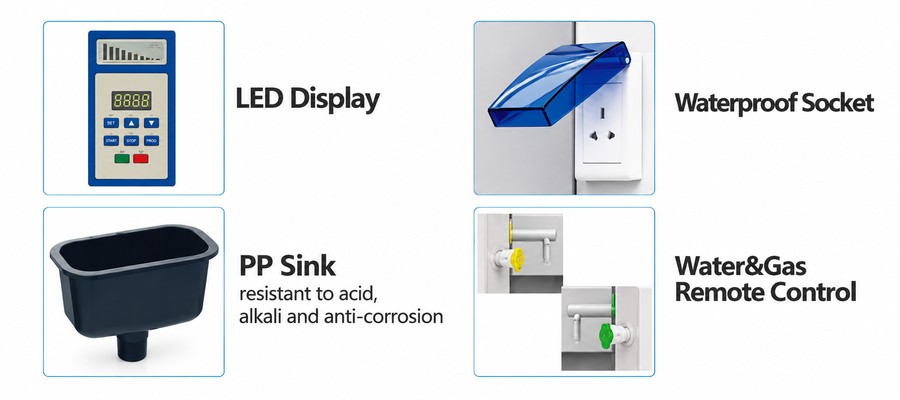

LFH 104 incorporates a microprocessor control system with LED display, memory function during power failure, adjustable 5 mm toughened glass front window, built in PP centrifugal blowers, LED illumination, waterproof sockets, PP sink, and remote water and gas controls. The LFH-104 configuration uses two PP centrifugal blowers and 20 W × 2 LED lamps, with a rated power consumption of 700 W. These features make the fume hood suitable for laboratories performing corrosive chemical handling and other procedures requiring ducted local exhaust.

Why Choose Labotemp Polypropylene Ducted Chemical Fume Hood LFH-104?

✓ Corrosion Resistant PP Construction: 8 mm porcelain white polypropylene construction provides resistance to strong acids, alkalis, and corrosion.
✓ Large Working Area: 1587 × 560 × 700 mm internal dimensions provide a spacious enclosure for laboratory procedures.
✓ Adjustable Air Velocity: 0.3 to 0.8 m/s airflow range allows adjustment according to laboratory operating requirements.

$4937

Datasheet

Dimensions and Working Conditions
External Dimensions : 1847 × 800 × 2450 mm External Dimensions	1847 × 800 × 2450 mm
Internal Dimensions : 1587 × 560 × 700 mm Internal Dimensions	1587 × 560 × 700 mm
Work Surface Height : 820 mm Work Surface Height	820 mm
Maximum Front Window Opening : 740 mm Maximum Front Window Opening	740 mm
Air Velocity : 0.3 to 0.8 m/s Air Velocity	0.3 to 0.8 m/s
Noise Level : ≤68 dB Noise Level	≤68 dB
Exhaust Duct : 4.3 m, Ø250 mm Exhaust Duct	4.3 m, Ø250 mm
Construction and Ventilation
Main Body Material : Porcelain white PP Main Body Material	Porcelain white PP
Main Body Thickness : 8 mm Main Body Thickness	8 mm
Chemical Resistance : Resistant to strong acids, alkalis, and corrosion Chemical Resistance	Resistant to strong acids, alkalis, and corrosion
Work Table Material : Chemical resistant phenolic resin Work Table Material	Chemical resistant phenolic resin
Front Window Material : 5 mm toughened glass Front Window Material	5 mm toughened glass
Front Window Operation : Manual, height adjustable Front Window Operation	Manual, height adjustable
Blower Type : Built in PP centrifugal blower Blower Type	Built in PP centrifugal blower
Blower Quantity : 2 Blower Quantity	2
Blower Speed : Adjustable Blower Speed	Adjustable
Lighting and Control
LED Lamp : 20 W × 2 LED Lamp	20 W × 2
Control System : Microprocessor control Control System	Microprocessor control
Display : LED display Display	LED display
Power Failure Memory : Available Power Failure Memory	Available
Electrical Parameters
Power Supply : AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz Power Supply	AC 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz
Power Consumption : 700 W Power Consumption	700 W
Weight and Packaging
Main Body Gross Weight : 206 kg Main Body Gross Weight	206 kg
Base Cabinet Gross Weight : 140 kg Base Cabinet Gross Weight	140 kg
Main Body Package Dimensions : 1988 × 938 × 1612 mm Main Body Package Dimensions	1988 × 938 × 1612 mm
Base Cabinet Package Dimensions : 1988 × 888 × 1000 mm Base Cabinet Package Dimensions	1988 × 888 × 1000 mm

8 mm PP Corrosion Resistant Body ➤ 8 mm PP Corrosion Resistant Body
Large 1587 × 560 × 700 mm internal working area supports laboratory procedures requiring enclosed chemical handling ➤ Large 1587 × 560 × 700 mm internal working area supports laboratory procedures requiring enclosed chemical handling
0.3 to 0.8 m/s adjustable air velocity supports controlled removal of fumes and chemical vapors ➤ 0.3 to 0.8 m/s adjustable air velocity supports controlled removal of fumes and chemical vapors
Microprocessor control system provides convenient operation and monitoring ➤ Microprocessor control system provides convenient operation and monitoring
LED display provides clear visibility of operating information ➤ LED display provides clear visibility of operating information
Power failure memory function helps retain operating settings during power interruptions ➤ Power failure memory function helps retain operating settings during power interruptions
5 mm toughened glass front window provides visibility of the working chamber ➤ 5 mm toughened glass front window provides visibility of the working chamber
8 mm polypropylene construction provides resistance to strong acids, alkalis, and corrosion ➤ 8 mm polypropylene construction provides resistance to strong acids, alkalis, and corrosion
Adjustable front window allows the working opening to be positioned according to operating requirements ➤ Adjustable front window allows the working opening to be positioned according to operating requirements
Two built in PP centrifugal blowers support extraction of contaminated air ➤ Two built in PP centrifugal blowers support extraction of contaminated air
20 W × 2 LED lighting provides illumination inside the working chamber ➤ 20 W × 2 LED lighting provides illumination inside the working chamber
Chemical resistant phenolic resin work surface supports routine laboratory chemical handling ➤ Chemical resistant phenolic resin work surface supports routine laboratory chemical handling
PP water and gas taps support connection to laboratory utilities ➤ PP water and gas taps support connection to laboratory utilities
PP sink supports liquid handling within the working area ➤ PP sink supports liquid handling within the working area
Waterproof electrical sockets provide convenient electrical connections for compatible laboratory equipment ➤ Waterproof electrical sockets provide convenient electrical connections for compatible laboratory equipment
Ducted exhaust configuration allows contaminated air to be discharged away from the laboratory working area ➤ Ducted exhaust configuration allows contaminated air to be discharged away from the laboratory working area

Chemical Laboratories: Suitable for handling chemicals that generate corrosive fumes, vapors, or odors during laboratory procedures Chemical Laboratories
Suitable for handling chemicals that generate corrosive fumes, vapors, or odors during laboratory procedures
Pharmaceutical Laboratories: Suitable for chemical preparation, formulation related procedures, and laboratory work involving corrosive substances Pharmaceutical Laboratories
Suitable for chemical preparation, formulation related procedures, and laboratory work involving corrosive substances
Research Laboratories: Supports research procedures requiring enclosed handling of acids, alkalis, and other chemically aggressive materials Research Laboratories
Supports research procedures requiring enclosed handling of acids, alkalis, and other chemically aggressive materials
Educational Laboratories: Suitable for laboratory teaching environments where chemical fumes and vapors require controlled extraction Educational Laboratories
Suitable for laboratory teaching environments where chemical fumes and vapors require controlled extraction
Industrial Laboratories: Supports chemical testing and quality control procedures involving corrosive chemicals Industrial Laboratories
Supports chemical testing and quality control procedures involving corrosive chemicals
Environmental Testing Laboratories: Suitable for sample preparation and chemical treatment procedures that may release fumes or vapors Environmental Testing Laboratories
Suitable for sample preparation and chemical treatment procedures that may release fumes or vapors
Quality Control Laboratories: Provides an enclosed working area for chemical handling during analytical and quality control procedures Quality Control Laboratories
Provides an enclosed working area for chemical handling during analytical and quality control procedures

Chemical Resistant Phenolic Resin Work Table ➤ Chemical Resistant Phenolic Resin Work Table
PVC Exhaust Duct, 2 pieces, 5 meters each, Ø250 mm ➤ PVC Exhaust Duct, 2 pieces, 5 meters each, Ø250 mm
Pipe Strap, 4 pieces ➤ Pipe Strap, 4 pieces
Power Cord, RVV 3 × 1.0 mm² × 3000 mm ➤ Power Cord, RVV 3 × 1.0 mm² × 3000 mm
Base Cabinet ➤ Base Cabinet
Waterproof Socket, 2 pieces ➤ Waterproof Socket, 2 pieces
PP Water Tap ➤ PP Water Tap
PP Gas Tap ➤ PP Gas Tap
PP Water Sink ➤ PP Water Sink
PP Centrifugal Blower, 2 pieces ➤ PP Centrifugal Blower, 2 pieces

PP Work Table ➤ PP Work Table
Epoxy Resin Board ➤ Epoxy Resin Board
Ceramic Board ➤ Ceramic Board
Active Carbon Filter ➤ Active Carbon Filter
External PP Centrifugal Blower, recommended when duct length exceeds 4 meters ➤ External PP Centrifugal Blower, recommended when duct length exceeds 4 meters
