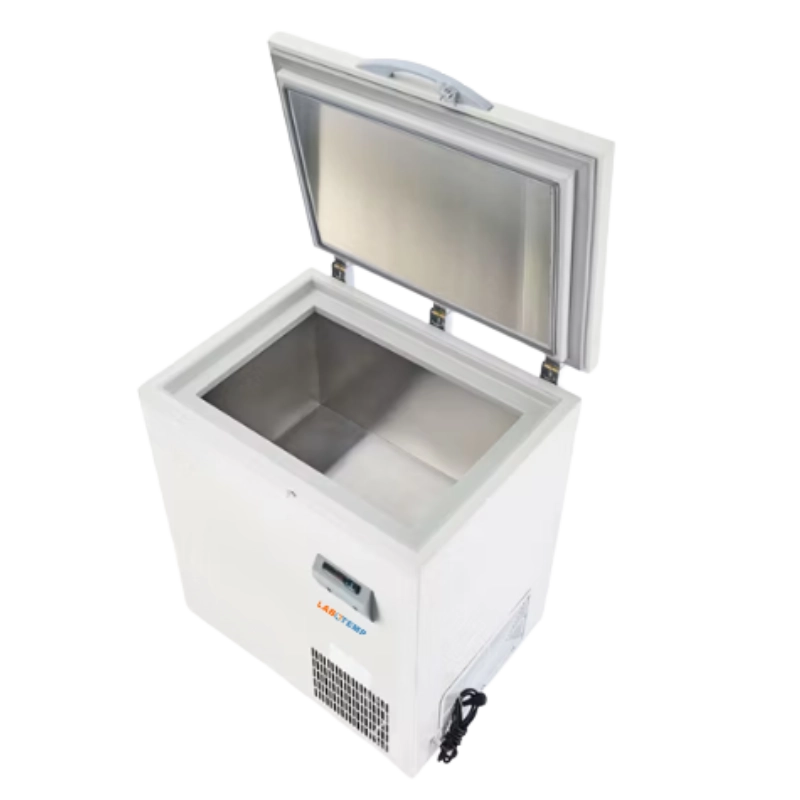

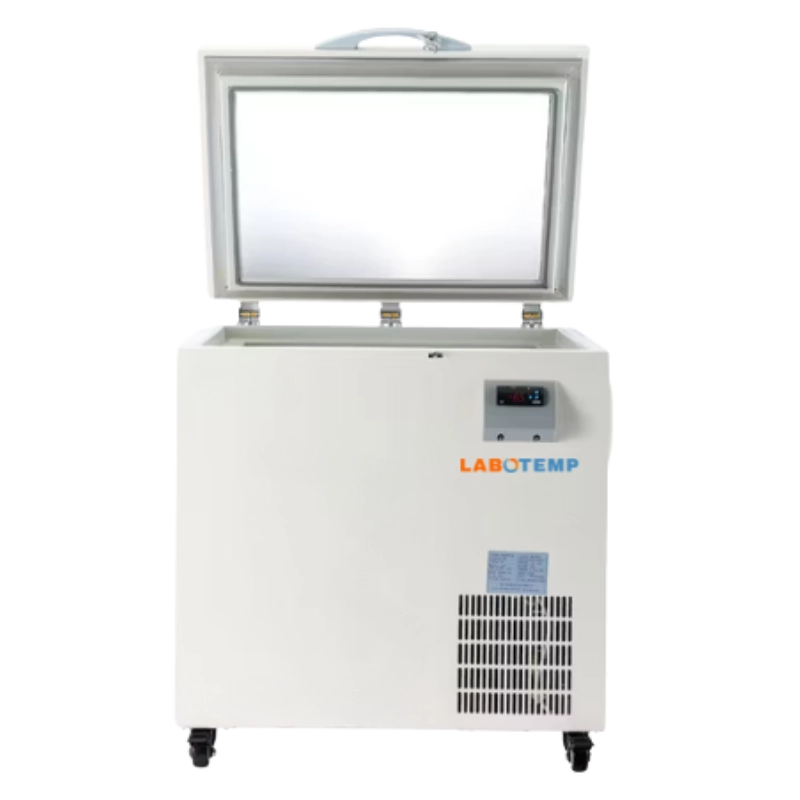

Labotemp -80°C ULT Freezer ULF-03, from a trusted ultra low temperature freezer manufacturer, is a compact and reliable ultra low temperature chest freezer for laboratories, hospitals, research institutes, and industrial facilities. This low temp chest freezer or ultra cold chest freezer delivers stable −40°C to −80°C performance, making it suitable for storing vaccines, biological samples, enzymes, and reagents.
Designed for dependable daily use, the ULF-03 features a high-efficiency SECOP compressor, EBM condenser fans, and eco-friendly fluorine-free refrigerant for uniform cooling and low energy consumption. Its 120L capacity, 100 mm insulation layer, stainless steel 304 interior, powder-coated exterior, digital display, PTC probe, and four smooth casters enhance durability, hygiene, and mobility. With single-compressor refrigeration and electronic control, this ultra low deep freezer or ultra low temperature laboratory freezer ensures consistent ultra cold freezer performance.
Why Choose Labotemp ULF-03?
✓ Stable cooling: Maintains −40°C to −80°C for reliable storage.
✓ Durable design: Stainless interior, thick insulation, corrosion-resistant exterior.
✓ Safe operation: Audio-visual alarms, mobility casters, electronic monitoring.
|
Model NO. : ULF-03 Model NO. |
ULF-03 |
|
Temperature Range : -40°c to -80°c, Adjustable Temperature Range |
-40°c to -80°c, Adjustable |
|
Capacity : 120L Capacity |
120L |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Compressor : SECOP Compressor |
SECOP |
|
Type : Horizontal Type |
Horizontal |
|
Alarm : audible and visual alarm Alarm |
audible and visual alarm |
|
Input Power : 370W Input Power |
370W |
|
Power consumption : 5.1kw.h/24h Power consumption |
5.1kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
refrigeration system : Singel compressor refrigeration system refrigeration system |
Singel compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : data display Temperature display |
data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM Condenser fans |
EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
External dimensions : 810*765*885mm External dimensions |
810*765*885mm |
|
Internal dimensions : 610*470*595mm Internal dimensions |
610*470*595mm |
|
Package size : 880x835x1055mm Package size |
880x835x1055mm |
|
Net weight : 89 kg Net weight |
89 kg |
|
Gross weight : 116 kg Gross weight |
116 kg |
