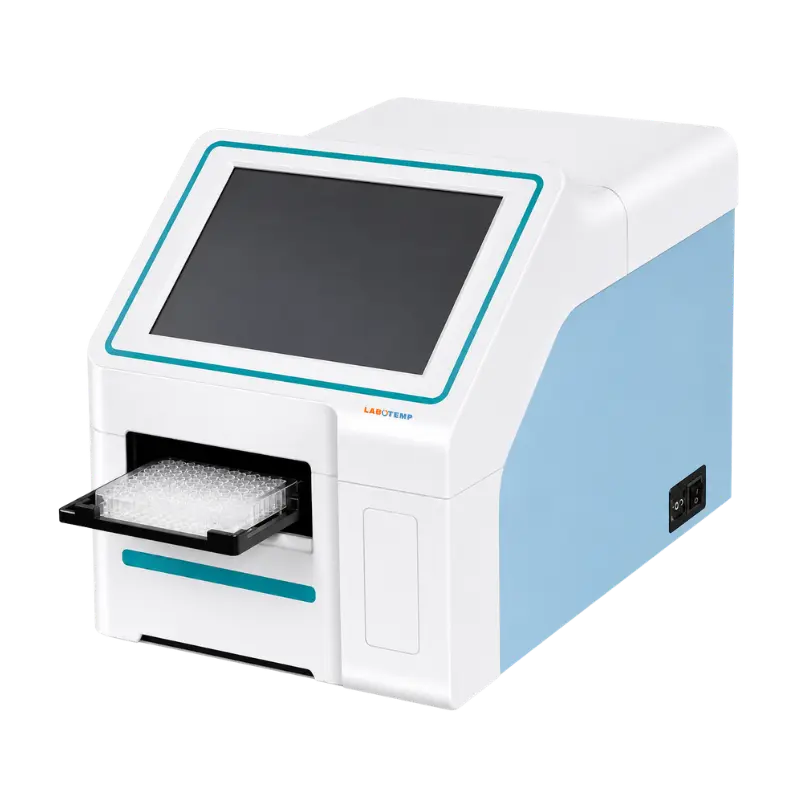

Labotemp Full Wavelength ELISA Reader LEP-102 is a high-performance ELISA plate reader designed for accurate absorbance measurement across a 190–1000 nm wavelength range using an advanced grating monochromator. Engineered for clinical diagnostics, biomedical research, pharmaceutical laboratories, and academic institutions, this versatile microplate reader supports endpoint, kinetic, and spectral scanning assays with exceptional flexibility. The integrated incubation module maintains temperatures from RT+4°C to 50°C, while the adjustable linear shaking function promotes consistent reaction conditions for improved assay reliability. Compatible with 96-well microplates and optional ultra-micro detection accessories, the LEP-102 is ideal for ELISA testing, protein and nucleic acid quantification, cell viability, cytotoxicity, enzyme kinetics, and receptor-ligand binding studies.
Built for dependable laboratory performance, the LEP-102 combines a 12-inch capacitive touch screen, intuitive software, and high-precision optics delivering ±1 nm wavelength accuracy and excellent measurement repeatability. Built-in Wi-Fi, USB, Ethernet connectivity, and PC analysis software simplify data management and laboratory integration, while automatic system self-checks ensure stable and reliable operation. Its energy-efficient xenon flash lamp provides long service life with minimal maintenance, making this ELISA reader a reliable solution for routine diagnostics, high-throughput screening, research applications, and quality control laboratories requiring accurate and reproducible absorbance measurements.
Why Choose Labotemp Full Wavelength ELISA Reader LEP-102?
✓ 190–1000 nm Detection: Full wavelength scanning for diverse ELISA and absorbance assays.
✓ Integrated Incubation & Shaking: RT+4°C to 50°C incubation with adjustable oscillation for reliable reactions.
✓ High-Precision Optical System: Grating monochromator with ±1 nm wavelength accuracy and excellent repeatability.
✓ Smart Laboratory Connectivity: 12-inch touch screen, Wi-Fi, USB, Ethernet, and PC software for efficient workflow.
| Optical Detection & Measurement | |
|
Display : 12-inch High-Resolution Capacitive Touch Screen Display |
12-inch High-Resolution Capacitive Touch Screen |
|
Light Source : Xenon Flash Lamp (≥10⁹ flashes) Light Source |
Xenon Flash Lamp (≥10⁹ flashes) |
|
Wavelength Range : 190–1000 nm Wavelength Range |
190–1000 nm |
|
Optical System : Grating Monochromator, 1 nm Stepper Optical System |
Grating Monochromator, 1 nm Stepper |
|
Wavelength Accuracy : ±1 nm Wavelength Accuracy |
±1 nm |
|
Wavelength Repeatability : ±0.2 nm Wavelength Repeatability |
±0.2 nm |
|
Bandwidth (Tape Width) : <2.5 nm Bandwidth (Tape Width) |
<2.5 nm |
|
Reading Range : 0–4.00 OD Reading Range |
0–4.00 OD |
|
Detection System : Dual Silicon Photoelectric Detection Tubes (Measurement & Reference) Detection System |
Dual Silicon Photoelectric Detection Tubes (Measurement & Reference) |
|
Linearity @450 nm : R² ≥ 0.999, 0.0–3.0 Abs Linearity @450 nm |
R² ≥ 0.999, 0.0–3.0 Abs |
|
Absorbance Accuracy @450 nm : ±1.0% + 0.003 Abs (0–2.0 Abs); ±2.0% (2.0–2.5 Abs) Absorbance Accuracy @450 nm |
±1.0% + 0.003 Abs (0–2.0 Abs); ±2.0% (2.0–2.5 Abs) |
|
Absorbance Repeatability @450 nm : CV ≤0.5% or SD ≤0.003 (Precision Mode); CV <1.0% (Fast Mode) Absorbance Repeatability @450 nm |
CV ≤0.5% or SD ≤0.003 (Precision Mode); CV <1.0% (Fast Mode) |
| Incubation & Operating | |
|
Measurement Speed : 96-well Plate: Fast Mode <8 s; Precision Mode <28 s (Endpoint Method) Measurement Speed |
96-well Plate: Fast Mode <8 s; Precision Mode <28 s (Endpoint Method) |
|
Oscillation Mode : Linear, 3 Adjustable Speeds Oscillation Mode |
Linear, 3 Adjustable Speeds |
|
Incubation Temperature Range : Room Temperature +4°C to 50°C Incubation Temperature Range |
Room Temperature +4°C to 50°C |
|
Temperature Uniformity : ±0.5°C @37°C (Covered 96-Well Plate) Temperature Uniformity |
±0.5°C @37°C (Covered 96-Well Plate) |
|
User Interface : Built into Software for Independent Operation User Interface |
Built into Software for Independent Operation |
|
Operation Display : Touch Screen Input, Windows OS, Full Plate Display, External Keyboard & Mouse Support Operation Display |
Touch Screen Input, Windows OS, Full Plate Display, External Keyboard & Mouse Support |
|
Analysis Software : UReader Eyes PC Software Analysis Software |
UReader Eyes PC Software |
|
Carrier Compatibility : 6-well, 96-well, 384-well Plates, Ultramicro Plate & Colorimetric Dish Carrier Compatibility |
6-well, 96-well, 384-well Plates, Ultramicro Plate & Colorimetric Dish |
|
U-Nano Detection Board : Supports High-Throughput Ultra-Trace Nucleic Acid & Protein Quantification U-Nano Detection Board |
Supports High-Throughput Ultra-Trace Nucleic Acid & Protein Quantification |
|
Incubation Module : Temperature-Controlled Incubation with Linear Oscillation Incubation Module |
Temperature-Controlled Incubation with Linear Oscillation |
|
Oscillation Levels : Low, Medium & High (3 Levels) Oscillation Levels |
Low, Medium & High (3 Levels) |
| Connectivity & Physical Specifications | |
|
Internal Storage : 32 GB (Stores More Than 100,000 Data Files) Internal Storage |
32 GB (Stores More Than 100,000 Data Files) |
|
USB Ports : 4 × USB USB Ports |
4 × USB |
|
Ethernet Port : 1 × Ethernet Ethernet Port |
1 × Ethernet |
|
External Device Support : Computer, Printer & USB Drive External Device Support |
Computer, Printer & USB Drive |
|
Mechanical Arm Compatibility : Expandable / Customizable Mechanical Arm Compatibility |
Expandable / Customizable |
|
Power Supply : DC 24 V, 6.5 A Power Supply |
DC 24 V, 6.5 A |
|
Overall Dimensions (W × H × L) : 348 × 276 × 496 mm Overall Dimensions (W × H × L) |
348 × 276 × 496 mm |
|
Net Weight : 15 kg Net Weight |
15 kg |
|
Gross Weight : 25kg Gross Weight |
25kg |
|
Package Size : 660x510x470mm Package Size |
660x510x470mm |
Wavelength Repeatability: ≤ ±1.5 nm
Wavelength Range: 340–880 nm
Wavelength Indication Error: ≤ ±3 nm
Stability: (0–3.0) ≤ 0.3%; (3.0–4.0) ≤ 1%
Wavelength Repeatability: ±0.2 nm
Wavelength Range: 190–1000 nm
Wavelength Accuracy: ±1 nm
User Interface: Built into Software for Independent Operation
