Handheld XRF Gun LXR-101

Name: Handheld XRF Gun LXR-101
Brand: Labotemp
SKU: LXR-101
Price: 23450.00 USD
Availability: InStock
Rating: 4.9 (900 reviews)

Labotemp Handheld XRF Gun LXR-101 provides rapid, nondestructive elemental analysis and material identification for metals, alloys, and other sample types. Designed as a portable XRF analyzer, it uses Energy Dispersive X-Ray Fluorescence (EDXRF) technology with an SDD or optional Fast-SDD detector to analyze elements from magnesium (Mg) to uranium (U). The analyzer can simultaneously analyze up to 40 elements and supports testing of solid, liquid, and powder samples, making it suitable for on-site material verification and laboratory quality-control workflows.

LXR-101 delivers rapid measurement with results reported within approximately one second and supports identification of stainless steel, low-alloy steel, tool steel, nickel alloys, cobalt alloys, titanium, copper alloys, bronze, zinc alloys, tungsten alloys, and precious-metal alloys. Its portable design, 5-inch high-definition 360° rotatable touchscreen, built-in Wi-Fi and Bluetooth, rechargeable lithium battery, and waterproof and dustproof housing support field testing. The analyzer also incorporates multiple safety protections, including automatic sample sensing, radiation shielding, and automatic X-ray tube shutdown functions.

Why Choose Labotemp Handheld XRF Gun LXR-101?

✓ Rapid Nondestructive Analysis: Provides quick material analysis with results reported within approximately one second.
✓ Wide Element Analysis: Measures elements from magnesium (Mg) to uranium (U) and can simultaneously analyze up to 40 elements.
✓ Portable Field Testing: Lightweight handheld construction, rechargeable battery, and protective case support convenient on-site analysis.

$23450

Datasheet

General Specifications
Analytical Method : Energy Dispersive X-Ray Fluorescence Analytical Method Analytical Method	Energy Dispersive X-Ray Fluorescence Analytical Method
Element Measuring Range : Atomic number from 12 to 92<br>Magnesium (Mg) to Uranium (U) Element Measuring Range	Atomic number from 12 to 92 Magnesium (Mg) to Uranium (U)
Simultaneous Analysis : Up to 40 elements Simultaneous Analysis	Up to 40 elements
Detection Objects : Solid, Liquid, Powder Detection Objects	Solid, Liquid, Powder
Content Range : ppm–99.99% Content Range	ppm–99.99%
Detection Time : 1–60 seconds Detection Time	1–60 seconds
Detection Limit : 1–500 ppm Detection Limit	1–500 ppm
X-Ray Source & Detector
Detector : SDD Detector / Fast-SDD Detector (Optional) Detector	SDD Detector / Fast-SDD Detector (Optional)
Detector Resolution : Minimum 128 eV Detector Resolution	Minimum 128 eV
Excitation Source : 50 kV / 200 µA Silver-Target End-Window Integrated Miniature X-Ray Tube Excitation Source	50 kV / 200 µA Silver-Target End-Window Integrated Miniature X-Ray Tube
Collimator Diameter : 4.0 mm and 2.0 mm Collimator Diameter	4.0 mm and 2.0 mm
Filters : 6 types with automatic switching Filters	6 types with automatic switching
Helium Requirement : Not required; ultra-near optical path design Helium Requirement	Not required; ultra-near optical path design
Display & Imaging
Display Type : LCD Touch Screen Display Type	LCD Touch Screen
Screen Size : 5 inch Screen Size	5 inch
Screen Resolution : 1080 × 720 Screen Resolution	1080 × 720
Screen Design : Semi-reflecting and semi-transmitting Screen Design	Semi-reflecting and semi-transmitting
Screen Rotation : 360° Screen Rotation	360°
Camera : 500 W Pixel High-Resolution Camera Camera	500 W Pixel High-Resolution Camera
Software & Data
Analysis Software : Professional Alloy Analysis Software Analysis Software	Professional Alloy Analysis Software
Operating Modes : User Mode and Expert Mode Operating Modes	User Mode and Expert Mode
Standard Storage : 4 GB Standard Storage	4 GB
Extended Storage : Up to 32 GB Extended Storage	Up to 32 GB
Spectral Count Rate : Up to 500K cps Spectral Count Rate	Up to 500K cps
Internal Correction : Corrects deviations caused by uneven sample geometry, density and structure Internal Correction	Corrects deviations caused by uneven sample geometry, density and structure
Data Transmission : Digital multi-channel technology and SPI data transmission Data Transmission	Digital multi-channel technology and SPI data transmission
USB : Waterproof Mini USB USB	Waterproof Mini USB
Computer Connection : Desktop computer supported Computer Connection	Desktop computer supported
Power & Connectivity
Standard Battery : Rechargeable Lithium Battery Standard Battery	Rechargeable Lithium Battery
Standard Battery Capacity : 9000 mAh Standard Battery Capacity	9000 mAh
Standard Working Time : Up to 12 hours Standard Working Time	Up to 12 hours
Optional Battery : 27000 mAh Super Battery Optional Battery	27000 mAh Super Battery
Power Adapter : 110–220 V Universal Adapter Power Adapter	110–220 V Universal Adapter
Built-in Connectivity : Wi-Fi, Bluetooth Built-in Connectivity	Wi-Fi, Bluetooth
Power Supply : 220V 50Hz/ 110V 60Hz Power Supply	220V 50Hz/ 110V 60Hz
Safety Specifications
Sample Detection : Automatic induction Sample Detection	Automatic induction
X-Ray Tube Protection : Automatic X-ray tube shutdown X-Ray Tube Protection	Automatic X-ray tube shutdown
Radiation Protection : Standard radiation shields Radiation Protection	Standard radiation shields
Testing Wall : Thickened instrument alloy testing wall Testing Wall	Thickened instrument alloy testing wall
Safety System : Multiple safety protection functions Safety System	Multiple safety protection functions
Status Indicator : Green – Power On; Red Flashing – Testing; Yellow Flashing – Error Status Indicator	Green – Power On; Red Flashing – Testing; Yellow Flashing – Error
Security : Security linkage locking device Security	Security linkage locking device
Environmental & Physical Specifications
Operating Temperature : −20°C to +50°C Operating Temperature	−20°C to +50°C
Operating Humidity : <90% Operating Humidity	<90%
Instrument Dimensions : 244 × 90 × 330 mm Instrument Dimensions	244 × 90 × 330 mm
Packaging Dimensions : 570 x 270 x 560 mm Packaging Dimensions	570 x 270 x 560 mm
Instrument Weight : 1.7 kg Instrument Weight	1.7 kg
Gross Weight : 14Kg Gross Weight	14Kg
Protection Box : Three-military-grade protection box Protection Box	Three-military-grade protection box
Protection Box Protection : Compression, Waterproof and Shock Absorption Protection Box Protection	Compression, Waterproof and Shock Absorption

Up to 40 Elements Analysis ➤ Up to 40 Elements Analysis
Handheld XRF design provides portable elemental analysis for field and laboratory use. ➤ Handheld XRF design provides portable elemental analysis for field and laboratory use.
Energy dispersive X-ray fluorescence technology enables nondestructive material analysis. ➤ Energy dispersive X-ray fluorescence technology enables nondestructive material analysis.
Rapid measurement provides one-second result reporting for quick testing applications. ➤ Rapid measurement provides one-second result reporting for quick testing applications.
Elements from magnesium (Mg) to uranium (U) can be measured. ➤ Elements from magnesium (Mg) to uranium (U) can be measured.
Simultaneous analysis of up to 40 elements supports multi-element material characterization. ➤ Simultaneous analysis of up to 40 elements supports multi-element material characterization.
Solid, liquid, and powder samples can be analyzed. ➤ Solid, liquid, and powder samples can be analyzed.
Ultra-near optical path design allows operation without helium. ➤ Ultra-near optical path design allows operation without helium.
Light-element detection starting from magnesium (Mg) supports analysis of applicable alloy materials. ➤ Light-element detection starting from magnesium (Mg) supports analysis of applicable alloy materials.

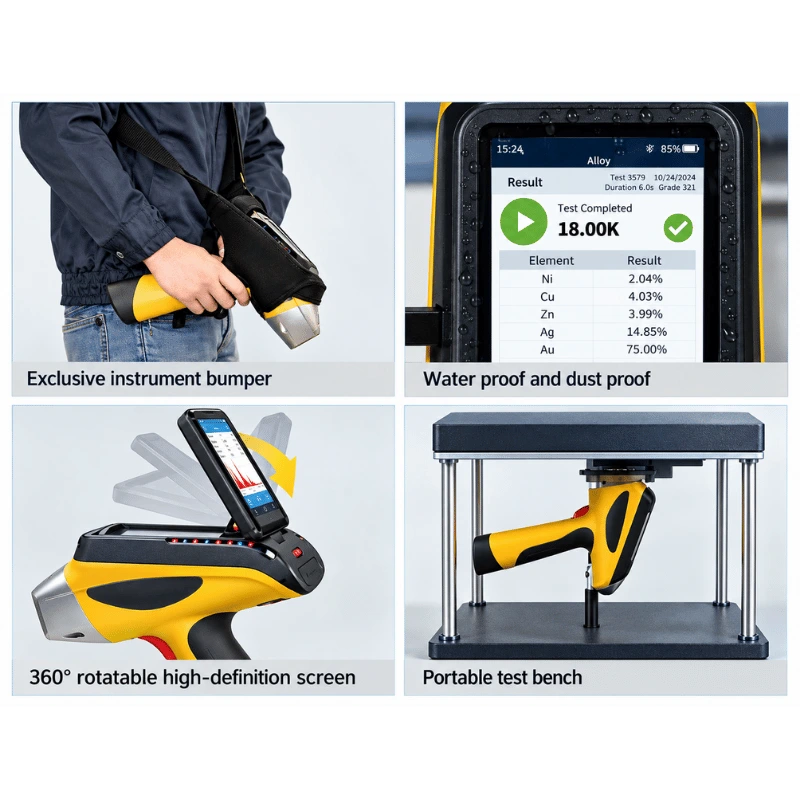

5-inch high-definition LCD touchscreen with 360° rotation supports convenient operation under different lighting conditions. ➤ 5-inch high-definition LCD touchscreen with 360° rotation supports convenient operation under different lighting conditions.
Sealed instrument design provides waterproof and dustproof protection for use in harsh environments. ➤ Sealed instrument design provides waterproof and dustproof protection for use in harsh environments.
Direct surface measurement enables rapid analysis of samples and goods in the field. ➤ Direct surface measurement enables rapid analysis of samples and goods in the field.
SDD detector provides elemental detection, with Fast-SDD available as an optional configuration. ➤ SDD detector provides elemental detection, with Fast-SDD available as an optional configuration.
4.0 mm and 2.0 mm collimators support different measurement requirements. ➤ 4.0 mm and 2.0 mm collimators support different measurement requirements.
Six filters with automatic switching support different customer testing requirements. ➤ Six filters with automatic switching support different customer testing requirements.
User Mode provides one-key sample category recognition. ➤ User Mode provides one-key sample category recognition.
Expert Mode supports additional elements and more detailed analysis operations. ➤ Expert Mode supports additional elements and more detailed analysis operations.
Internal intensity correction helps correct deviations caused by differences in sample geometry, density, and structure. ➤ Internal intensity correction helps correct deviations caused by differences in sample geometry, density, and structure.
Rechargeable 9000 mAh lithium battery provides up to 12 hours of working time. ➤ Rechargeable 9000 mAh lithium battery provides up to 12 hours of working time.
Wi-Fi and Bluetooth support built-in wireless connectivity. ➤ Wi-Fi and Bluetooth support built-in wireless connectivity.
Digital multi-channel technology supports rapid spectral data processing. ➤ Digital multi-channel technology supports rapid spectral data processing.
Automatic sample induction prevents the instrument from operating without a sample. ➤ Automatic sample induction prevents the instrument from operating without a sample.
Three-color intelligent warning system indicates power, testing, and error status. ➤ Three-color intelligent warning system indicates power, testing, and error status.
Multiple safety protections include radiation shielding and automatic X-ray tube shutdown. ➤ Multiple safety protections include radiation shielding and automatic X-ray tube shutdown.
Security linkage locking device provides an additional safety protection function. ➤ Security linkage locking device provides an additional safety protection function.
Professional alloy analysis software supports intelligent, high-sensitivity and short-time testing. ➤ Professional alloy analysis software supports intelligent, high-sensitivity and short-time testing.
Supports material identification and Positive Material Identification (PMI) for applicable alloy materials. ➤ Supports material identification and Positive Material Identification (PMI) for applicable alloy materials.
Suitable for precious-metal analysis, including gold, silver, platinum, and palladium testing. ➤ Suitable for precious-metal analysis, including gold, silver, platinum, and palladium testing.

Precious Metal & Jewelry Testing: Supports nondestructive analysis of gold, silver, platinum, palladium, and other precious-metal alloys Precious Metal & Jewelry Testing
Supports nondestructive analysis of gold, silver, platinum, palladium, and other precious-metal alloys
Aerospace Industry: Suitable for alloy identification and material verification in aerospace-related applications Aerospace Industry
Suitable for alloy identification and material verification in aerospace-related applications
Machinery Manufacturing & Processing: Supports material identification during manufacturing and processing to help prevent raw-material mix-ups Machinery Manufacturing & Processing
Supports material identification during manufacturing and processing to help prevent raw-material mix-ups
Boiler & Pressure Vessel Industry: Suitable for material identification and quality control in high-temperature and high-pressure equipment applications Boiler & Pressure Vessel Industry
Suitable for material identification and quality control in high-temperature and high-pressure equipment applications
Waste Metal Recycling: Enables on-site detection and rapid classification of scrap metals, including steel and other recyclable alloys Waste Metal Recycling
Enables on-site detection and rapid classification of scrap metals, including steel and other recyclable alloys
Iron & Steel Smelting: Supports alloy composition identification and material quality control in steel-related production Iron & Steel Smelting
Supports alloy composition identification and material quality control in steel-related production
Shipbuilding: Suitable for alloy composition identification and material verification in shipbuilding applications Shipbuilding
Suitable for alloy composition identification and material verification in shipbuilding applications

Three-Military-Grade Protection Box — Provides compression, waterproof, and shock-absorption protection. ➤ Three-Military-Grade Protection Box — Provides compression, waterproof, and shock-absorption protection.
Lithium Batteries — 2 batteries included. ➤ Lithium Batteries — 2 batteries included.
Charger — Included for battery charging. ➤ Charger — Included for battery charging.
PDA Accessories — Included. ➤ PDA Accessories — Included.
Radiation Shield — Included for radiation protection. ➤ Radiation Shield — Included for radiation protection.
Universal Charger — Included. ➤ Universal Charger — Included.
Car Charger — Supports charging in the field. ➤ Car Charger — Supports charging in the field.
4 GB SD Memory Card — For data storage. ➤ 4 GB SD Memory Card — For data storage.
Card Reader — For SD memory card data transfer. ➤ Card Reader — For SD memory card data transfer.

27000 mAh Super Battery ➤ 27000 mAh Super Battery
Seat-Type Test Support ➤ Seat-Type Test Support
Bluetooth Printer ➤ Bluetooth Printer
Mill ➤ Mill
Manual Pressure Machine ➤ Manual Pressure Machine
Different Meshes of Sieves ➤ Different Meshes of Sieves
