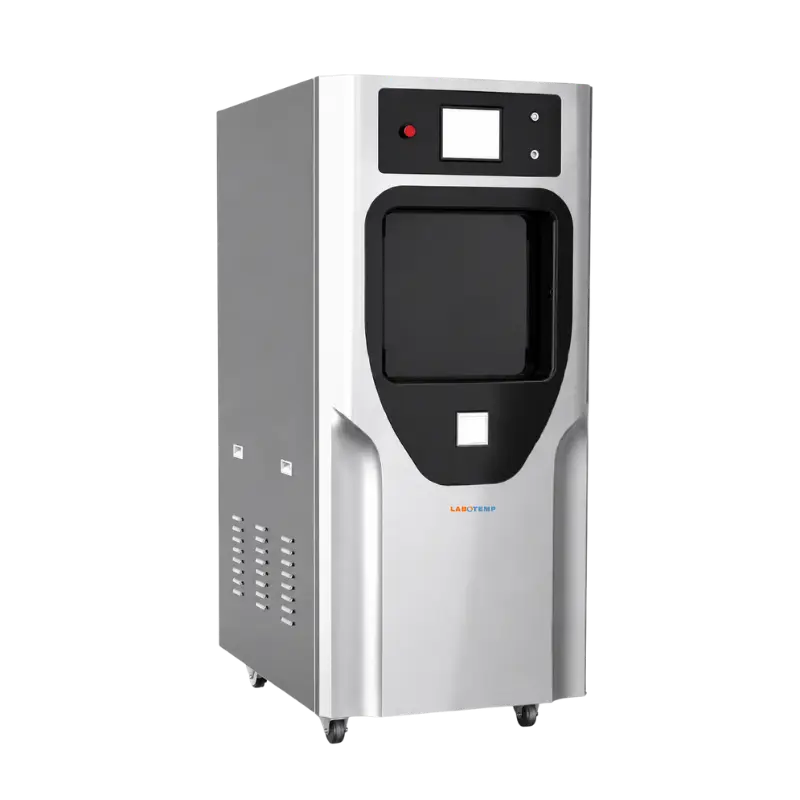

Formaldehyde Autoclave FHA-01

Name: Formaldehyde Autoclave FHA-01
Brand: Labotemp
SKU: FHA-01
Price: 43844.00 USD
Availability: InStock
Rating: 5 (991 reviews)

Labotemp Formaldehyde Autoclave FHA-01 is an advanced low-temperature sterilization system designed for effective sterilization of heat-sensitive medical instruments and laboratory equipment. The unit operates using a controlled combination of formaldehyde solution, steam, and distilled water, allowing reliable sterilization at 60°C and 76°C. This makes it suitable for delicate devices that cannot tolerate conventional high-temperature steam sterilization.

The system features a large sterilization chamber with up to 150 L total capacity and about 120 L effective volume, providing sufficient space for instruments and medical devices. The autoclave integrates PID temperature control, automatic formaldehyde dosing, vacuum pump technology, and rapid evaporation to enhance sterilization efficiency and penetration. Additional functions such as automatic cleaning and drying, data recording, and safety alarms ensure reliable performance and improved operational safety.

Why Choose Labotemp Formaldehyde Autoclave FHA-01?

✓ Low-Temperature Sterilization: Operates at 60°C and 76°C, ideal for sterilizing delicate and heat-sensitive instruments.
✓ Advanced Automated Control: Equipped with Siemens PLC and touch screen interface for precise monitoring and easy operation.
✓ Reliable Safety & Performance: Includes negative pressure system, automatic dosing, alarms, and multiple protection features for safe sterilization.

$43844

Datasheet

General Specifications
Total Volume : ≥150 L Total Volume	≥150 L
Effective Volume : ≥120 L Effective Volume	≥120 L
Weight : 345 kg Weight	345 kg
Working Temperature : 60°C and 76°C Working Temperature	60°C and 76°C
Sterilization Time : 2–3.5 hours Sterilization Time	2–3.5 hours
Sterilizer Packaging : 2 L Sterilizer Packaging	2 L
Sterilization Agent : 2% Formaldehyde + 3% Alcohol + 95% Distilled Water Sterilization Agent	2% Formaldehyde + 3% Alcohol + 95% Distilled Water
Single Cycle Dosage : 0.6–1.3 kg Single Cycle Dosage	0.6–1.3 kg
Maximum Pressure Resistance : ≤5 Pa Maximum Pressure Resistance	≤5 Pa
Operating Environment Temperature : 5–40°C Operating Environment Temperature	5–40°C
Relative Humidity : ≤85% Relative Humidity	≤85%
Atmospheric Pressure : 70–106 kPa Atmospheric Pressure	70–106 kPa
Operation Height : ≤160 cm Operation Height	≤160 cm
Sterilization Chamber Size : 820 × 465 × 400 mm Sterilization Chamber Size	820 × 465 × 400 mm
Electrical & Construction
Power Supply : AC 380 V ± 38 V, 50 Hz ± 1 Hz Power Supply	AC 380 V ± 38 V, 50 Hz ± 1 Hz
Power Consumption : 5.3 kVA Power Consumption	5.3 kVA
Heating Method : Electric Heating Heating Method	Electric Heating
Consumption & Performance

Advanced PLC Control ➤ Advanced PLC Control
Low-temperature sterilization suitable for heat-sensitive medical instruments and laboratory equipment. ➤ Low-temperature sterilization suitable for heat-sensitive medical instruments and laboratory equipment.
Large sterilization chamber capacity (150 L) for efficient batch sterilization. ➤ Large sterilization chamber capacity (150 L) for efficient batch sterilization.
Siemens PLC control system with industrial touch screen for automated operation and monitoring. ➤ Siemens PLC control system with industrial touch screen for automated operation and monitoring.
PID temperature control system ensures precise and stable sterilization temperature. ➤ PID temperature control system ensures precise and stable sterilization temperature.
Rapid evaporation system improves formaldehyde vaporization and sterilization efficiency. ➤ Rapid evaporation system improves formaldehyde vaporization and sterilization efficiency.
Automatic dosing technology for controlled formaldehyde solution filling and reduced manual intervention. ➤ Automatic dosing technology for controlled formaldehyde solution filling and reduced manual intervention.
Automatic cleaning and drying function reduces residual formaldehyde on sterilized items. ➤ Automatic cleaning and drying function reduces residual formaldehyde on sterilized items.
Integrated data recording and printing for sterilization cycle tracking and traceability. ➤ Integrated data recording and printing for sterilization cycle tracking and traceability.
Multiple safety protection systems including over-temperature alarm, door safety interlock, and pressure monitoring. ➤ Multiple safety protection systems including over-temperature alarm, door safety interlock, and pressure monitoring.
Negative pressure working system minimizes the risk of formaldehyde leakage and ensures safe operation. ➤ Negative pressure working system minimizes the risk of formaldehyde leakage and ensures safe operation.

Hospital Instrument Sterilization: Used for sterilizing heat-sensitive surgical instruments in operating rooms and sterile supply departments Hospital Instrument Sterilization
Used for sterilizing heat-sensitive surgical instruments in operating rooms and sterile supply departments
Endoscopy Equipment Sterilization: Suitable for disinfecting endoscopes and delicate diagnostic devices that cannot withstand high temperatures Endoscopy Equipment Sterilization
Suitable for disinfecting endoscopes and delicate diagnostic devices that cannot withstand high temperatures
Medical Device Processing: Ideal for sterilizing catheters, plastic instruments, and other temperature-sensitive medical tools Medical Device Processing
Ideal for sterilizing catheters, plastic instruments, and other temperature-sensitive medical tools
Laboratory Equipment Sterilization: Used in research and clinical laboratories for safe sterilization of laboratory instruments Laboratory Equipment Sterilization
Used in research and clinical laboratories for safe sterilization of laboratory instruments
Healthcare Facility Use:  Widely applied in hospitals, clinics, and treatment rooms requiring reliable low-temperature sterilization Healthcare Facility Use
Widely applied in hospitals, clinics, and treatment rooms requiring reliable low-temperature sterilization

Formaldehyde Autoclave FHA-01

Specifications Formaldehyde Autoclave FHA-01

Features Formaldehyde Autoclave FHA-01

Applications Formaldehyde Autoclave FHA-01

Related Products Formaldehyde Autoclave

Formaldehyde Autoclave FHA-01

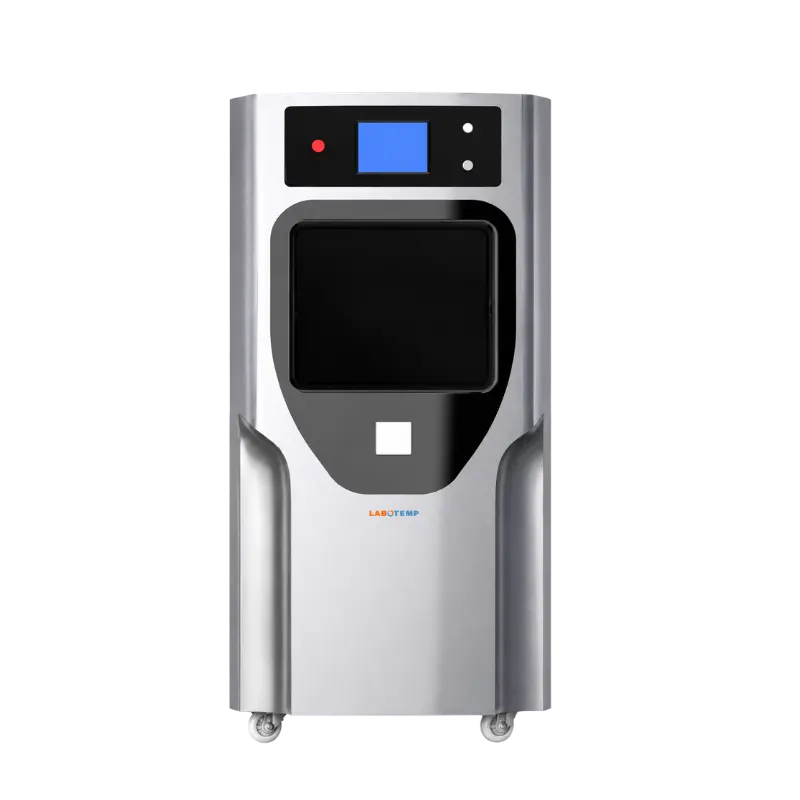

Formaldehyde Autoclave FHA-02
