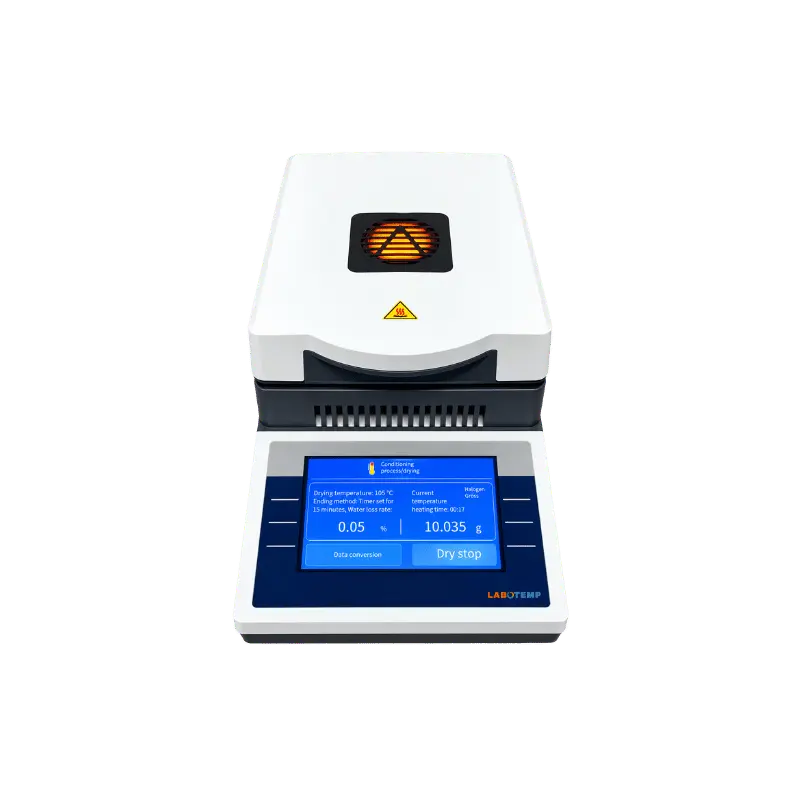

Labotemp Halogen Moisture Analyzer LMA-103 delivers rapid and reliable moisture analysis using the thermogravimetric principle, measuring sample weight loss during controlled heating. Designed for laboratories and quality control environments, this thermogravimetric moisture analyzer uses a halogen heating system to support efficient moisture determination across a wide range of materials. With a maximum weighing capacity of 110 g and 1 mg readability, it helps users assess moisture content with consistent, repeatable measurements.
The LMA-103 features an adjustable heating temperature from 50°C to 180°C, timed and automatic endpoint modes, and multiple result display parameters for flexible testing. Its 100 mm weighing pan accommodates routine sample analysis, while the RS232 interface supports data communication with compatible devices. Suitable for quality control, research, and material testing, this halogen moisture analyzer provides a practical solution for laboratories that require efficient moisture measurement and straightforward operation.
Why Choose Labotemp Halogen Moisture Analyzer LMA-103?
✓ Rapid Moisture Analysis: Halogen heating supports efficient sample drying and measurement.
✓ Adjustable Heating: Select temperatures from 50°C to 180°C for different testing requirements.
✓ Flexible Data Output: Offers multiple result parameters and RS232 connectivity for compatible devices.
| General Specifications | |
|
Product Name : Halogen Moisture Analyzer Product Name |
Halogen Moisture Analyzer |
|
Labotemp Model : LMA-103 Labotemp Model |
LMA-103 |
|
Measurement Principle : Thermogravimetric Method Measurement Principle |
Thermogravimetric Method |
|
Heating Source : Halogen Lamp Heating Source |
Halogen Lamp |
| Weighing Specifications | |
|
Maximum Weighing Capacity : 110 g Maximum Weighing Capacity |
110 g |
|
Readability : 1 mg Readability |
1 mg |
|
Moisture Measurement Range : 0–100% Moisture Measurement Range |
0–100% |
|
Sample Pan Diameter : 100 mm Sample Pan Diameter |
100 mm |
| Heating Specifications | |
|
Heating Temperature Range : 50°C to 180°C Heating Temperature Range |
50°C to 180°C |
|
Temperature Control Tolerance : ±1°C Temperature Control Tolerance |
±1°C |
|
Heating Time Setting : 0–99 minutes Heating Time Setting |
0–99 minutes |
|
Drying Modes : Timed Drying and Automatic Drying Drying Modes |
Timed Drying and Automatic Drying |
| Display and Data | |
|
Result Parameters : 9 types Result Parameters |
9 types |
|
Data Interface : RS232 Data Interface |
RS232 |
|
Baud Rate : 9600 bps Baud Rate |
9600 bps |
|
Data Storage : Up to 6 sets of records Data Storage |
Up to 6 sets of records |
| Electrical Specifications | |
|
Power Supply : 220 V AC ±10%, 50 Hz ±1 Hz Power Supply |
220 V AC ±10%, 50 Hz ±1 Hz |
|
Maximum Power Consumption : 350 W Maximum Power Consumption |
350 W |
| Environmental Conditions | |
|
Operating Ambient Temperature : 5°C to 40°C Operating Ambient Temperature |
5°C to 40°C |
|
Recommended Ambient Temperature : 15°C to 30°C Recommended Ambient Temperature |
15°C to 30°C |
|
Relative Humidity : 50% to 75%, non-condensing Relative Humidity |
50% to 75%, non-condensing |
|
Warm-up Time : At least 30 minutes Warm-up Time |
At least 30 minutes |
| Physical Specifications | |
|
Dimensions : 330 × 180 × 140 mm Dimensions |
330 × 180 × 140 mm |
|
Net Weight : 2.9 kg Net Weight |
2.9 kg |
|
Gross Weight : 4.2 kg Gross Weight |
4.2 kg |
Test Time: Adjustable as per standard requirements
Test Range: 0 – 100%
Temperature Control Accuracy: ±1°C
Sample Weight: Whole moisture: 10g (particle size ≤ 6mm)
Weighing Specifications:
Warm-up Time: At least 30 minutes
Temperature Control Tolerance: ±1°C
Sample Pan Diameter: 100 mm
