Natural Convection Drying oven FOV-16
Laboratory Natural Convention Drying oven
Laboratory Natural Convention Drying oven
Labotemp Natural Convention Drying oven
Labotemp Natural Convection Drying oven
Labotemp Natural Convection Drying oven
Labotemp Natural Convection Drying oven

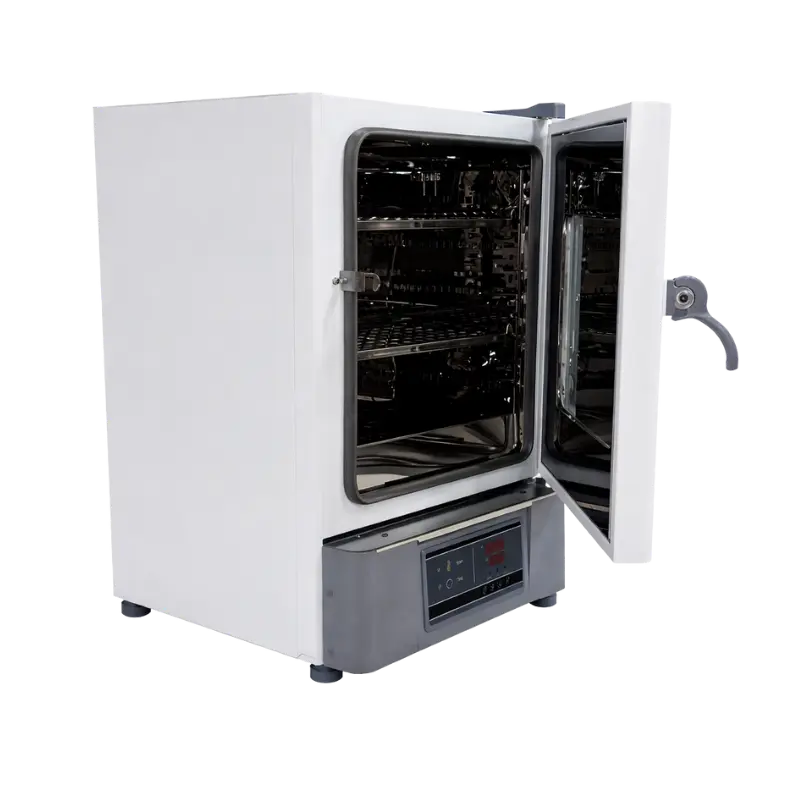

Natural Convection Drying oven FOV-16

Labotemp Natural Convection Drying oven FOV-16 is a high-capacity forced convection drying oven designed for precise heating, drying and thermal processing in research laboratories, manufacturing units and quality control environments. This scientific heating system supports applications such as glassware drying, sample conditioning, material testing and routine oven drying where stable heat circulation is essential. With a 125 L chamber capacity and a temperature range of RT+10 to 300 °C, the unit delivers dependable performance for laboratories requiring a reliable lab drying oven, or high temperature lab oven for analytical and industrial processes.

A dual-channel forced convection airflow system distributes heated air evenly throughout the chamber to maintain stable temperature conditions during drying operations. The PID intelligent controller with digital, LCD or touchscreen options maintains accurate heating with 0.1 °C resolution and ±1 °C stability for consistent results.Built-in over-temperature protection and alarm systems enhance operational safety and reliability.

Why choose Labotemp Natural Convection Drying oven FOV-16?

✓ Large Capacity Chamber: 125 L interior supports efficient batch drying and testing processes.

✓ Uniform Heat Distribution: Dual-channel convection airflow maintains stable and consistent chamber temperature.

✓ Trusted Manufacturer Build: Designed by an experienced lab oven manufacturer for reliable performance.

$1647
Maximum Temperature 300°C
Chamber Volume 125 L
Power Rating 2.5 kW
Temperature Distribution Accuracy ±3.0%
Interior Material Mirror stainless steel
Exterior Material Cold-rolled steel with chemical-resistant coating
Insulation Material Alumina silicate fibre
Heating Element Finned stainless steel heating tube
Air Vent (Controller) Ø28 mm × 1 (top)
Temperature Control Method Dual PID digital tube display
Timer 0–9999 minutes
Program Function single-stage temperature control, 50 programs × 50 steps
Sensor Pt100
Safety Device Anti-rise device
Internal Dimensions 500×450×550
External Dimensions 617×639×953
Package Dimensions 742×718×1080
Temperature Resolution 0.1°C
Partition Load Capacity 15 kg
Number of Layers 11 / 2
Partition Spacing 40 mm
Power Supply (50–60 Hz) AC 220V / 10.5A
Temperature Fluctuation ±1.0°C
Net / Gross Weight 60 / 66kg
  • ➤ Pro Overheat Guard
  • ➤ Wide temperature range of RT+10°C to 300°C suitable for various laboratory processes
  • ➤ Dual PID digital control system ensures precise temperature management
  • ➤ Built with a mirror stainless steel interior for durability and easy cleaning
  • ➤ Cold-rolled steel exterior with chemical-resistant coating for long service life
  • ➤ Equipped with finned stainless steel heating tubes for efficient heat transfer
  • ➤ Alumina silicate fiber insulation reduces heat loss and improves energy efficiency
  • ➤ Designed with anti-rise safety protection for safe operation
  • ➤ Used for drying, sterilizing, curing, baking, moisture removal, and thermal testing of samples, instruments, and materials in chemical, biological, and research laboratories

  • Pro Overheat Guard
  • Wide temperature range of RT+10°C to 300°C suitable for various laboratory processes
  • Dual PID digital control system ensures precise temperature management
  • Built with a mirror stainless steel interior for durability and easy cleaning
  • Cold-rolled steel exterior with chemical-resistant coating for long service life
  • Equipped with finned stainless steel heating tubes for efficient heat transfer
  • Alumina silicate fiber insulation reduces heat loss and improves energy efficiency
  • Designed with anti-rise safety protection for safe operation

Used for drying, sterilizing, curing, baking, moisture removal, and thermal testing of samples, instruments, and materials in chemical, biological, and research laboratories
