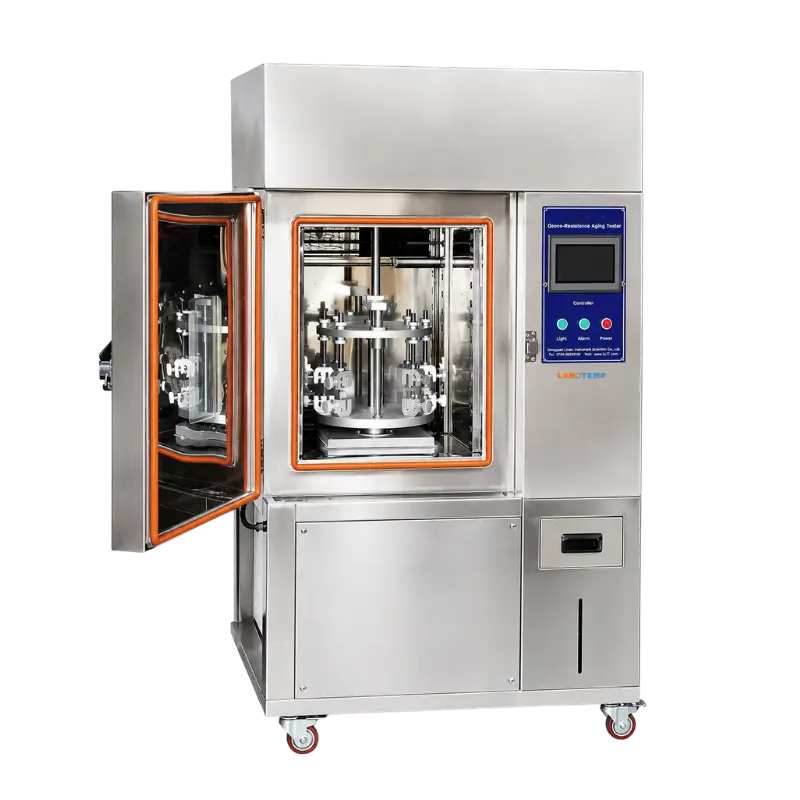

Ozone Resistance Aging Test Chamber LOC-105

Name: Ozone Resistance Aging Test Chamber LOC-105
Brand: Labotemp
SKU: LOC-105
Price: 12329.00 USD
Availability: InStock
Rating: 4.9 (980 reviews)

Labotemp Ozone Resistance Aging Test Chamber LOC-105 is a precision-engineered ozone test chamber designed for accelerated ozone testing of rubber, elastomers, and polymer materials under controlled environmental conditions. Featuring a 150 L stainless steel chamber, adjustable ozone concentration from 0 to 1500 PPHM, and a temperature range of RT+10°C to 80°C, it accurately simulates ozone-induced aging to evaluate surface cracking, degradation, and material durability. The chamber incorporates a 360° rotating sample holder, six dynamic and six static tensile fixtures, PID touch-screen control, and ±0.5°C temperature stability to ensure uniform specimen exposure and highly repeatable test results. This advanced ozone aging test chamber is widely used in automotive, wire & cable, sealing, rubber manufacturing, research laboratories, and quality control facilities.

Built for dependable laboratory performance, the LOC-105 combines an integrated ozone generator with a high-precision ozone sensor to maintain stable ozone concentration throughout each testing cycle. Its mirror-finish SUS304 stainless steel interior, forced air circulation, and energy-efficient heating system provide excellent temperature uniformity and long-term reliability. Safety is enhanced through an automatic ozone decomposition and exhaust system, airtight chamber construction, and door interlock protection that minimizes operator exposure during testing.

Why Choose Labotemp Ozone Resistance Aging Test Chamber LOC-105?

✓ Accurate ozone control: Adjustable 0–1500 PPHM concentration for reliable and repeatable ozone aging tests.
✓ Stable temperature performance: RT+10°C to 80°C operating range with ±0.5°C fluctuation for dependable environmental control.
✓ Advanced safety design: Integrated ozone decomposition, exhaust system, airtight chamber, and door interlock for enhanced operator protection.

$12329

Datasheet

Environmental & Performance
Temperature Range : RT +10°C to +80°C Temperature Range	RT +10°C to +80°C
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Temperature Resolution : 0.1°C Temperature Resolution	0.1°C
Relative Humidity : ≤65% RH Relative Humidity	≤65% RH
Humidity Resolution : 0.1% RH Humidity Resolution	0.1% RH
Humidity Deviation : +2% / -3% RH Humidity Deviation	+2% / -3% RH
Ozone Concentration Range : 0–1500 pphm (Adjustable) Ozone Concentration Range	0–1500 pphm (Adjustable)
Ozone Concentration Deviation : ≤10% Ozone Concentration Deviation	≤10%
Inside Air Velocity : >2 ft/sec Inside Air Velocity	>2 ft/sec
Air Flow : A: 0–6 cfm; B: 10–20 cfm Air Flow	A: 0–6 cfm; B: 10–20 cfm
Testing & Sample Handling
Turntable Type : 360° Rotating Sample Holder Turntable Type	360° Rotating Sample Holder
Turntable Speed : 1 rpm Turntable Speed	1 rpm
Dynamic Strain Test : 6 Positions Dynamic Strain Test	6 Positions
Dynamic Test Frequency : 1–30 cycles/min Dynamic Test Frequency	1–30 cycles/min
Stroke Length : 0–80 mm Stroke Length	0–80 mm
Dynamic Rotation Speed : 6 rpm Dynamic Rotation Speed	6 rpm
Static Strain Test : 6 Specimen Positions Static Strain Test	6 Specimen Positions
Construction & Control
Inner Chamber Dimensions (W × H × D) : 500 × 600 × 500 mm Inner Chamber Dimensions (W × H × D)	500 × 600 × 500 mm
Outer Dimensions (W × H × D) : 1150 × 1500 × 750 mm Outer Dimensions (W × H × D)	1150 × 1500 × 750 mm
Chamber Material : Ozone-resistant mirror-finish stainless steel Chamber Material	Ozone-resistant mirror-finish stainless steel
Insulation Material : High-density glass fiber Insulation Material	High-density glass fiber
Door Seal : Double-layer high & low temperature resistant silicone seal Door Seal	Double-layer high & low temperature resistant silicone seal
Observation Window : Multi-layer hollow tempered glass Observation Window	Multi-layer hollow tempered glass
Sample Holder : Built-in 360° rotating sample holder Sample Holder	Built-in 360° rotating sample holder
Exhaust System : High-concentration ozone exhaust system Exhaust System	High-concentration ozone exhaust system
Controller : Imported microcomputer LCD controller Controller	Imported microcomputer LCD controller
Control Mode : PID + SSR control Control Mode	PID + SSR control
Temperature Sensor : PT100 (SUS304) Temperature Sensor	PT100 (SUS304)
Touch Screen : PID control interface Touch Screen	PID control interface
Heating System : Nickel-chromium alloy U-shaped fin heater Heating System	Nickel-chromium alloy U-shaped fin heater
Power Consumption : 3–5 kW Power Consumption	3–5 kW
Power Supply : AC 110V 220 V, 50/60Hz Power Supply	AC 110V 220 V, 50/60Hz
Net Weight : 280kg Net Weight	280kg
Gross Weight : 350kg Gross Weight	350kg
Package Size : 1120 × 1190 × 1990 mm Package Size	1120 × 1190 × 1990 mm

Dynamic Test Mode ➤ Dynamic Test Mode
Double-layer silicone door seal maintains an airtight chamber and minimizes ozone leakage. ➤ Double-layer silicone door seal maintains an airtight chamber and minimizes ozone leakage.
Integrated exhaust system safely removes residual ozone after each testing cycle. ➤ Integrated exhaust system safely removes residual ozone after each testing cycle.
Multi-layer tempered glass observation window allows convenient monitoring without disturbing the test environment. ➤ Multi-layer tempered glass observation window allows convenient monitoring without disturbing the test environment.
High-density glass fiber insulation improves thermal efficiency and temperature stability. ➤ High-density glass fiber insulation improves thermal efficiency and temperature stability.
Heavy-duty caster wheels enable easy movement and secure positioning in laboratory environments. ➤ Heavy-duty caster wheels enable easy movement and secure positioning in laboratory environments.
Integrated ozone purification system converts residual ozone back into oxygen, eliminating the need for external venting. ➤ Integrated ozone purification system converts residual ozone back into oxygen, eliminating the need for external venting.
Door interlock safety mechanism prevents accidental opening while ozone is present inside the chamber. ➤ Door interlock safety mechanism prevents accidental opening while ozone is present inside the chamber.
Ambient ozone leak sensor continuously monitors the surrounding environment for enhanced operator safety. ➤ Ambient ozone leak sensor continuously monitors the surrounding environment for enhanced operator safety.

Ideal for accelerated ozone aging evaluation of rubber, elastomers, seals, gaskets, hoses, cables, and polymer components under controlled ozone and temperature conditions ➤ Ideal for accelerated ozone aging evaluation of rubber, elastomers, seals, gaskets, hoses, cables, and polymer components under controlled ozone and temperature conditions
Supports material R&D, quality control, product validation, and standards-based durability testing in automotive, wire & cable, aerospace, industrial manufacturing, research laboratories, universities, and inspection laboratories ➤ Supports material R&D, quality control, product validation, and standards-based durability testing in automotive, wire & cable, aerospace, industrial manufacturing, research laboratories, universities, and inspection laboratories
