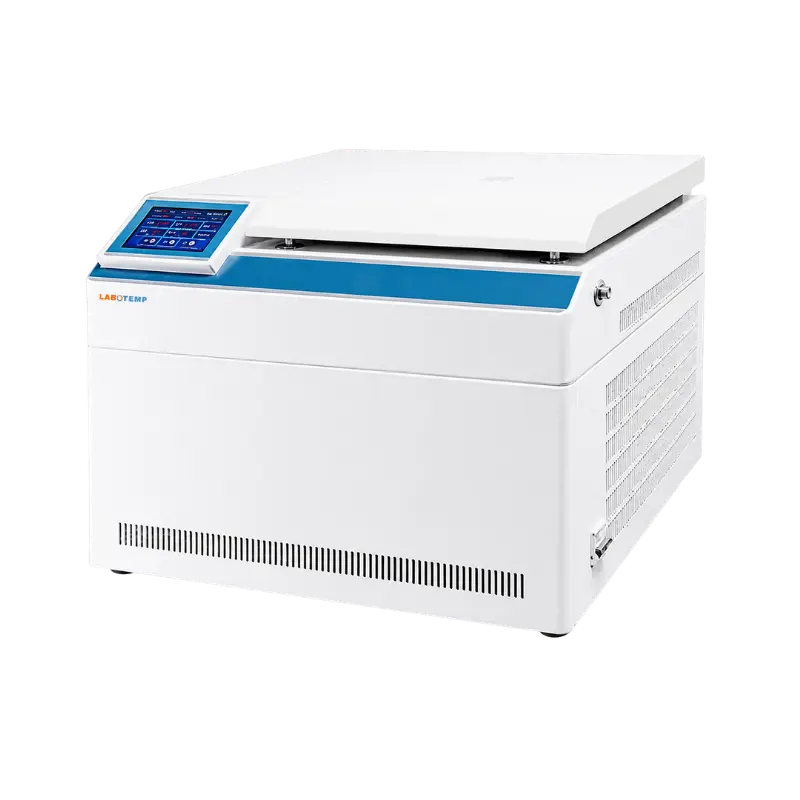

Labotemp Refrigerated Benchtop Centrifuge LRC-207 is a high-performance benchtop centrifuge engineered for precise sample separation in clinical, molecular biology, pharmaceutical, and research laboratories. Designed as a compact table top centrifuge with integrated cooling, it provides reliable processing of temperature-sensitive samples while maintaining excellent speed stability and separation efficiency. With a maximum speed of 6000 rpm, RCF up to 5502×g, and a temperature control range of -20°C to +40°C, it supports accurate handling of blood components, cell cultures, proteins, nucleic acids, and other sensitive biological materials.
Built for continuous laboratory use, this refrigerated centrifuge features a microprocessor control system with touchscreen operation, ±1°C temperature accuracy, and ±10 rpm speed precision for repeatable results. Its rapid pre-cooling function reduces chamber temperature from ambient to +4°C in approximately 5 minutes, while the CFC-free refrigeration system improves energy efficiency and environmental performance. The stainless-steel chamber, electronic safety door lock, automatic rotor recognition, and multiple acceleration and deceleration profiles ensure safe, efficient, and long-term operation. As a dependable centrifuge machine, LRC-207 combines flexible rotor compatibility with robust construction for demanding laboratory workflows.
Why Choose Labotemp Refrigerated Benchtop Centrifuge LRC-207?
✓ Precision Table Top Centrifuge: Stable 6000 rpm operation with accurate speed control
✓ Advanced Refrigerated Centrifuge: -20°C to +40°C cooling protects sensitive samples
✓ Reliable Centrifuge Machine: Stainless steel chamber ensures long service life
|
Maximum Speed : 6000 rpm Maximum Speed |
6000 rpm |
|
Maximum Capacity : 300 ml × 4 Maximum Capacity |
300 ml × 4 |
|
Maximum RCF : 5502 × g Maximum RCF |
5502 × g |
|
Input Voltage : AC 220V 50Hz / 110V 60Hz, 15A Input Voltage |
AC 220V 50Hz / 110V 60Hz, 15A |
|
Installation Type : Table-top Installation Type |
Table-top |
|
Temperature Range : -20°C to +40°C Temperature Range |
-20°C to +40°C |
|
Speed Accuracy : ±10 rpm Speed Accuracy |
±10 rpm |
|
Temperature Accuracy : ±1°C Temperature Accuracy |
±1°C |
|
Noise Level : ≤60 dB Noise Level |
≤60 dB |
|
Timing Range : 1 s ~ 17 h : 59 min : 59 s / Jog Timing Range |
1 s ~ 17 h : 59 min : 59 s / Jog |
|
Power Consumption : 1800 W Power Consumption |
1800 W |
|
Dimensions (L × W × H) : 570 × 615 × 504 mm Dimensions (L × W × H) |
570 × 615 × 504 mm |
|
Cooling System : CFC-free refrigerant with rapid pre-cooling Cooling System |
CFC-free refrigerant with rapid pre-cooling |
|
Pre-cooling Performance : From +21°C to +4°C in 5 minutes Pre-cooling Performance |
From +21°C to +4°C in 5 minutes |
|
Package Size (Rotors) : 360 x 310 x 260mm Package Size (Rotors) |
360 x 310 x 260mm |
|
Gross Weight (Rotors) : 4.1kg Gross Weight (Rotors) |
4.1kg |
|
Package Size : 830 x 780 x 700mm Package Size |
830 x 780 x 700mm |
|
Net Weight : 95 kg Net Weight |
95 kg |
|
Gross Weight : 149 kg Gross Weight |
149 kg |
| S.No | Rotor Type | Capacity | Max Speed | Max RCF |
|---|---|---|---|---|
| 1 | Swing Rotor 1 | 300 ml × 4 Adaptor: 250 ml × 4, 100 ml × 4, 50 ml × 12 10/15 ml × 40, 10/15 ml (▲) × 20 5 ml (vacuum tube) × 56, 5 ml × 76 | 4500 rpm | 3645 × g |
| 2 | Swing Rotor 2 | 100 ml × 8 Adaptor: 100 ml × 8, 50 ml × 8, 10/15 ml (●) × 32 | 4500 rpm | 3645 × g |
| 3 | Angle Rotor | 50 ml × 6 | 6000 rpm | 5502 × g |
| 4 | Microplate Rotor | 96 well × 2 96 well × 2 × 2 | 5000 rpm | 3530 × g |
