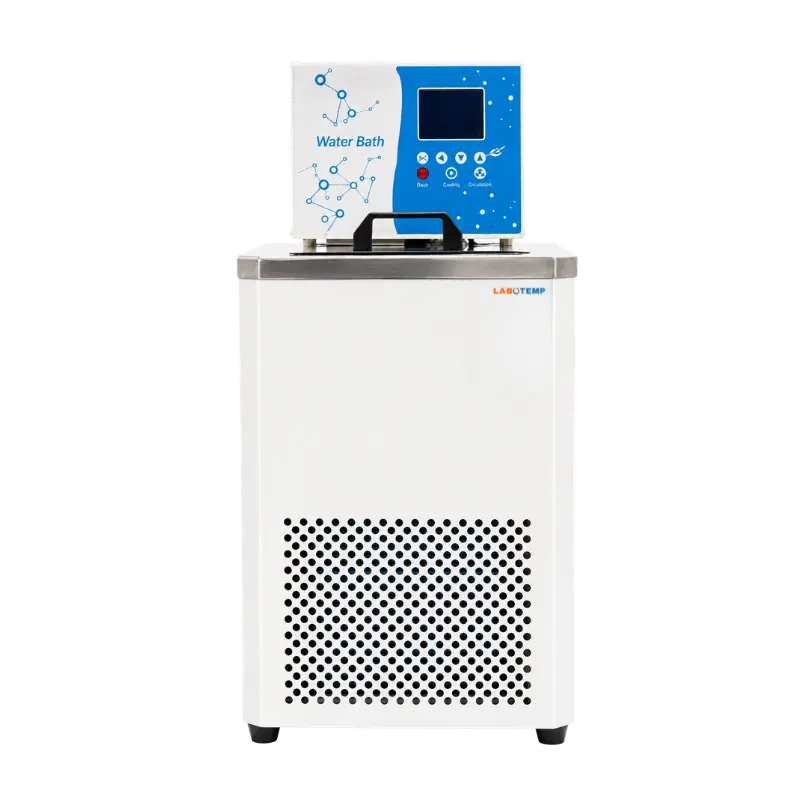

Labotemp Low Temperature Refrigerated Circulating Bath LCB-101 is designed for precise temperature control in laboratories requiring stable low-temperature conditions for testing, calibration, sample preparation, and research applications. With a temperature range of -5°C to 100°C, a 10 L stainless steel bath, and high-resolution PID control, this laboratory water bath delivers reliable thermal stability for demanding scientific workflows. The integrated refrigeration system and circulation pump ensure uniform temperature distribution throughout the bath, making it suitable for pharmaceutical, biotechnology, chemical, environmental, and academic laboratories where accuracy and repeatability are essential.

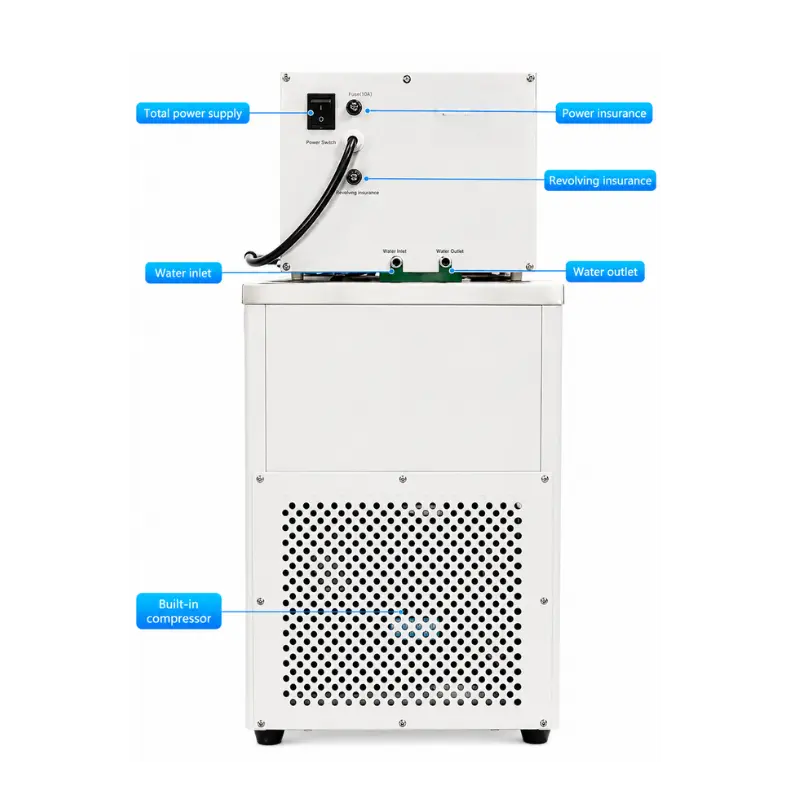

Built for long-term performance, the LCB-101 features a corrosion-resistant stainless steel work tank, durable anti-corrosion housing, and a high-efficiency compressor for dependable cooling performance. The concealed cooling coil design maximizes usable bath space while improving heat exchange efficiency. Safety-focused features including over-temperature protection, power protection, and a convenient drain valve help support secure operation and easy maintenance. In addition to direct sample immersion, the external circulation capability allows precise temperature control of connected equipment, reactors, and analytical systems, making this refrigerated circulating bath a versatile solution for modern laboratory environments.
Why Choose Labotemp Refrigerated Circulating Bath LCB-101?
✓High-precision PID temperature control: Excellent stability and uniformity for reproducible results.
✓Dual functionality: Suitable for both laboratory water bath applications and external circulation temperature control.
✓Durable stainless steel construction: Corrosion-resistant components ensure extended service life.
|
Tank Volume : 10 L Tank Volume |
10 L |
|
Temperature Range : -5°C to 100°C Temperature Range |
-5°C to 100°C |
|
Power Supply : 220V 50Hz Power Supply |
220V 50Hz |
|
Temperature Resolution : 0.01°C Temperature Resolution |
0.01°C |
|
Temperature Volatility (Stability) : ±0.05°C Temperature Volatility (Stability) |
±0.05°C |
|
Power : 1.3 kW Power |
1.3 kW |
|
Slot Opening : 180 × 160 mm Slot Opening |
180 × 160 mm |
|
Groove Depth : 200 mm Groove Depth |
200 mm |
|
Lift : 1.4m Lift |
1.4m |
|
Pump Flow : 6 L/min Pump Flow |
6 L/min |
|
Temperature Control : PID Control Temperature Control |
PID Control |
|
Temperature Sensor : PT100 Temperature Sensor |
PT100 |
|
Drain Valve : Yes Drain Valve |
Yes |
|
Built-in Compressor : Yes Built-in Compressor |
Yes |
|
Construction Material : Stainless Steel Tank, Anti-corrosion Shell Construction Material |
Stainless Steel Tank, Anti-corrosion Shell |
|
Dimensions (W×D×H) : 320 × 370 × 765 mm Dimensions (W×D×H) |
320 × 370 × 765 mm |
|
Net Weight : 39kg Net Weight |
39kg |
|
Gross Weight : 45kg Gross Weight |
45kg |
|
Package Size : 540x470x980mm Package Size |
540x470x980mm |
Temperature Volatility (Stability): ±0.05°C
Temperature Sensor: PT100
Temperature Resolution: 0.01°C
Temperature Range: -5°C to 100°C
Temperature Stability (Volatility): ±0.05°C
Temperature Resolution: 0.01°C
Temperature Range: -10°C to 100°C
Tank Volume: 15 L
Voltage: AC 230V/50Hz; AC 120V/60Hz
Temperature Range: Room temp. to 100°C
Relative Humidity: < 80%
Recommended Working Environment: 5°C – 40°C
Working Temperature: 0°C – 40°C
Water Bath Temperature Range: 0°C – 75°C (0°C – 99°C Optional)
Water Bath Tank Size: 210 × 170 × 55 mm
Tissue water bath capacity: 2.5 L
