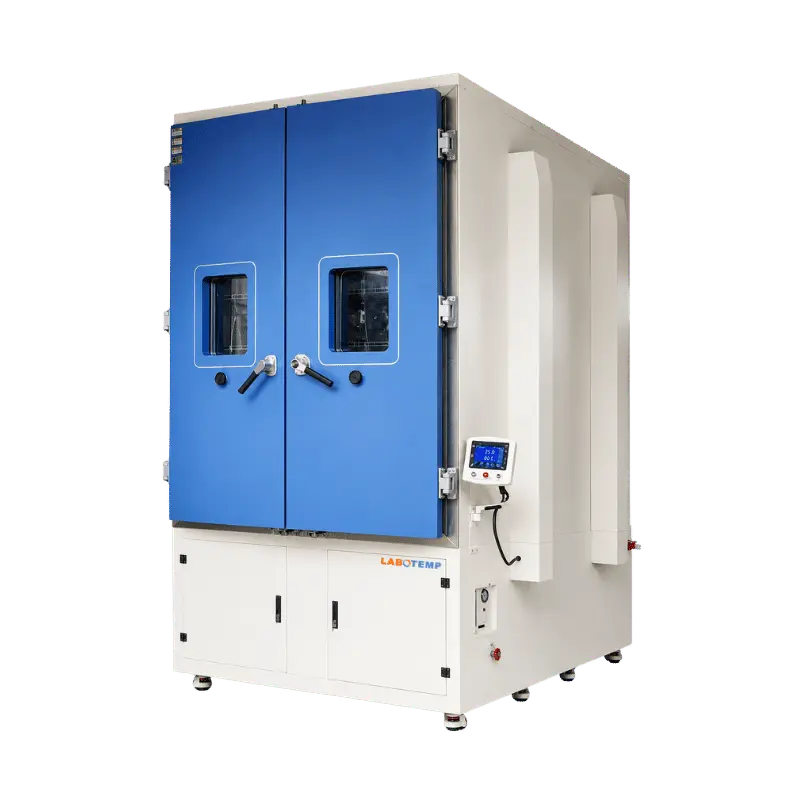

Sand Dust Test Chamber SDC-05

Name: Sand Dust Test Chamber SDC-05
Brand: Labotemp
SKU: SDC-05
Price: 66222.00 USD
Availability: InStock
Rating: 5 (663 reviews)

Labotemp Sand Dust Test Chamber SDC-05 provides a large-capacity environment for controlled dust exposure testing of electronics, automotive components, military equipment, and industrial products. With an 8000 L interior volume, 2000 × 2000 × 2000 mm working space, ambient to +50°C temperature range, and humidity below 30% RH, it supports large specimens and demanding test programs. Designed for IP5X and IP6X testing based on IEC 60529 and ISO 20653 test methods, the chamber offers programmable blowing and test times up to 99 h 59 min, a dust-proof 16 A specimen power outlet, and a vacuum interface for connected test samples.

A vertical dust circulation system continuously moves test dust through the workroom, while a vibration-assisted hopper helps prevent talcum powder buildup and supports repeatable exposure conditions. A Nichrome heater dries the circulating powder, and the 7-inch PID programmable touchscreen provides control of temperature, blower, heating, vacuum, testing, and timing, with Ethernet and USB communication for software control and data download. The SUS304 stainless steel interior, tempered viewing windows with dust-resistant sealing, electromagnetic door locks, emergency stop, and multiple electrical safety protections support dependable long-term operation.

Why Choose Labotemp Sand Dust Test Chamber SDC-05?

✓ Controlled Dust Simulation: Vertical circulation and vibration-assisted dust handling improve test consistency.
✓ Advanced Test Control: PID touchscreen, Ethernet, USB, vacuum and programmable test timing.
✓ Built for Long-Term Use: SUS304 interior, electromagnetic locking, viewing windows, and multi-level safety protection.

$66222

Datasheet

General Specifications
Interior Dimensions (D × W × H) : 2000 × 2000 × 2000 mm Interior Dimensions (D × W × H)	2000 × 2000 × 2000 mm
Overall Dimensions (D × W × H) : 2400 × 2550 × 3200 mm Overall Dimensions (D × W × H)	2400 × 2550 × 3200 mm
Interior Volume : 8000 L Interior Volume	8000 L
Door : Two Doors with Two Viewing Windows Door	Two Doors with Two Viewing Windows
Temperature Range : Ambient to +50°C Temperature Range	Ambient to +50°C
Humidity Range : <30% RH Humidity Range	<30% RH
Normal Wire Diameter : 50 μm Normal Wire Diameter	50 μm
Nominal Width of Gap Between Wires : 75 μm Nominal Width of Gap Between Wires	75 μm
Blowing Time : 0 to 99 h 59 min Blowing Time	0 to 99 h 59 min
Test Time : 0 to 99 h 59 min Test Time	0 to 99 h 59 min
Power Supply : 220 V, 60 Hz, 1 Phase Power Supply	220 V, 60 Hz, 1 Phase
Dust Testing & Control System
Specimen Power Outlet : Dust-Proof Socket, 16 A Specimen Power Outlet	Dust-Proof Socket, 16 A
Heating Element : Nichrome Heater Heating Element	Nichrome Heater
Vacuum System : Pressure Gauge, Air Filter, Pressure Regulator, Connecting Tube Vacuum System	Pressure Gauge, Air Filter, Pressure Regulator, Connecting Tube
Vacuum Sample Interface : Yes Vacuum Sample Interface	Yes
Controller : Programmable Color LCD Touchscreen Controller Controller	Programmable Color LCD Touchscreen Controller
Controller Interface : Ethernet, PC Link, USB Controller Interface	Ethernet, PC Link, USB
View Window Size : 475 × 475 mm View Window Size	475 × 475 mm
Door Lock : Electromagnetic Lock Door Lock	Electromagnetic Lock
Interior Lighting : Built-in Dustproof LED Lighting Interior Lighting	Built-in Dustproof LED Lighting
Sample Shelf Load Capacity : 50 kg Sample Shelf Load Capacity	50 kg
Mesh Sieve Size : 450 × 450 mm Mesh Sieve Size	450 × 450 mm
Construction & Safety
Exterior Material : A3 Steel Plate with Protective Coating Exterior Material	A3 Steel Plate with Protective Coating
Interior Material : SUS304 Stainless Steel Interior Material	SUS304 Stainless Steel
Observation Window : Tempered Glass with Double-Layer Thermo-Stability Silicone Rubber Sealing Observation Window	Tempered Glass with Double-Layer Thermo-Stability Silicone Rubber Sealing
Standard Configuration : Sample Shelf, Dust Wiper, Talcum Powder 5 kg Standard Configuration	Sample Shelf, Dust Wiper, Talcum Powder 5 kg
Safety Protection : Over-Temperature Protection, Over-Current Protection, Earth Leakage Protection, Phase Sequence Protection Safety Protection	Over-Temperature Protection, Over-Current Protection, Earth Leakage Protection, Phase Sequence Protection
Emergency Stop : Yes Emergency Stop	Yes
Castors : 4 Adjustable Castors with Brakes Castors	4 Adjustable Castors with Brakes
Operating Environment : 5°C to +35°C, ≤85% RH Operating Environment	5°C to +35°C, ≤85% RH
Maximum Noise : 65 dBA Maximum Noise	65 dBA
Shipping Dimension
Packaging Dimension (D × W × H) : 2600 × 2800 × 3400 mm Packaging Dimension (D × W × H)	2600 × 2800 × 3400 mm
Gross Weight : 3Ton Gross Weight	3Ton

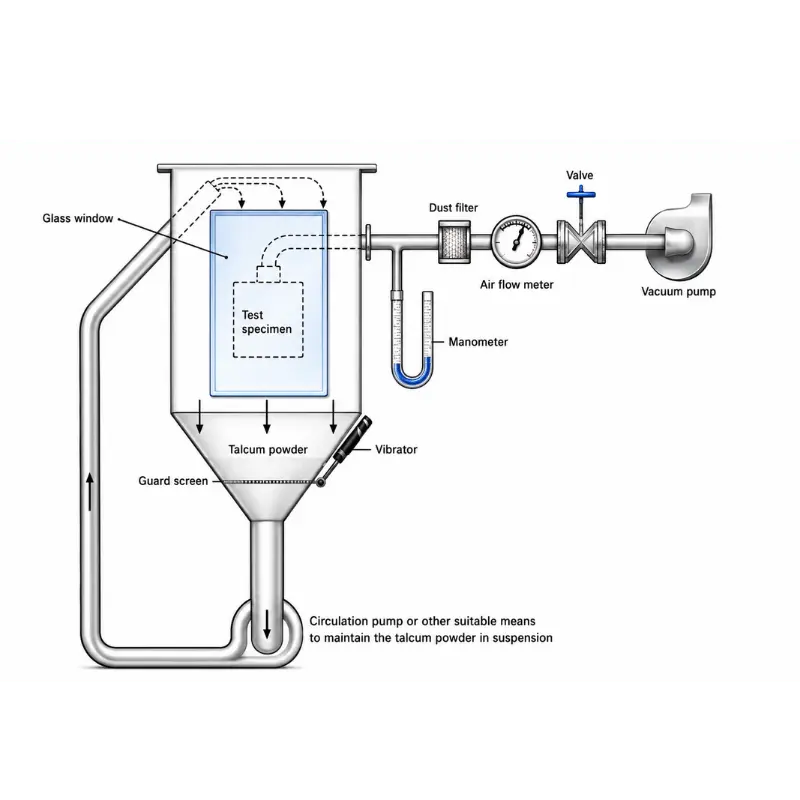

Vertical Dust Circulation ➤ Vertical Dust Circulation
Large 8000 L working volume accommodates large components, assemblies, and multiple test specimens. ➤ Large 8000 L working volume accommodates large components, assemblies, and multiple test specimens.
Vibration-assisted hopper helps reduce talcum powder accumulation on the funnel walls during testing. ➤ Vibration-assisted hopper helps reduce talcum powder accumulation on the funnel walls during testing.
Reusable dust circulation system allows test dust to be recovered and reused. ➤ Reusable dust circulation system allows test dust to be recovered and reused.
Nichrome heating element helps dry circulating talcum powder and maintain suitable test conditions. ➤ Nichrome heating element helps dry circulating talcum powder and maintain suitable test conditions.
Integrated vacuum interface allows direct connection of the test specimen to a vacuum pump for enclosure ingress testing. ➤ Integrated vacuum interface allows direct connection of the test specimen to a vacuum pump for enclosure ingress testing.
7-inch PID programmable color touchscreen provides centralized control of temperature, blower, heating, vacuum, test sequence, and timing. ➤ 7-inch PID programmable color touchscreen provides centralized control of temperature, blower, heating, vacuum, test sequence, and timing.
Ethernet and USB communication support PC-based operation and direct test-data download. ➤ Ethernet and USB communication support PC-based operation and direct test-data download.
Built-in dustproof LED lighting and viewing windows allow clear observation of test specimens during operation. ➤ Built-in dustproof LED lighting and viewing windows allow clear observation of test specimens during operation.
Electromagnetic door lock provides controlled access and helps prevent unintended opening during testing. ➤ Electromagnetic door lock provides controlled access and helps prevent unintended opening during testing.
16 A internal specimen power outlet allows powered products to operate during dust testing. ➤ 16 A internal specimen power outlet allows powered products to operate during dust testing.
SUS304 stainless steel interior resists corrosion from dust, moisture, and temperature variations and supports easy cleaning. ➤ SUS304 stainless steel interior resists corrosion from dust, moisture, and temperature variations and supports easy cleaning.
Multiple electrical protections include over-temperature, over-current, earth-leakage, and phase-sequence protection. ➤ Multiple electrical protections include over-temperature, over-current, earth-leakage, and phase-sequence protection.
Adjustable casters with brakes facilitate equipment movement and stable positioning. ➤ Adjustable casters with brakes facilitate equipment movement and stable positioning.
Standard configuration includes a sample shelf, dust wiper, and 5 kg of talcum powder. ➤ Standard configuration includes a sample shelf, dust wiper, and 5 kg of talcum powder.
Standard and customized configurations are available for different specimen sizes and testing requirements. ➤ Standard and customized configurations are available for different specimen sizes and testing requirements.
Designed for IP5X and IP6X testing based on IEC 60529 and ISO 20653 test methods.  ➤ Designed for IP5X and IP6X testing based on IEC 60529 and ISO 20653 test methods.

Electronics & Electrical Equipment Testing:Evaluates the resistance of electronic devices, electrical components, and enclosures to controlled dust exposure and dust ingress Electronics & Electrical Equipment Testing
Evaluates the resistance of electronic devices, electrical components, and enclosures to controlled dust exposure and dust ingress
Automotive Component Testing:Supports sand and dust testing of automotive components, assemblies, and equipment designed for demanding environmental conditions Automotive Component Testing
Supports sand and dust testing of automotive components, assemblies, and equipment designed for demanding environmental conditions
Military & Defense Equipment:Used to assess the resistance of military equipment and components to airborne dust and simulated environmental exposure Military & Defense Equipment
Used to assess the resistance of military equipment and components to airborne dust and simulated environmental exposure
Industrial Equipment Testing:Helps manufacturers evaluate enclosure protection and product durability when equipment is exposed to dusty operating environments Industrial Equipment Testing
Helps manufacturers evaluate enclosure protection and product durability when equipment is exposed to dusty operating environments
IP5X & IP6X Testing:Designed for conducting dust ingress tests based on IEC 60529 and ISO 20653 test methods for suitable products and enclosures IP5X & IP6X Testing
Designed for conducting dust ingress tests based on IEC 60529 and ISO 20653 test methods for suitable products and enclosures
Large Product & Assembly Testing:The spacious 8000 L workroom supports testing of large components, assemblies, and multiple specimens under controlled sand and dust conditions Large Product & Assembly Testing
The spacious 8000 L workroom supports testing of large components, assemblies, and multiple specimens under controlled sand and dust conditions
