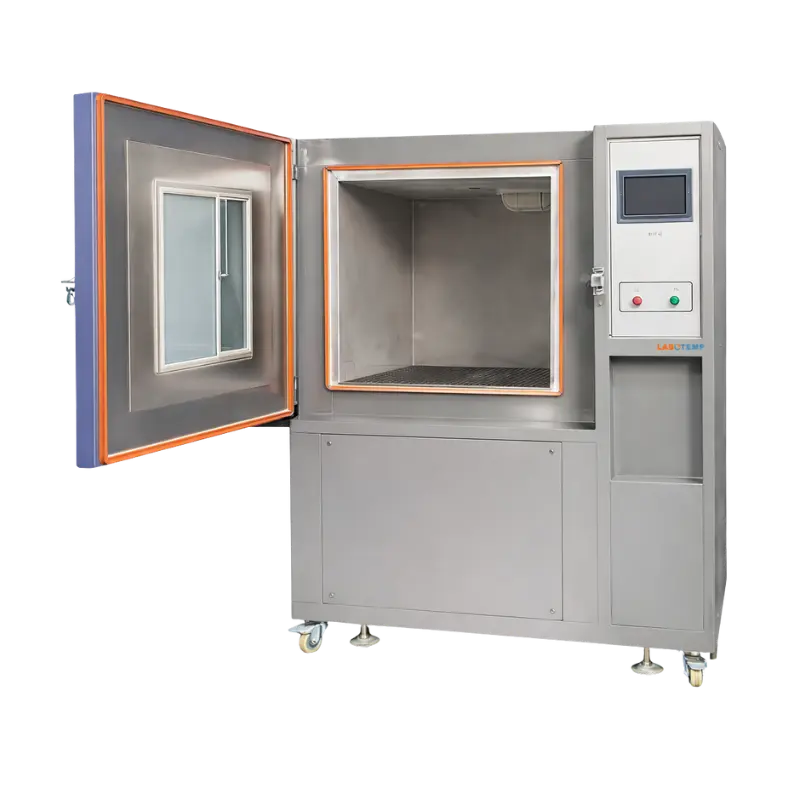

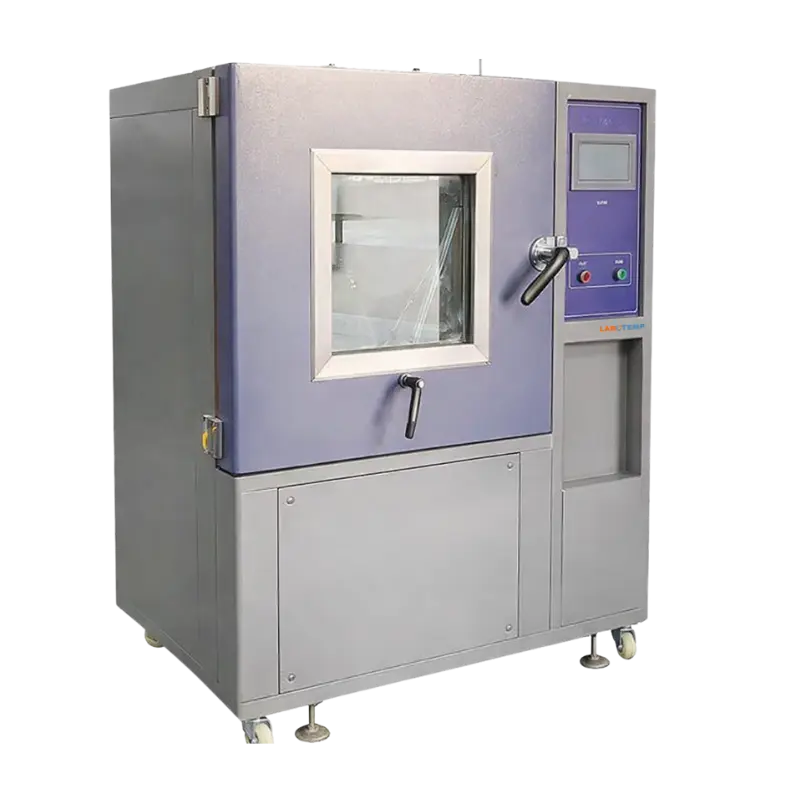

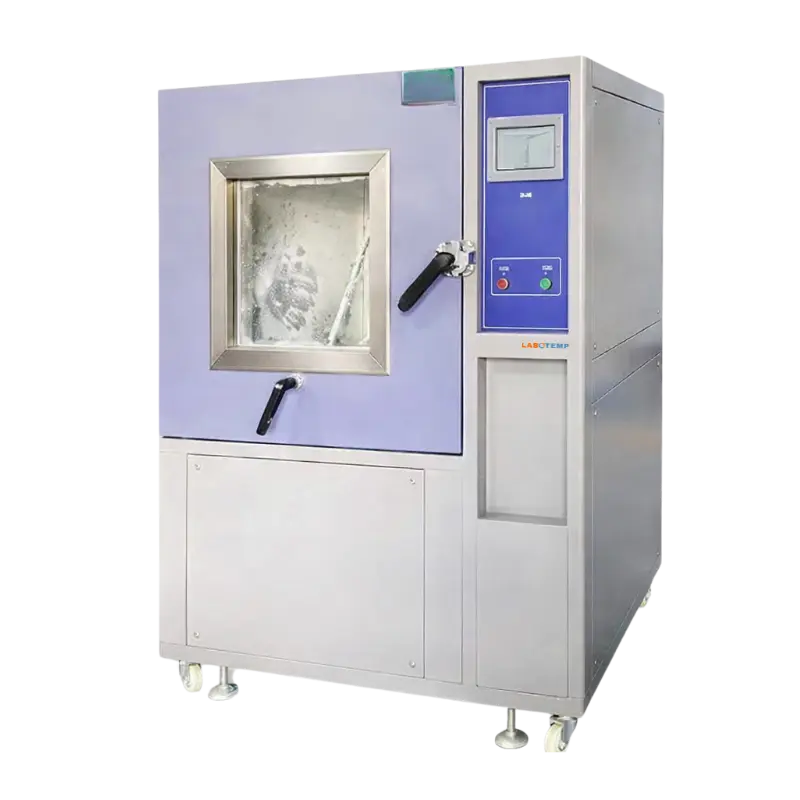

Sand Dust Test Chamber SDC-02

Name: Sand Dust Test Chamber SDC-02
Brand: Labotemp
SKU: SDC-02
Rating: 4.5 (684 reviews)

Labotemp Dust Test Chamber SDC-02 is designed to evaluate dust resistance of automotive, electronics, telecom, solar, aerospace and industrial components under controlled floating (F) and flowing (C) dust conditions. It ensures reliable operation of parts such as instrument panels, sensors, electrical enclosures, gear shafts and door locks by verifying sealing performance and operational safety. The chamber features a high-performance dust spray system with selectable floating dust modes, integrated vibration for uniform dust distribution, and a precision dust collector for consistent test results, helping products comply with IEC 60529 IP5X and IP6X standards.

Designed for laboratories and quality control environments, the SDC-02 provides reliable and repeatable sand and dust testing with intuitive controls. It operates within a test temperature range of 20°C ±15°C, humidity range of 45%–85% RH, and programmable time control from 0 to 999 seconds for precise test management and IP protection verification. Manufactured by trusted test chamber manufacturer for testing.

Why choose Labotemp Dust Test Chamber SDC-02?
✓ Reliable dust simulation: Independent flowing modes plus vibration ensure uniform exposure.
✓ Consistent, repeatable tests: Programmable time, temperature and humidity controls for lab-grade results.
✓ Certified quality: CE and ISO 13485 compliance for trusted performance.

$7884

Test Temperature : 20°C ± 15°C Test Temperature	20°C ± 15°C
Maximum power consumption : AC220V 5KW Maximum power consumption	AC220V 5KW
Test humidity : 45% ~ 85% RH Test humidity	45% ~ 85% RH
External dimensions (W×D×H) cm : 125×120×180 External dimensions (W×D×H) cm	125×120×180
Internal size (W×D×H) cm : 80×80×80 Internal size (W×D×H) cm	80×80×80
Time control : 0 - 999 sec Time control	0 - 999 sec
Net Weight : 280 kg Net Weight	280 kg
Gross Weight : 370 kg Gross Weight	370 kg

0–9999 sec Smart Timer
➤ 0–9999 sec Smart Timer
High-performance dust spray system with selectable dust modes
➤ High-performance dust spray system with selectable dust modes
Built-in vibration system for stable dust concentration
➤ Built-in vibration system for stable dust concentration
Precision dust collector for accurate measurements
➤ Precision dust collector for accurate measurements

Sand and Dust Test Chambers SDC-02 are designed to simulate harsh dusty environments for testing products across electronics, telecom, solar, automotive, aerospace, and industrial sectors
➤ Sand and Dust Test Chambers SDC-02 are designed to simulate harsh dusty environments for testing products across electronics, telecom, solar, automotive, aerospace, and industrial sectors
Our chambers evaluate dust resistance and sealing performance, enabling manufacturers to verify IP protection ratings, ensure reliable product operation, and support product development, quality control, and certification testing
➤ Our chambers evaluate dust resistance and sealing performance, enabling manufacturers to verify IP protection ratings, ensure reliable product operation, and support product development, quality control, and certification testing

Vacuum system
➤ Vacuum system

0–9999 sec Smart Timer
High-performance dust spray system with selectable dust modes
Built-in vibration system for stable dust concentration
Precision dust collector for accurate measurements

Vacuum system

Sand and Dust Test Chambers SDC-02 are designed to simulate harsh dusty environments for testing products across electronics, telecom, solar, automotive, aerospace, and industrial sectors. Our chambers evaluate dust resistance and sealing performance, enabling manufacturers to verify IP protection ratings, ensure reliable product operation, and support product development, quality control, and certification testing.
