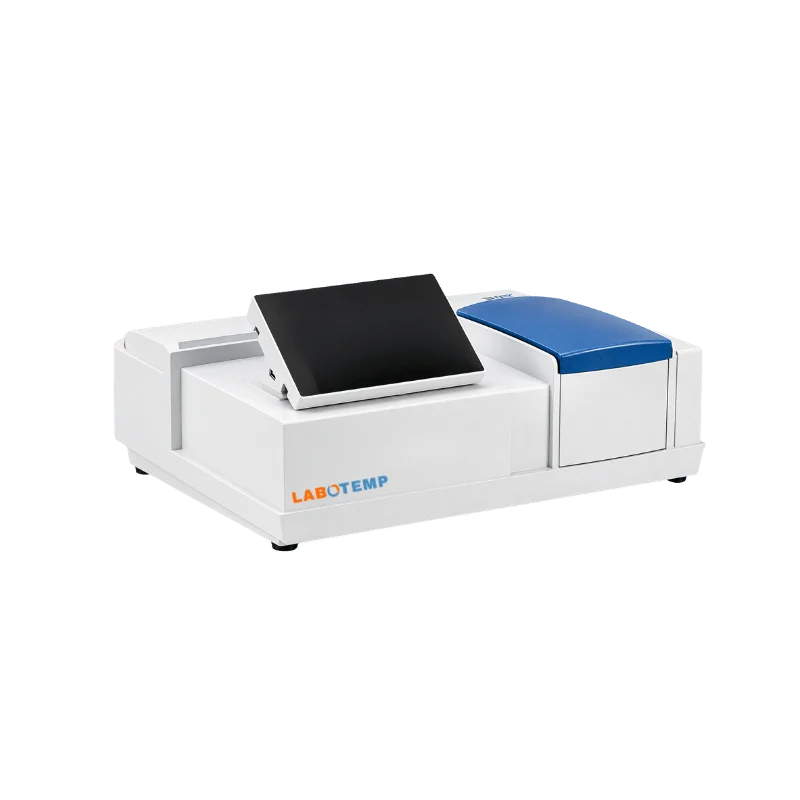

UV-Vis Double Beam Spectrophotometer NSP-03

Name: UV-Vis Double Beam Spectrophotometer NSP-03
Brand: Labotemp
SKU: NSP-03
Price: 5718.00 USD
Availability: InStock
Rating: 4.7 (985 reviews)

Labotemp UV-Vis Double Beam Spectrophotometer NSP-03 delivers reliable optical analysis for laboratory quality control, scientific research, and routine spectrophotometric measurements. Built with a double-beam optical system, Czerny-Turner monochromator, 200 mm focal length, 1600 lines/mm grating, and silicon photocell detector, the instrument covers a broad wavelength range of 190–1100 nm. Its 8-inch color touchscreen provides convenient operation, while wavelength accuracy of ±0.3 nm and repeatability of ≤0.1 nm support consistent analytical measurements.

The NSP-03 incorporates separate deuterium and tungsten-halogen lamp sources with a dedicated mounting system for UV and visible wavelength analysis. Fast, medium, and slow scanning speeds provide flexible measurement control, while USB connectivity supports data communication and the instrument offers strong data processing and storage capabilities. With applications across medicine and healthcare, drug sensitivity testing, environmental monitoring, biochemistry, quality control, and scientific research, the NSP-03 provides a versatile solution for UV-Vis analysis.

Why Choose Labotemp UV-Vis Double Beam Spectrophotometer NSP-03?

✓ Double Beam Optical System: Supports stable and reliable spectrophotometric measurements for laboratory analysis.
✓ Wide 190–1100 nm Range: Covers both ultraviolet and visible wavelength regions for diverse analytical applications.
✓ 8-Inch Color Touchscreen: Provides an intuitive interface for convenient instrument operation and wavelength setting.

$5718

Datasheet

General & Optical System
Product Type : UV-Vis Double Beam Spectrophotometer Product Type	UV-Vis Double Beam Spectrophotometer
Photometry : Double Beam Photometry	Double Beam
Monochromator Type : Czerny-Turner Monochromator Type	Czerny-Turner
Focal Length : 200 mm Focal Length	200 mm
Grating : 1600 lines/mm Grating	1600 lines/mm
Detector : Silicon Photocell Detector	Silicon Photocell
Spectrum Bandwidth : 2 nm or 1 nm Spectrum Bandwidth	2 nm or 1 nm
Wavelength Setting : 8-inch Color Touchscreen Wavelength Setting	8-inch Color Touchscreen
Wavelength Range : 190–1100 nm Wavelength Range	190–1100 nm
Wavelength Accuracy : ±0.3 nm Wavelength Accuracy	±0.3 nm
Wavelength Repeatability : ≤0.1 nm Wavelength Repeatability	≤0.1 nm
Scanning Speed : Fast / Medium / Slow Scanning Speed	Fast / Medium / Slow
Stray Light : ≤0.02%T at 220 nm NaI, 360 nm NaNO₂ Stray Light	≤0.02%T at 220 nm NaI, 360 nm NaNO₂
Photometric Performance
Photometric Range : 0.00–200.0%T<br>-0.301–4.000A<br>0.000–9999C Photometric Range	0.00–200.0%T -0.301–4.000A 0.000–9999C
Photometric Accuracy : ±0.3%T<br>±0.002 Abs (0–0.5A)<br>±0.004 Abs (0.5–1A) Photometric Accuracy	±0.3%T ±0.002 Abs (0–0.5A) ±0.004 Abs (0.5–1A)
Photometric Repeatability : ≤0.15%T<br>0.001 Abs (0–0.5A)<br>0.002 Abs (0.5–1A) Photometric Repeatability	≤0.15%T 0.001 Abs (0–0.5A) 0.002 Abs (0.5–1A)
Baseline : ≤±0.0008A (200–1090 nm) Baseline	≤±0.0008A (200–1090 nm)
Sound Emission : 100%T: ≤0.1%T<br>0%T: ≤0.02%T Sound Emission	100%T: ≤0.1%T 0%T: ≤0.02%T
Drifting : ≤0.004 Abs/h at 250 nm and 500 nm after 2 h warm-up Drifting	≤0.004 Abs/h at 250 nm and 500 nm after 2 h warm-up
Light Source, Communication & Electrical
Light Source : Hamamatsu D2 Lamp, Osram Halogen Tungsten Lamp Light Source	Hamamatsu D2 Lamp, Osram Halogen Tungsten Lamp
Communication Port : USB Communication Port	USB
Power Supply : AC 220V/110 ±22V, 50Hz/60Hz ±1Hz Power Supply	AC 220V/110 ±22V, 50Hz/60Hz ±1Hz
Power Consumption : 200 W Power Consumption	200 W
Dimensions & Weight
External Size (W × D × H) : 584 × 504 × 360 mm External Size (W × D × H)	584 × 504 × 360 mm
Shipping Size (W × D × H) : 730 × 630 × 450 mm Shipping Size (W × D × H)	730 × 630 × 450 mm
Net Weight / Gross Weight : 34 / 45 kg Net Weight / Gross Weight	34 / 45 kg

Double-beam optical system ➤ Double-beam optical system
Czerny-Turner monochromator with a 200 mm focal length provides controlled wavelength selection. ➤ Czerny-Turner monochromator with a 200 mm focal length provides controlled wavelength selection.
1600 lines/mm diffraction grating supports wavelength separation across the measurement range. ➤ 1600 lines/mm diffraction grating supports wavelength separation across the measurement range.
Silicon photocell detector enables UV-Vis signal detection. ➤ Silicon photocell detector enables UV-Vis signal detection.
190–1100 nm wavelength range covers ultraviolet and visible analysis. ➤ 190–1100 nm wavelength range covers ultraviolet and visible analysis.
Double-beam optical system supports stable and reliable UV-Vis measurements. ➤ Double-beam optical system supports stable and reliable UV-Vis measurements.
8-inch color touchscreen provides convenient instrument operation and wavelength setting. ➤ 8-inch color touchscreen provides convenient instrument operation and wavelength setting.
2 nm or 1 nm spectral bandwidth supports flexible measurement requirements. ➤ 2 nm or 1 nm spectral bandwidth supports flexible measurement requirements.
±0.3 nm wavelength accuracy supports consistent wavelength measurements. ➤ ±0.3 nm wavelength accuracy supports consistent wavelength measurements.
≤0.1 nm wavelength repeatability provides repeatable wavelength positioning. ➤ ≤0.1 nm wavelength repeatability provides repeatable wavelength positioning.
Fast, medium, and slow scanning speeds allow flexible spectral measurement. ➤ Fast, medium, and slow scanning speeds allow flexible spectral measurement.
Low stray light of ≤0.02%T supports reliable photometric measurements. ➤ Low stray light of ≤0.02%T supports reliable photometric measurements.
Photometric range covers 0.00–200.0%T, -0.301–4.000A, and 0.000–9999C. ➤ Photometric range covers 0.00–200.0%T, -0.301–4.000A, and 0.000–9999C.
Deuterium and Osram halogen tungsten lamps provide UV and visible light sources. ➤ Deuterium and Osram halogen tungsten lamps provide UV and visible light sources.
8-inch touchscreen interface provides direct control of instrument functions. ➤ 8-inch touchscreen interface provides direct control of instrument functions.
USB communication supports data transfer and connectivity. ➤ USB communication supports data transfer and connectivity.
Data processing and storage capabilities support laboratory measurement workflows. ➤ Data processing and storage capabilities support laboratory measurement workflows.
Baseline stability of ≤±0.0008A from 200–1090 nm supports stable measurements. ➤ Baseline stability of ≤±0.0008A from 200–1090 nm supports stable measurements.
Automatic performance functions support routine spectrophotometric analysis. ➤ Automatic performance functions support routine spectrophotometric analysis.
