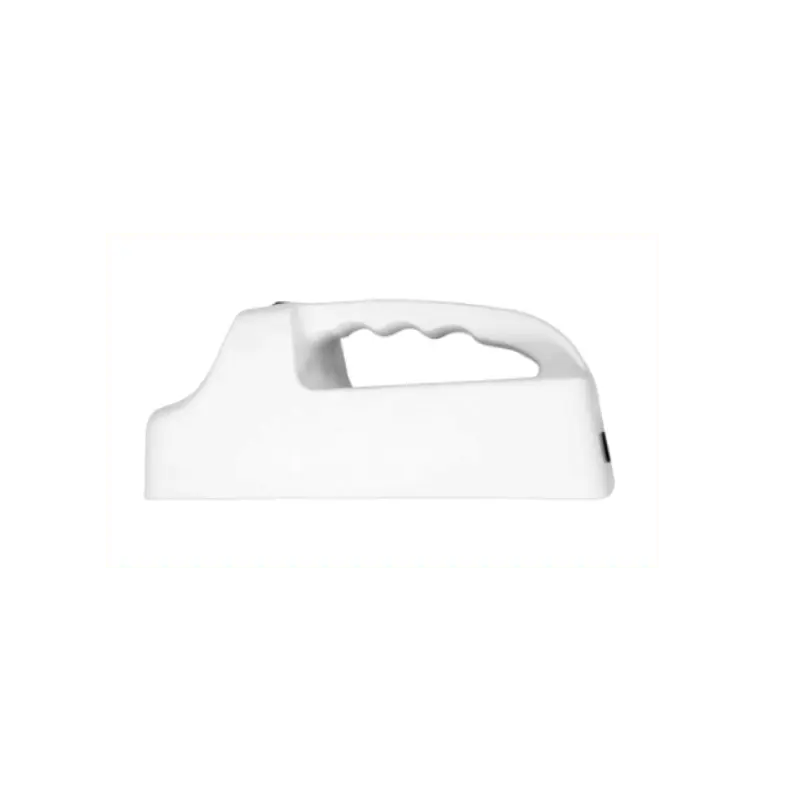

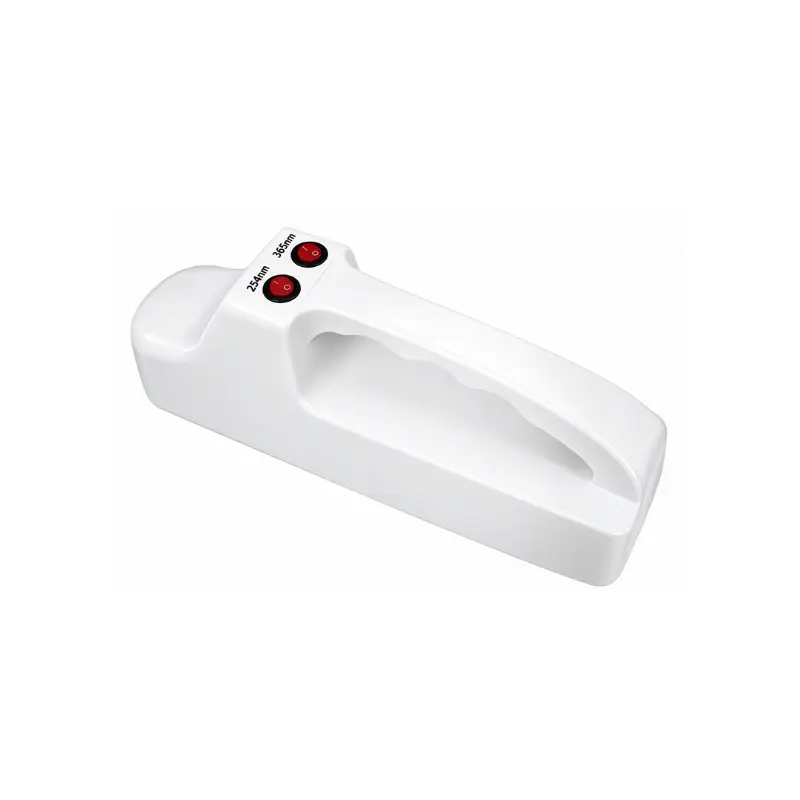

Labotemp Handheld UV Analyzer LUV-101 provides ultraviolet illumination at 254 nm and 365 nm, supporting fluorescence observation and sample examination across laboratory applications. The portable instrument allows either wavelength to operate individually or both wavelengths to operate simultaneously, accommodating different fluorescence analysis requirements. Its 150 × 50 mm UV filter, compact design, and lightweight 0.6 kg body make it suitable for convenient handling during routine laboratory work.
This UV Analyzer LUV-101 features an integrated optical filter designed to block visible light emitted by the UV lamp, helping deliver high purity ultraviolet illumination at the specified wavelengths. Its low power consumption and low heat generation support extended operation, while immediate startup and shutdown eliminate the need for warm up or cool down periods. Powered by an AC 220 V supply with ±10% tolerance at 50 Hz, the analyzer supports fluorescence observation and identification work in biological, chemical, pharmaceutical, food testing, medical, and forensic laboratories.
Why Choose Labotemp Handheld UV Analyzer LUV-101?
✓ Dual UV Wavelengths: Provides 254 nm and 365 nm illumination, individually or simultaneously.
✓ Integrated UV Filter: Blocks visible light from the UV lamp for high purity ultraviolet illumination.
✓ Compact and Lightweight: Measures 281 × 80 × 130 mm and weighs only 0.6 kg for convenient handling.
| UV Illumination | |
|
Wavelength : 254 nm and 365 nm Wavelength |
254 nm and 365 nm |
|
Wavelength Operation : Individual or simultaneous operation Wavelength Operation |
Individual or simultaneous operation |
|
UV Filter Size : 150 × 50 mm UV Filter Size |
150 × 50 mm |
|
Optical Filter : Integrated filter to block visible light emitted by the UV lamp Optical Filter |
Integrated filter to block visible light emitted by the UV lamp |
| Electrical Specifications | |
|
Power Supply : AC 220 V ±10%, 50 Hz Power Supply |
AC 220 V ±10%, 50 Hz |
|
Power Consumption : Minimal power consumption, exact rating not specified Power Consumption |
Minimal power consumption, exact rating not specified |
| Dimensions and Weight | |
|
External Dimensions : 281 × 80 × 130 mm External Dimensions |
281 × 80 × 130 mm |
|
Shipping Dimensions : 340 × 120 × 150 mm Shipping Dimensions |
340 × 120 × 150 mm |
|
Net Weight : 0.6 kg Net Weight |
0.6 kg |
|
Gross Weight : 1 kg Gross Weight |
1 kg |
Wavelength Operation: Individual or simultaneous operation
Wavelength: 254 nm and 365 nm
UV Illumination:
UV Filter Size: 150 × 50 mm
