Specifications
Maximum Capacity :
4 × 400 ml
Maximum Capacity
4 × 400 ml
Maximum Speed :
6000 rpm
Maximum Speed
6000 rpm
Maximum RCF :
6080 × g
Maximum RCF
6080 × g
Noise Level :
≤58 dB(A)
Noise Level
≤58 dB(A)
Voltage :
AC 220 V
Voltage
AC 220 V
Frequency :
50 Hz
Frequency
50 Hz
Current :
10 A
Current
10 A
Power :
570 W
Power
570 W
Motor Type :
Frequency converter motor
Motor Type
Frequency converter motor
Control System :
Microprocessor control
Control System
Microprocessor control
Display :
LCD display
Display
LCD display
Timer Range :
0 – 99 minutes
Timer Range
0 – 99 minutes
Acceleration / Deceleration :
1 – 10 levels
Acceleration / Deceleration
1 – 10 levels
Speed Accuracy :
±10 r/min
Speed Accuracy
±10 r/min
Dimensions (L×W×H) :
580 × 440 × 360 mm
Dimensions (L×W×H)
580 × 440 × 360 mm
Weight (without rotor) :
40 kg
Weight (without rotor)
40 kg
Features
Low-Speed Performance
➤ Low-Speed Performance
Intelligent microprocessor control with simultaneous parameter display
➤ Intelligent microprocessor control with simultaneous parameter display
Frequency conversion AC motor for stable and maintenance-free operation
➤ Frequency conversion AC motor for stable and maintenance-free operation
Brushless motor support for efficient acceleration and durability
➤ Brushless motor support for efficient acceleration and durability
High-strength steel body with powder-coated finish
➤ High-strength steel body with powder-coated finish
304 stainless steel chamber resistant to chemicals and easy cleaning
➤ 304 stainless steel chamber resistant to chemicals and easy cleaning
Aluminum alloy fixed angle rotor with high durability
➤ Aluminum alloy fixed angle rotor with high durability
Stainless steel swing-out rotor option for versatile applications
➤ Stainless steel swing-out rotor option for versatile applications
Autoclavable rotors and buckets for contamination control
➤ Autoclavable rotors and buckets for contamination control
Corrosion-resistant internal components for long service life
➤ Corrosion-resistant internal components for long service life
Smooth tube insertion and removal with precision rotor design
➤ Smooth tube insertion and removal with precision rotor design

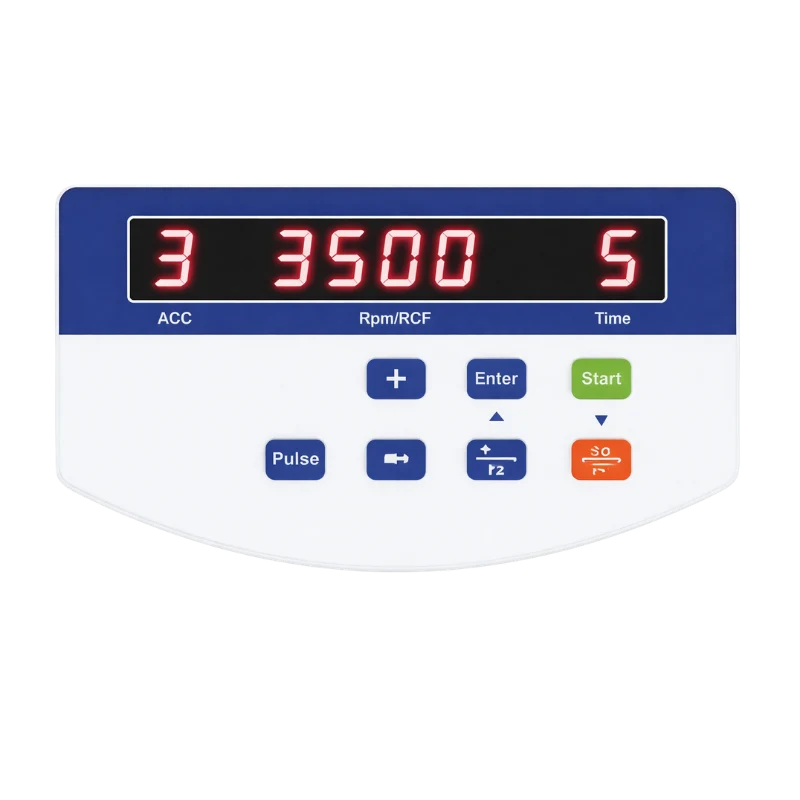

LED/LCD display for clear visibility of parameters
➤ LED/LCD display for clear visibility of parameters
Real-time parameter modification during operation
➤ Real-time parameter modification during operation
Automatic RPM/RCF conversion for ease of use
➤ Automatic RPM/RCF conversion for ease of use
Up to 30 programmable memory settings
➤ Up to 30 programmable memory settings
Last-run parameter recall for repetitive processes
➤ Last-run parameter recall for repetitive processes
Adjustable acceleration/deceleration (10 levels each)
➤ Adjustable acceleration/deceleration (10 levels each)
Automatic lid locking and holding during operation
➤ Automatic lid locking and holding during operation
Viewing port for monitoring and calibration
➤ Viewing port for monitoring and calibration
Low noise operation ≤58 dB
➤ Low noise operation ≤58 dB
Active imbalance detection with automatic shutdown
➤ Active imbalance detection with automatic shutdown
Lid interlock system for operational safety
➤ Lid interlock system for operational safety
Controlled lid opening with soft start mechanism
➤ Controlled lid opening with soft start mechanism
Emergency lid release in case of power failure
➤ Emergency lid release in case of power failure
Applications
Routine laboratory separation of blood, serum, and plasma samples
➤ Routine laboratory separation of blood, serum, and plasma samples
Clinical diagnostics and hospital sample processing workflows
➤ Clinical diagnostics and hospital sample processing workflows
Cell sedimentation and separation of biological fluids
➤ Cell sedimentation and separation of biological fluids
Sample preparation for biochemical and microbiological analysis
➤ Sample preparation for biochemical and microbiological analysis
Pharmaceutical labs for routine QC and sample clarification
➤ Pharmaceutical labs for routine QC and sample clarification
Food and environmental testing for liquid sample separation
➤ Food and environmental testing for liquid sample separation
Veterinary and research labs handling medium-volume samples
➤ Veterinary and research labs handling medium-volume samples
Preparation of cellular components for downstream analysis
➤ Preparation of cellular components for downstream analysis
Low-Speed Performance Intelligent microprocessor control with simultaneous parameter display Frequency conversion AC motor for stable and maintenance-free operation Brushless motor support for efficient acceleration and durability High-strength steel body with powder-coated finish 304 stainless steel chamber resistant to chemicals and easy cleaning Aluminum alloy fixed angle rotor with high durability Stainless steel swing-out rotor option for versatile applications Autoclavable rotors and buckets for contamination control Corrosion-resistant internal components for long service life Smooth tube insertion and removal with precision rotor design LED/LCD display for clear visibility of parameters Real-time parameter modification during operation Automatic RPM/RCF conversion for ease of use Up to 30 programmable memory settings Last-run parameter recall for repetitive processes Adjustable acceleration/deceleration (10 levels each) Automatic lid locking and holding during operation Viewing port for monitoring and calibration Low noise operation ≤58 dB Active imbalance detection with automatic shutdown Lid interlock system for operational safety Controlled lid opening with soft start mechanism Emergency lid release in case of power failure
Routine laboratory separation of blood, serum, and plasma samples Clinical diagnostics and hospital sample processing workflows Cell sedimentation and separation of biological fluids Sample preparation for biochemical and microbiological analysis Pharmaceutical labs for routine QC and sample clarification Food and environmental testing for liquid sample separation Veterinary and research labs handling medium-volume samples Preparation of cellular components for downstream analysis

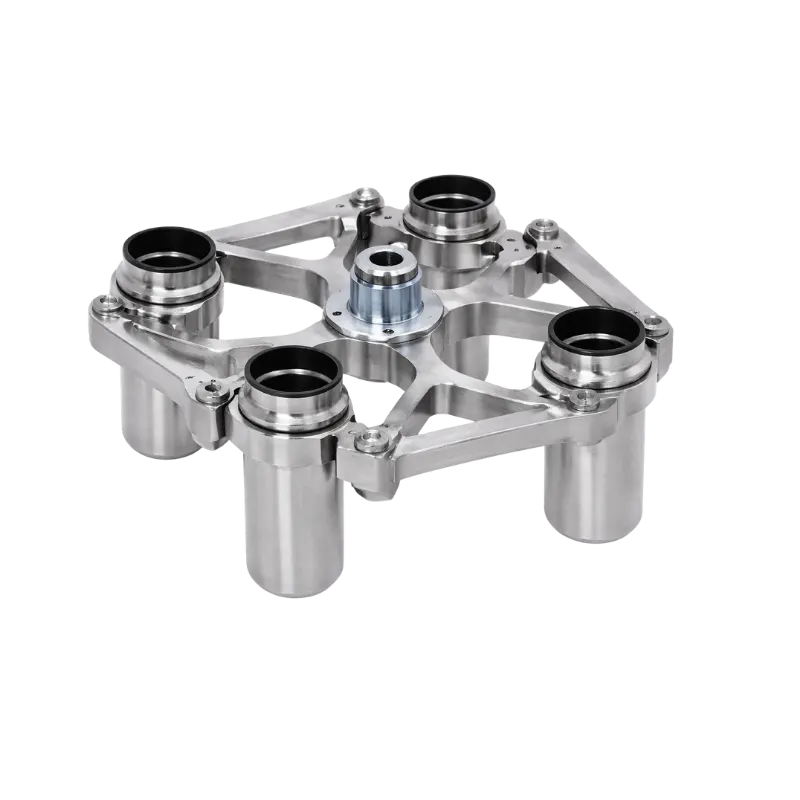

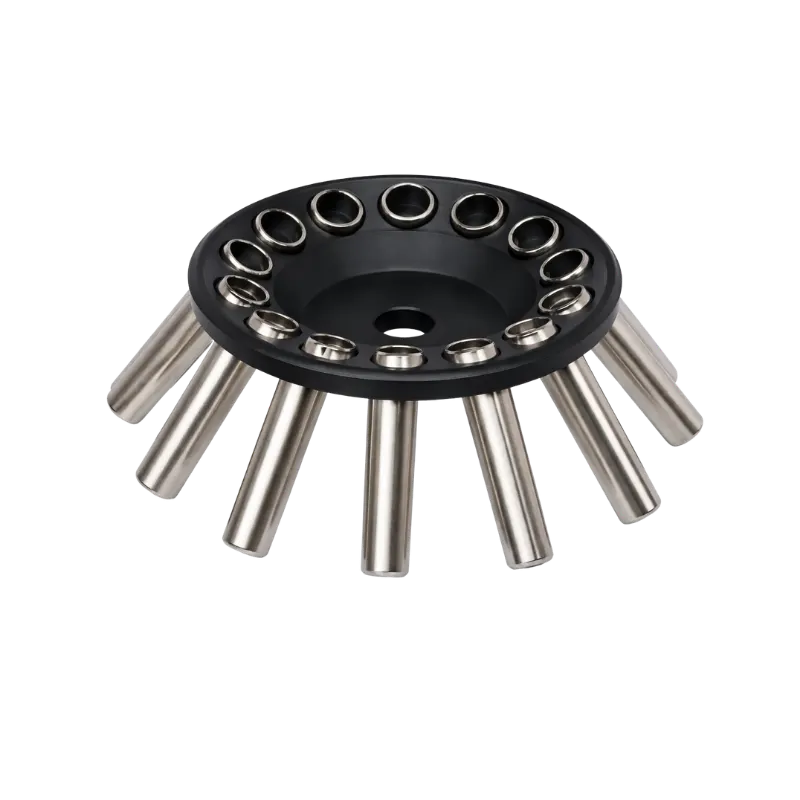

No. Rotor / Adapter Max Capacity Max Speed Max RCF Tube Type 1 Angle Rotor + Adapter 12 × 5–10–15 ml; Adapter: 12 × 2 ml 6000 r/min 6080 × g PP / PC tube 2 Swing Rotor (Steel frame) 4 × 100 ml / 4 × 50 ml; Adapter: 4 × 15/10 ml 5000 r/min 4752 × g PP / PC tube 3 Swing Rotor + Adapter + Rack 4 × 2 × 100 ml / 4 × 2 × 50 ml; Adapter: 4 × 2 × 15/10 ml; Rack: 4 × 12 × 5/2 ml 4000 r/min 3041 × g PP/PC tube / Vacuum blood collection tube 4 Swing Bucket 72 × 2–5 ml 4000 r/min 2773 × g Vacuum blood collection tube 5 Swing Bucket + Adapters 4 × 400 ml; Adapter: 4 × 16 × 5/2 ml / 4 × 9 × 15/10 ml / 4 × 4 × 50 ml / 4 × 1 × 100 ml 4000 r/min 3049 × g PP / PC tube / Vacuum blood collection tubes 6 Swing Bucket + Adapters 4 × 250 ml; Adapter: 4 × 9 × 5/2 ml / 4 × 5 × 15/10 ml / 4 × 1 × 50 ml / 4 × 1 × 100 ml / 4 × 9 × 1.5 ml 4000 r/min 3049 × g PP / PC tube 7 Microplate Rotor + Adapter 2 × 2 × 96 well; Adapter: 2 × 32 × 1.5 ml 4200 r/min 3057 × g Square cup / PP-PC tube
