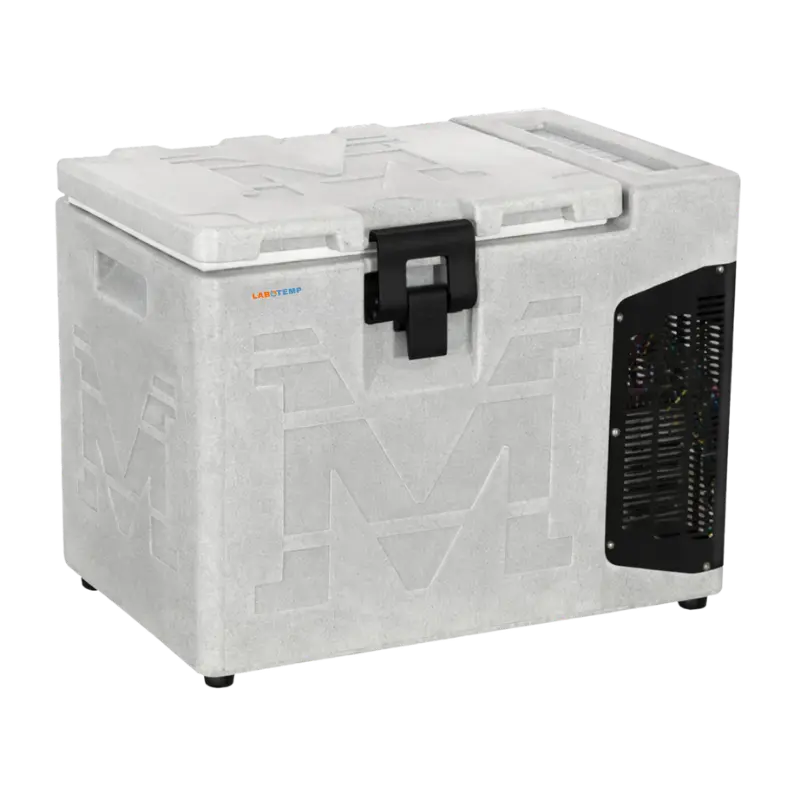

Biomedical Freezer BPF-01B

Name: Biomedical Freezer BPF-01B
Brand: Labotemp
SKU: BPF-01B
Price: 3122.00 USD
Availability: InStock
Rating: 5 (871 reviews)

Labotemp Portable Biomedical Freezer BPF-01B provides reliable temperature-controlled storage and transportation of blood, plasma, serum, vaccines, pharmaceuticals, reagents, and other temperature-sensitive medical products. Designed as a compact Medical Freezer for laboratory, healthcare, and field applications, it offers a 30 L storage capacity with an adjustable temperature range from -25°C to +30°C and 0.1°C temperature resolution for accurate temperature management. The microprocessor controller, NTC temperature sensor, and forced-air cooling system maintain uniform chamber conditions, while the integrated cooling and heating functions automatically adapt to changing ambient temperatures. Compatible with both AC 220 V and 12 V DC power supplies, the freezer supports reliable operation in hospitals, blood banks, vaccination centers, mobile clinics, research laboratories, and cold-chain transportation.

Built for dependable long-term performance, the BPF-01B features a durable PE cabinet with 55 mm polyurethane foam insulation for improved thermal efficiency and temperature stability. The system includes audible and visual alarms for high/low temperature, power failure, sensor error, and controller faults to help protect valuable medical materials. A built-in backup battery powers the controller during power interruptions, allowing temperature data to be retained and supporting the power failure alarm for up to 8 hours. Automatic restart delay protection helps safeguard the cooling system following power restoration.

Why Choose Labotemp Portable Biomedical Freezer BPF-01B?

✓ Wide Temperature Range: Adjustable -25°C to +30°C storage for diverse biomedical applications.
✓ Reliable Temperature Control: Microprocessor controller with 0.1°C resolution and forced-air cooling for uniform performance.
✓ Comprehensive Safety Features: Audible and visual alarms, 8-hour power failure backup, and automatic restart protection.
✓ Portable & Energy Efficient: 30 L capacity, AC/DC power compatibility, and insulated cabinet with low daily energy consumption.

$3122

Datasheet User Manual

Temperature Range : -25°C to +30°C Temperature Range	-25°C to +30°C
Capacity : 30 L Capacity	30 L
Ambient Temperature : 10°C to 32°C Ambient Temperature	10°C to 32°C
Voltage & Frequency : AC 220V±10%, 50/60Hz; DC 12V Voltage & Frequency	AC 220V±10%, 50/60Hz; DC 12V
Internal Dimensions (W×D×H) : 364×253×353 mm Internal Dimensions (W×D×H)	364×253×353 mm
External Dimensions (W×D×H) : 615×370×472 mm External Dimensions (W×D×H)	615×370×472 mm
Noise Level : 45 dB Noise Level	45 dB
Controller : Microprocessor Controller	Microprocessor
Display : Digital Display	Digital
Power : 80 W Power	80 W
Electric Current : DC 6.5 A Electric Current	DC 6.5 A
Power Consumption : 1.2 kWh/24h Power Consumption	1.2 kWh/24h
Refrigeration Type : Forced-air cooling Refrigeration Type	Forced-air cooling
Defrost : Manual Defrost	Manual
Refrigerant : R134a Refrigerant	R134a
Door Type : PE Foamed Solid Door (1) Door Type	PE Foamed Solid Door (1)
Inner Cabinet Material : PE Inner Cabinet Material	PE
Outer Cabinet Material : PE Outer Cabinet Material	PE
Insulation Material : PURF (55 mm) Insulation Material	PURF (55 mm)
Alarms : High/Low Temp, Power Failure (8h), Sensor & Controller Error Alarms	High/Low Temp, Power Failure (8h), Sensor & Controller Error
Packing Size (W×D×H) : 670×440×540 mm Packing Size (W×D×H)	670×440×540 mm
Net Weight : 22 kg Net Weight	22 kg
Gross Weight : 26 kg Gross Weight	26 kg

Precision Temp Control ➤ Precision Temp Control
Microprocessor-based control with 0.1°C temperature resolution ➤ Microprocessor-based control with 0.1°C temperature resolution
Wide temperature range (-25°C to +30°C) for versatile biomedical use ➤ Wide temperature range (-25°C to +30°C) for versatile biomedical use
Forced-air cooling system for uniform temperature distribution ➤ Forced-air cooling system for uniform temperature distribution
Digital display for real-time monitoring ➤ Digital display for real-time monitoring
Audible & visual alarm system for safety assurance ➤ Audible & visual alarm system for safety assurance
Power failure alarm (up to 8 hours backup alert) ➤ Power failure alarm (up to 8 hours backup alert)
Integrated PE cabinet with high durability and corrosion resistance ➤ Integrated PE cabinet with high durability and corrosion resistance
Auto cooling & heating system for stable performance in varying climates ➤ Auto cooling & heating system for stable performance in varying climates
Wide voltage compatibility (AC/DC operation) ➤ Wide voltage compatibility (AC/DC operation)
Low noise operation (45 dB) for lab environments ➤ Low noise operation (45 dB) for lab environments

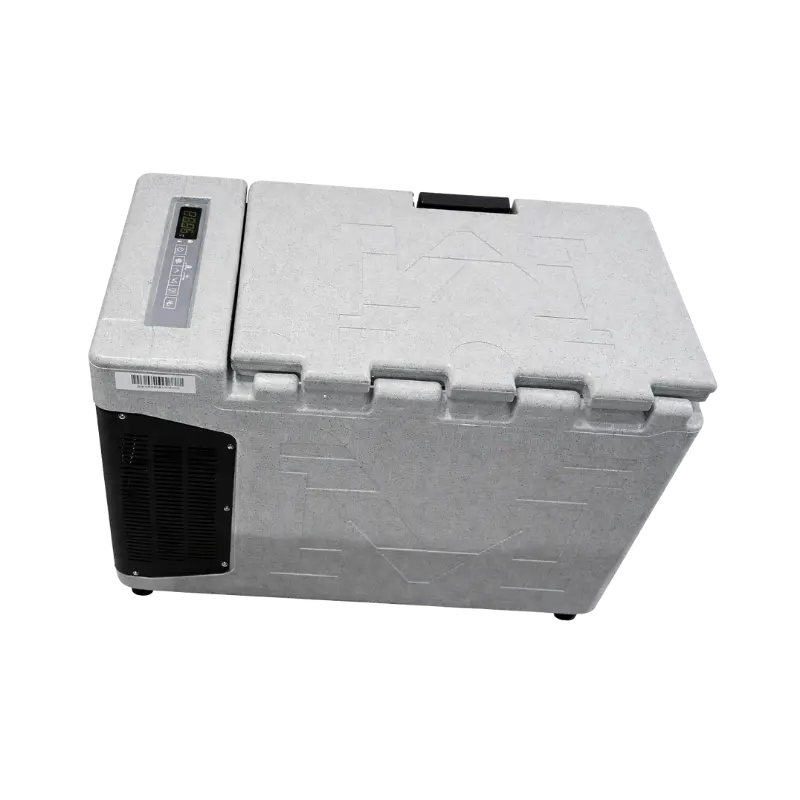

Combined Refrigerator and Freezer BPF-01B is suitable for cold chain transport and storage of vaccines, blood products, reagents, and biological samples requiring controlled temperatures from -25°C to +30°C ➤ Combined Refrigerator and Freezer BPF-01B is suitable for cold chain transport and storage of vaccines, blood products, reagents, and biological samples requiring controlled temperatures from -25°C to +30°C
Ideal for hospitals, diagnostic labs, research facilities, field sampling, and pharmaceutical distribution where AC/DC operation, portability, and alarm-monitored conditions ensure sample integrity and compliance ➤ Ideal for hospitals, diagnostic labs, research facilities, field sampling, and pharmaceutical distribution where AC/DC operation, portability, and alarm-monitored conditions ensure sample integrity and compliance
