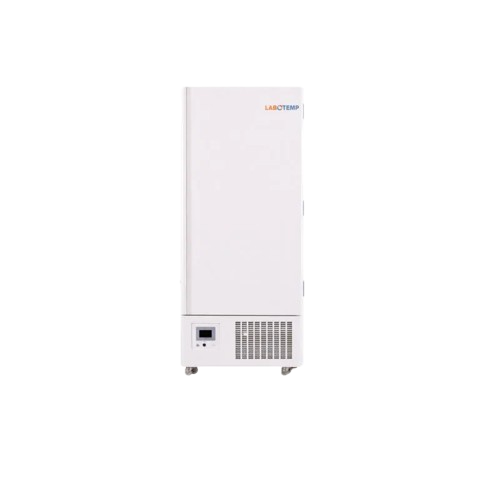

Biomedical and Plasma Freezer BPF-09 is a professional cold storage unit developed by an experienced Laboratory Freezer Manufacturer, delivering stable –5 °C to –25 °C temperature control for biomedical and pharmaceutical use. With a 308 L net capacity and 120 mm high-density insulation, this medical freezer supports secure storage of vaccines, reagents, samples, and other temperature-sensitive medical products. A SECOP compressor with EBM condenser fan ensures efficient cooling and stable operation at ambient temperatures up to 30 °C.
Designed for laboratory and pharmacy environments, this vaccine freezer features a PT100 temperature sensor, touch-screen control interface, and digital display for accurate monitoring. Safety includes visual and acoustic alarms, adjustable high/low temperature alerts, and probe failure protection. The 304 stainless steel inner liner, lockable door, manual defrost, and castors make it a secure pharmacy freezer for hospitals, labs, blood banks, and pharmaceutical facilities requiring sub-zero storage.
Why choose Labotemp Biomedical and Plasma Freezer BPF-09?
✓ Manufacturing Expertise: Built by a trusted laboratory freezer manufacturer
✓ Temperature Protection: –5 °C to –25 °C stability with multi-level alarms
✓ Service Assurance: Comprehensive warranty and reliable after-sales support
|
Temperature Range : -5 to -25℃ Temperature Range |
-5 to -25℃ |
|
Net Capacity : 308 L Net Capacity |
308 L |
|
Power supply : 110V / 220V 60 Hz Power supply |
110V / 220V 60 Hz |
|
Maximum Ambient Temperature : 30℃ Maximum Ambient Temperature |
30℃ |
|
Internal Dimensions (mm) : 610x590x950mm Internal Dimensions (mm) |
610x590x950mm |
|
Insulation (mm) : 120mm Insulation (mm) |
120mm |
|
Power consumption : 4.1kw.h / 24h Power consumption |
4.1kw.h / 24h |
|
Noise level (DBA) : 60 Noise level (DBA) |
60 |
|
No.of compressors / Brand : 1/SECOP No.of compressors / Brand |
1/SECOP |
|
Fan for condenser : EBM Fan for condenser |
EBM |
|
Touch screen operation interface : YES Touch screen operation interface |
YES |
|
Sensor : PT100 Sensor |
PT100 |
|
Visual/acoustic alarm : YES/YES Visual/acoustic alarm |
YES/YES |
|
High/low temperature alarm (Adjustable) : YES High/low temperature alarm (Adjustable) |
YES |
|
Probe failure alarm (sensor) : YES Probe failure alarm (sensor) |
YES |
|
Digital display : YES Digital display |
YES |
|
Defrost manual/auto : Manual Defrost manual/auto |
Manual |
|
Castors : YES Castors |
YES |
|
Numbers of shelves (304 stainless steel) : 2 Numbers of shelves (304 stainless steel) |
2 |
|
Lock : YES Lock |
YES |
|
Inner liner material : 304 S.S Inner liner material |
304 S.S |
|
External material : Galvanized sheet spraying External material |
Galvanized sheet spraying |
|
Refrigerant : Mixed refrigerant Refrigerant |
Mixed refrigerant |
|
Net weight : 160 kg Net weight |
160 kg |
|
Gross weight : 195 kg Gross weight |
195 kg |
|
External Dimensions (mm) : 850x880x1740 mm External Dimensions (mm) |
850x880x1740 mm |
|
Package Size : 840x925x1945mm Package Size |
840x925x1945mm |
