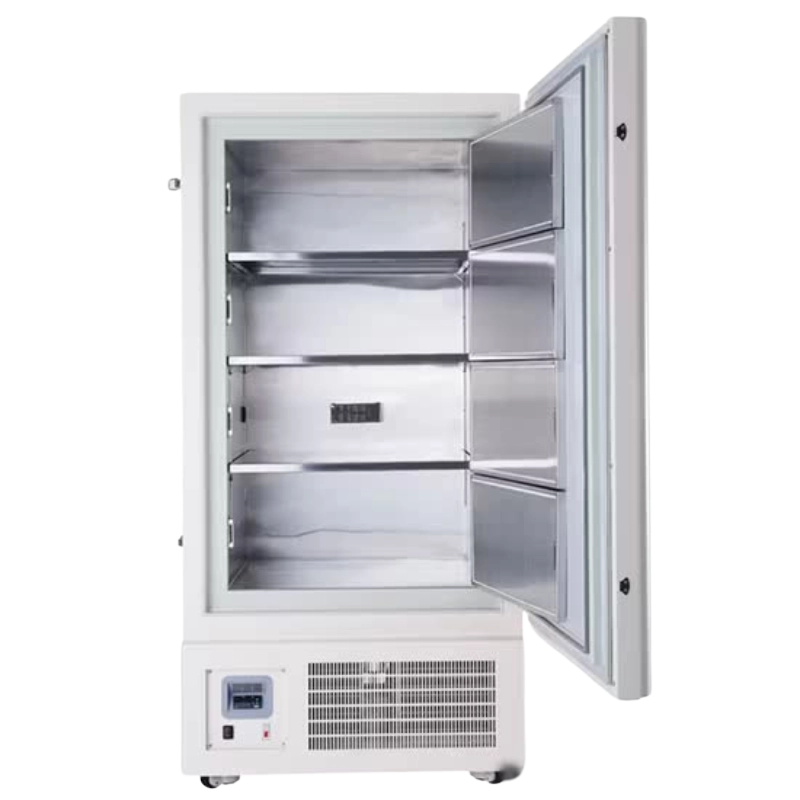

Labotemp Biomedical and Plasma Freezer BPF-08 is a high-capacity Biomedical and Plasma Freezer engineered for precise and reliable low-temperature storage in laboratories, hospitals, and research facilities. With an adjustable temperature range of -25°C to -60°C and a large 408L chamber, it ensures stable preservation of plasma, vaccines, reagents, and biological samples. The stainless steel 304 interior provides a hygienic and corrosion-resistant environment, while 150 mm thick insulation enhances thermal retention and minimizes temperature fluctuations during continuous operation.
Designed for demanding applications, this Plasma Freezer integrates a high-efficiency SECOP compressor with an advanced electronic temperature control system for accurate and stable cooling. The PTC probe and digital display support real-time monitoring, with optional LCD touchscreen and data logging features for enhanced control. Audible and visual alarms ensure operational safety, while EBM condenser fans maintain uniform airflow. Built for durability and energy efficiency, this Biomedical Freezer delivers long-term reliability for critical laboratory and medical storage needs.
Why choose Labotemp Biomedical and Plasma Freezer BPF-08?
✓ High-Capacity Plasma Freezer: 408L chamber supports large-scale sample storage
✓ Energy-Efficient Cooling System: Fluorine-free refrigerant ensures reliable performance
✓ Advanced Safety Monitoring: Alarm system protects temperature-sensitive materials
|
Model : BPF-08 Model |
BPF-08 |
|
Capacity : 408L Capacity |
408L |
|
Internal temperature : -25°C to -60°C, adjustable Internal temperature |
-25°C to -60°C, adjustable |
|
Compressor : SECOP Compressor |
SECOP |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Alarm : Audible and visual alarm Alarm |
Audible and visual alarm |
|
Input Power : 650W Input Power |
650W |
|
Power consumption : 9.2kw.h/24h Power consumption |
9.2kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Single compressor refrigeration system Refrigeration system |
Single compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : (LCD touch screen optional) digital display Temperature display |
(LCD touch screen optional) digital display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : EBM Condenser fans |
EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 150mm Thickness of foaming layer |
150mm |
|
Number of shelves / inner doors : 3 shelves / 4 inner doors, 304 stainless steel Number of shelves / inner doors |
3 shelves / 4 inner doors, 304 stainless steel |
|
Castor : 4 Castor |
4 |
|
Net weight / gross weight : 200/240kg Net weight / gross weight |
200/240kg |
|
External dimensions : 930*900*1780mm External dimensions |
930*900*1780mm |
|
Internal dimensions : 610*615*1120mm Internal dimensions |
610*615*1120mm |
|
Package size : 930*1060*2010mm Package size |
930*1060*2010mm |
