Specifications
|
Material :
Stainless Steel 304
Material |
Stainless Steel 304 |
|
Product Size :
L2600 × W800 × H800mm
Product Size |
L2600 × W800 × H800mm |
|
Table Height (adjustable) (mm) :
720–920; By Motor
Table Height (adjustable) (mm) |
720–920; By Motor |
|
Table can rotate :
40 degrees; Manual
Table can rotate |
40 degrees; Manual |
|
Mobile spray gun length :
2000mm
Mobile spray gun length |
2000mm |
|
Pulverizer Power :
560W
Pulverizer Power |
560W |
|
Pulverizer Horsepower :
1.0 hp
Pulverizer Horsepower |
1.0 hp |
|
Pulverizer Speed :
4200 r/Min
Pulverizer Speed |
4200 r/Min |
|
Pulverizer Capacity :
1200ML
Pulverizer Capacity |
1200ML |
|
Emergency stop button :
One (Control main power off)
Emergency stop button |
One (Control main power off) |
|
Handheld remote :
Yes
Handheld remote |
Yes |
|
Voltage :
220–240V / 50Hz; Electricity 1.5A
Voltage |
220–240V / 50Hz; Electricity 1.5A |
|
Load Capacity :
200KG
Load Capacity |
200KG |
|
Package Size (mm) :
2630 × 830 × 830
Package Size (mm) |
2630 × 830 × 830 |
|
Package Size :
2650x850x940
Package Size |
2650x850x940 |
|
Gross Weight :
190kg
Gross Weight |
190kg |
Features
-
Built-in Vent System
➤ Built-in Vent System
-
Motorized height adjustment system with working height range from 720 mm to 920 mm for operator comfort.
➤ Motorized height adjustment system with working height range from 720 mm to 920 mm for operator comfort.
-
Work surface can rotate up to 40° manually for improved accessibility during postmortem procedures.
➤ Work surface can rotate up to 40° manually for improved accessibility during postmortem procedures.
-
Integrated pulverizer system with 560W motor for efficient tissue waste processing and drainage support.
➤ Integrated pulverizer system with 560W motor for efficient tissue waste processing and drainage support.
-
High-speed pulverizer operation up to 4200 r/min with 1200 ml capacity.
➤ High-speed pulverizer operation up to 4200 r/min with 1200 ml capacity.
-

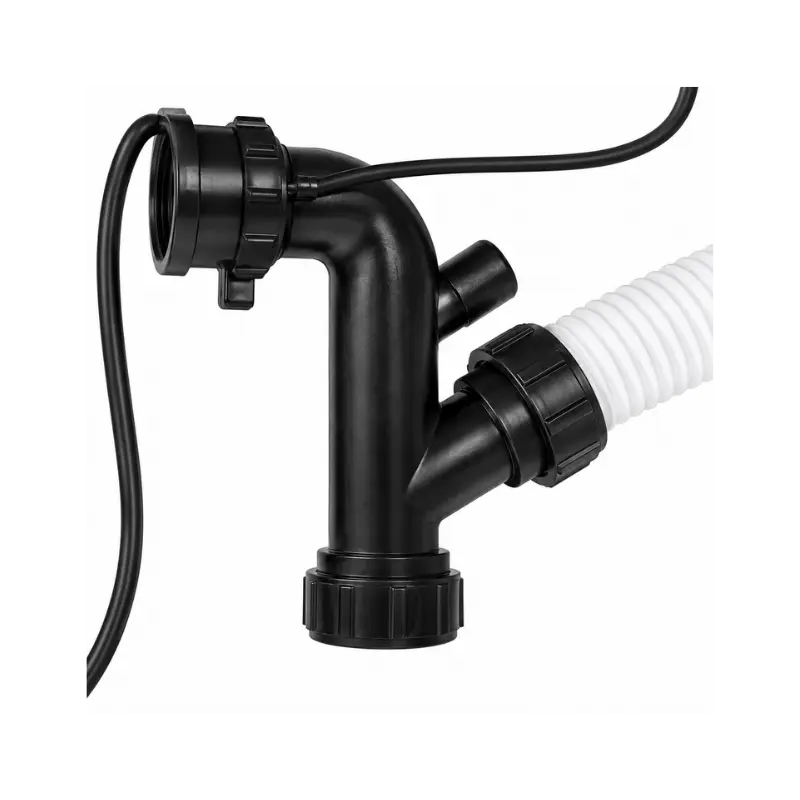

Built-in drainage system with hair separator to help prevent pipe blockage during operation.
➤ Built-in drainage system with hair separator to help prevent pipe blockage during operation.
-

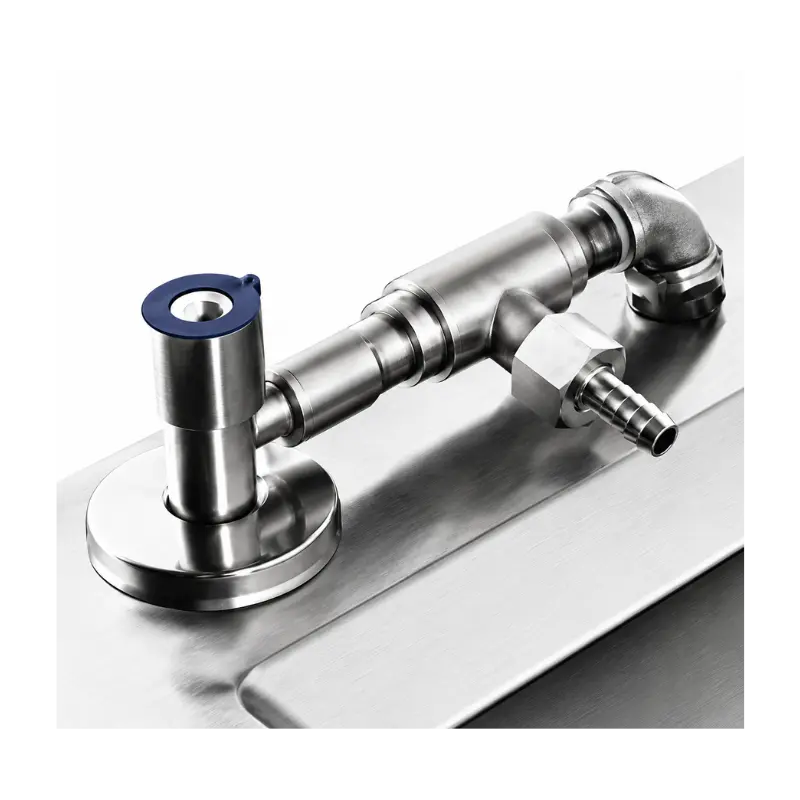

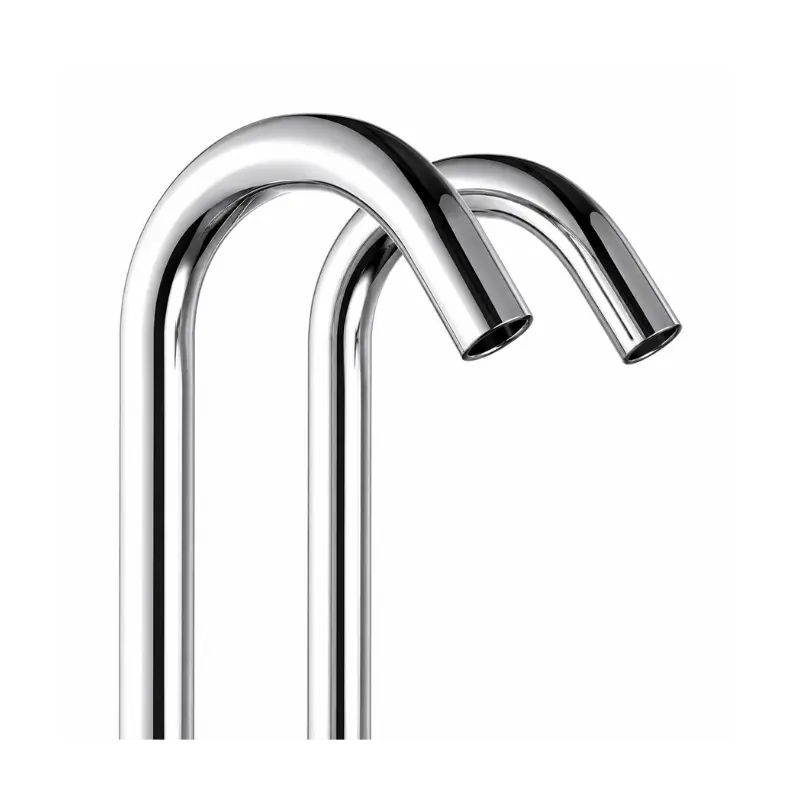

Equipped with hot and cold water regulator along with induction faucet and manual faucet connection.
➤ Equipped with hot and cold water regulator along with induction faucet and manual faucet connection.
-
Adjustable mobile spray and flushing gun for effective cleaning of the table surface.
➤ Adjustable mobile spray and flushing gun for effective cleaning of the table surface.
-
Detachable tabletop plate with laser-engraved scale for practical dissection support.
➤ Detachable tabletop plate with laser-engraved scale for practical dissection support.
-
Removable organ viscera tray available for specimen handling convenience.
➤ Removable organ viscera tray available for specimen handling convenience.
-
Emergency stop button provided for immediate main power shutdown during operation.
➤ Emergency stop button provided for immediate main power shutdown during operation.
-
Handheld remote control for convenient adjustment and operation.
➤ Handheld remote control for convenient adjustment and operation.
Applications
-
LAT-01 is suitable for postmortem examination, anatomical dissection, tissue sampling, and forensic investigation procedures in hospitals, mortuaries, pathology labs, medical colleges, veterinary institutes, and research facilities
➤ LAT-01 is suitable for postmortem examination, anatomical dissection, tissue sampling, and forensic investigation procedures in hospitals, mortuaries, pathology labs, medical colleges, veterinary institutes, and research facilities
-
Ideal for hygienic cadaver handling environments requiring integrated drainage, ventilation, flushing, and waste management systems
➤ Ideal for hygienic cadaver handling environments requiring integrated drainage, ventilation, flushing, and waste management systems
- Built-in Vent System
- Motorized height adjustment system with working height range from 720 mm to 920 mm for operator comfort.
- Work surface can rotate up to 40° manually for improved accessibility during postmortem procedures.
- Integrated pulverizer system with 560W motor for efficient tissue waste processing and drainage support.
- High-speed pulverizer operation up to 4200 r/min with 1200 ml capacity.
- Built-in drainage system with hair separator to help prevent pipe blockage during operation.
- Equipped with hot and cold water regulator along with induction faucet and manual faucet connection.
- Adjustable mobile spray and flushing gun for effective cleaning of the table surface.
- Detachable tabletop plate with laser-engraved scale for practical dissection support.
- Removable organ viscera tray available for specimen handling convenience.
- Emergency stop button provided for immediate main power shutdown during operation.
- Handheld remote control for convenient adjustment and operation.
LAT-01 is suitable for postmortem examination, anatomical dissection, tissue sampling, and forensic investigation procedures in hospitals, mortuaries, pathology labs, medical colleges, veterinary institutes, and research facilities. Ideal for hygienic cadaver handling environments requiring integrated drainage, ventilation, flushing, and waste management systems.
