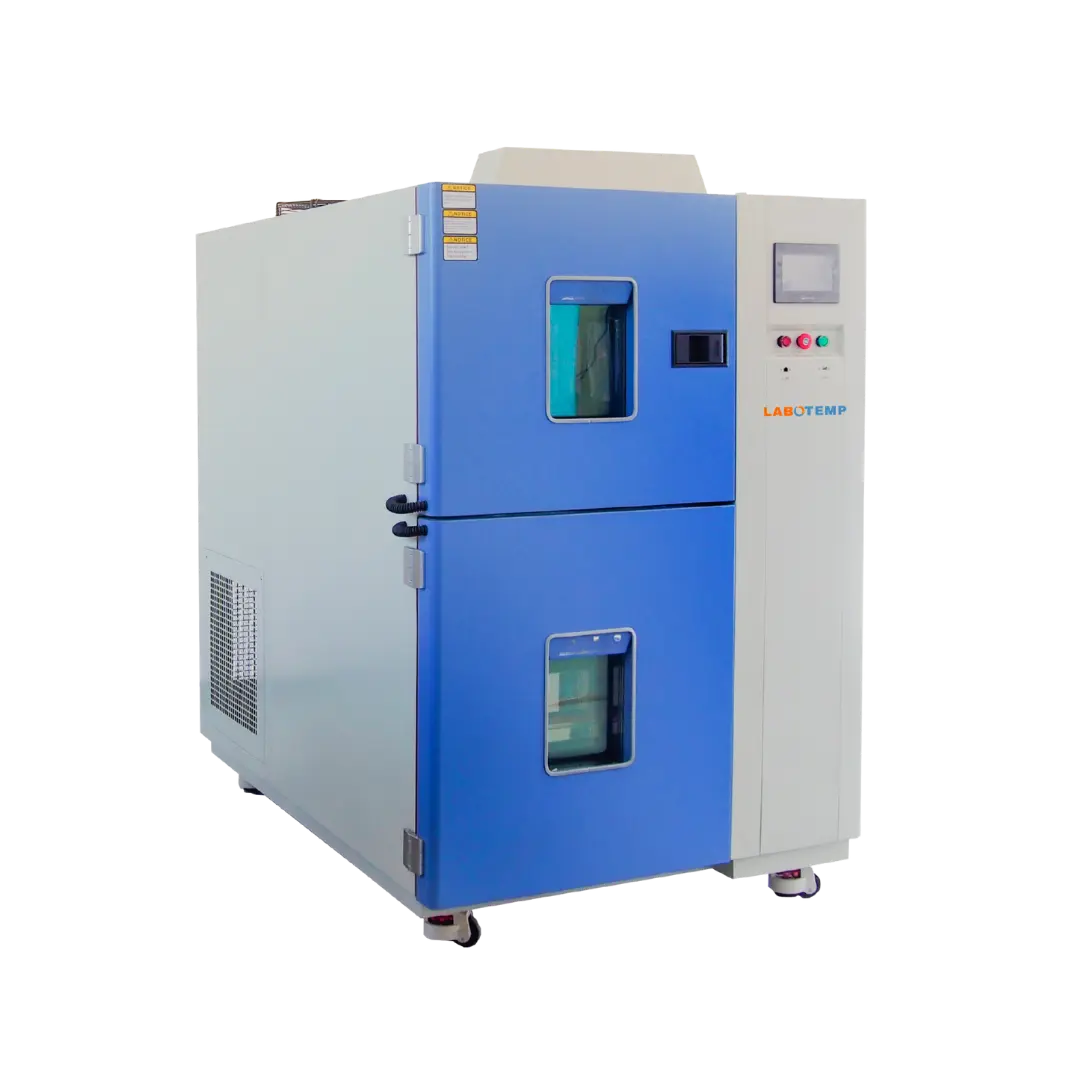

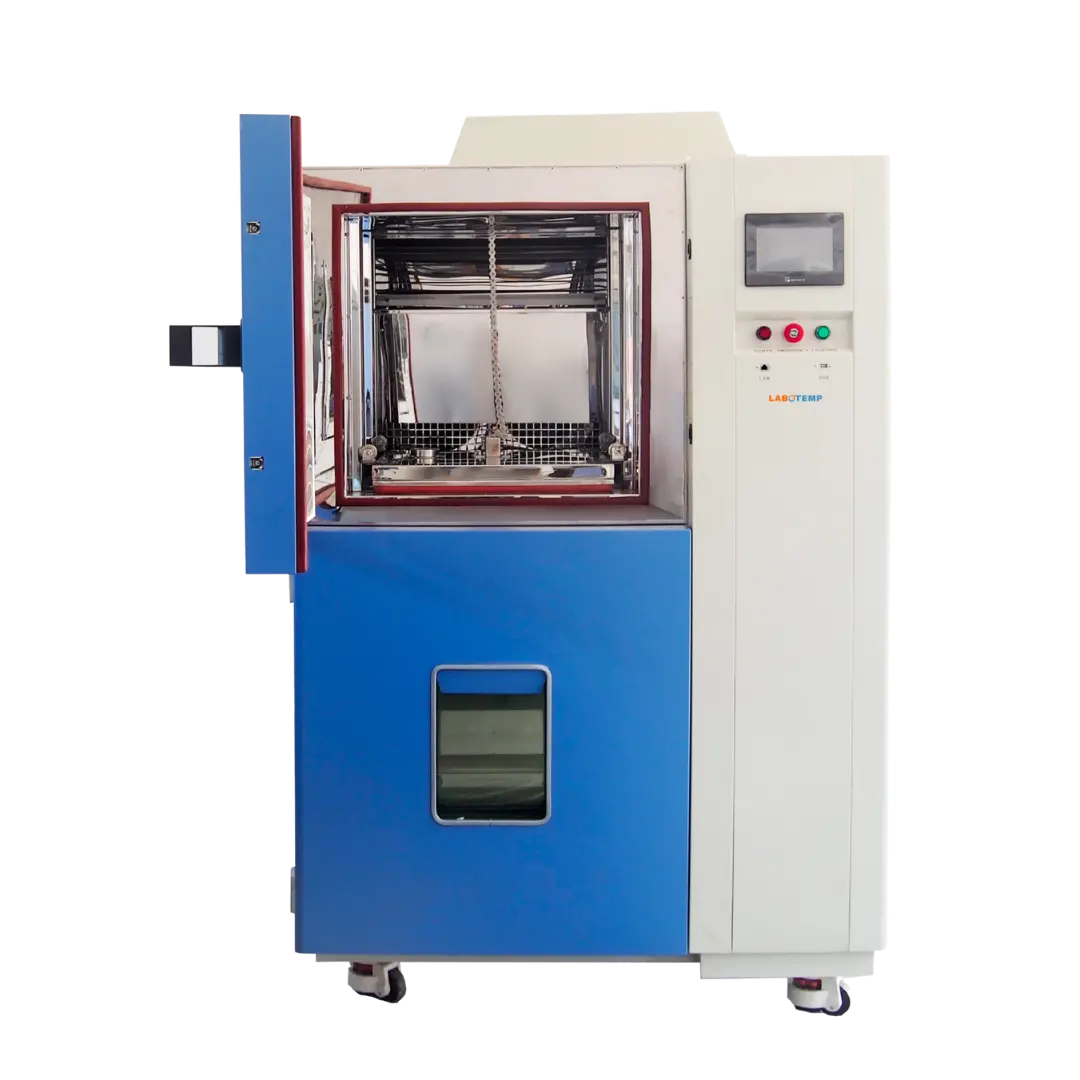

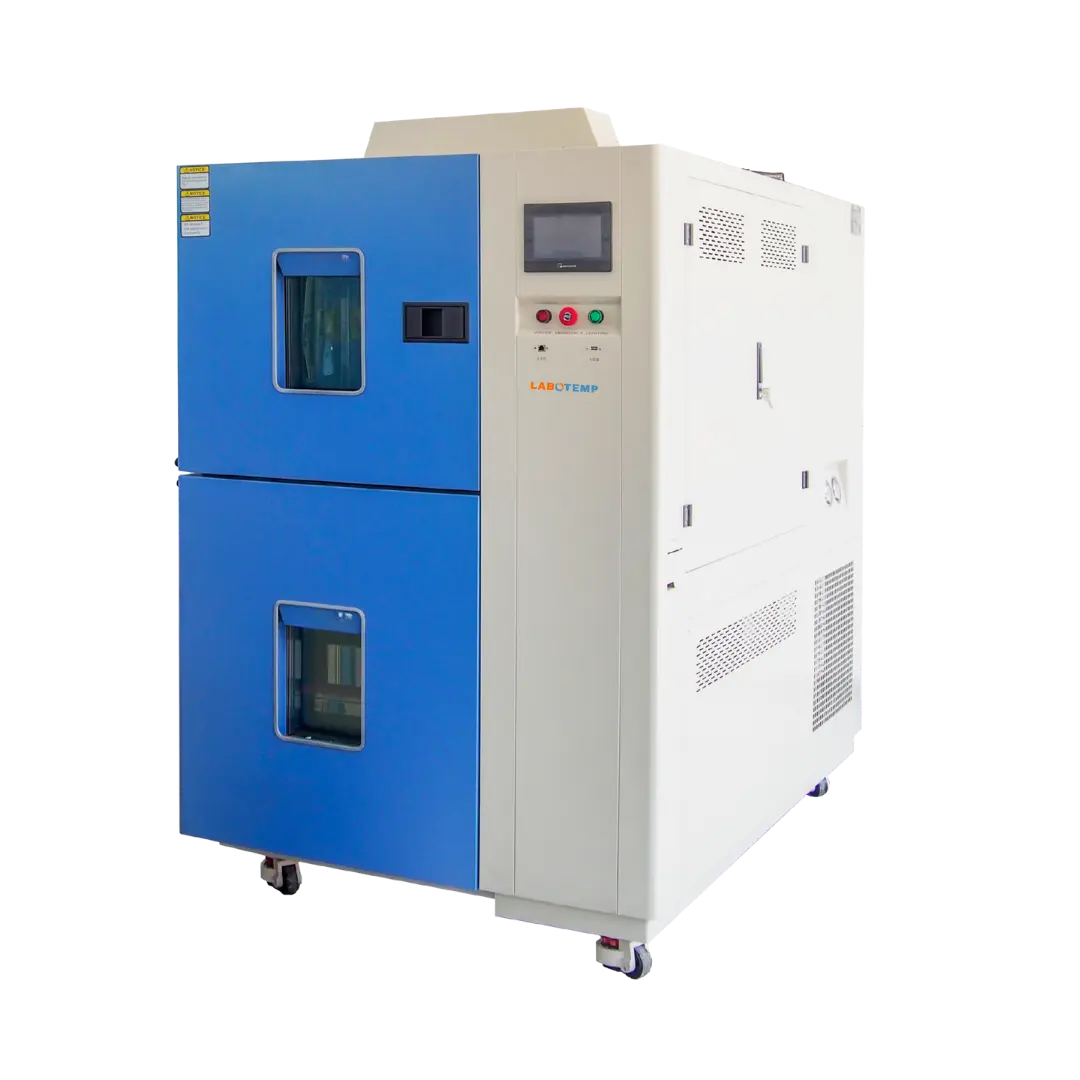

Labotemp Thermal Shock Chamber LTC-101 is a precision-engineered thermal shock chamber designed to evaluate product reliability under rapid temperature transitions. This advanced two zone chamber exposes samples to extreme hot and cold environments, enabling accurate thermal shock testing for materials, components, and assemblies. With high-temperature capability up to +220°C and low-temperature conditions down to -75°C, it simulates real-world thermal stress. The chamber supports practical testing loads up to 20 kg and offers a compact interior volume of approximately 22 L, making it suitable for electronics, automotive components, and material validation applications.
Built for consistent and repeatable performance, this thermal chamber maintains tight temperature control with fluctuation within ±0.5°C and deviation within ±3°C, ensuring reliable test accuracy. Fast temperature recovery within 5 minutes enables efficient continuous testing cycles. The programmable LCD touchscreen controller allows precise control of thermal shock testing processes, while the mechanical refrigeration system with a TECUMSEH compressor ensures efficient cooling. Integrated safety protections, including over-temperature, over-current, and pressure safeguards, ensure safe operation. A SUS304 stainless steel interior combined with a protective exterior structure enhances durability for long-term industrial use.
Why Choose Labotemp Thermal Shock Chamber LTC-101?
✓ Advanced Two Zone Chamber - Enables rapid transition between extreme temperature conditions.
✓ Reliable Thermal Shock Testing - Designed for accurate and repeatable thermal shock testing across industries.
✓ Precision Thermal Chamber Control - Ensures stable conditions for critical validation processes.
|
Test Room – High Temperature Exposure Range : Ambient +20°C to +200°C Test Room – High Temperature Exposure Range |
Ambient +20°C to +200°C |
|
Test Room – Low Temperature Exposure Range : -65°C to -5°C Test Room – Low Temperature Exposure Range |
-65°C to -5°C |
|
Pre-heat Room – Upper Limit Temperature : +220°C Pre-heat Room – Upper Limit Temperature |
+220°C |
|
Pre-cool Room – Lower Limit Temperature : -75°C Pre-cool Room – Lower Limit Temperature |
-75°C |
|
Temperature Fluctuation : ±0.5°C Temperature Fluctuation |
±0.5°C |
|
Temperature Deviation : ±3°C Temperature Deviation |
±3°C |
|
Temperature Recovery Time : Within 5 minutes Temperature Recovery Time |
Within 5 minutes |
|
Pre-heat Room – Heating Time : Ambient to +200°C within 30 minutes Pre-heat Room – Heating Time |
Ambient to +200°C within 30 minutes |
|
Pre-cool Room – Cooling Time : Ambient to -70°C within 30 minutes Pre-cool Room – Cooling Time |
Ambient to -70°C within 30 minutes |
|
Cooling System : Mechanical compression refrigeration system Cooling System |
Mechanical compression refrigeration system |
|
Refrigerating Unit : TECUMSEH compressor Refrigerating Unit |
TECUMSEH compressor |
|
Controller : Programmable color LCD touch screen, Ethernet connection, PC link Controller |
Programmable color LCD touch screen, Ethernet connection, PC link |
|
Loading Capacity : 20 kg Loading Capacity |
20 kg |
|
Interior Volume : 22 L Interior Volume |
22 L |
|
Internal Dimensions (mm) : 300 × 300 × 250 Internal Dimensions (mm) |
300 × 300 × 250 |
|
Overall Dimensions (mm) : 1560 × 870 × 1545 Overall Dimensions (mm) |
1560 × 870 × 1545 |
|
Safety Devices : Over-temperature protection, Over-current protection, Refrigerant high-pressure protection, Earth leakage protection Safety Devices |
Over-temperature protection, Over-current protection, Refrigerant high-pressure protection, Earth leakage protection |
|
Interior Material : SUS304 stainless steel Interior Material |
SUS304 stainless steel |
|
Exterior Material : Steel plate with protective coating Exterior Material |
Steel plate with protective coating |
|
Net Weight : 635kg Net Weight |
635kg |
|
Gross Weight : 750kg Gross Weight |
750kg |
|
Package Size : 1470 × 2440 × 2600mm Package Size |
1470 × 2440 × 2600mm |
