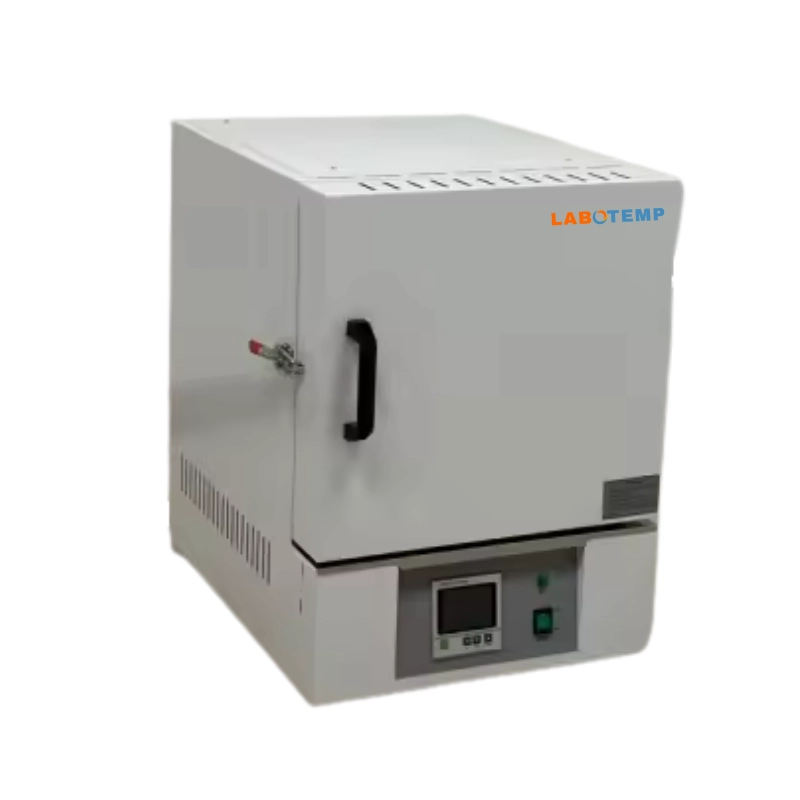

Labotemp Muffle Furnace FMU-02 is an ISO & CE-certified electric muffle furnace engineered for precise laboratory heating up to 1000°C. The 7 L benchtop muffle furnace features an aluminum-silicate chamber with four-sided heating for uniform temperature distribution. A digital double-row PID controller with K-type thermocouple delivers 1°C resolution and ±5°C stability; touch-key setting and an exhaust port make operation safe and simple. Rated 4 kW, FMU-02 reaches 1000°C in approximately 70 minutes and balances fast ramp-up with energy-efficient performance for ashing, calcination, sintering and heat treatment in research and QC labs.
Manufactured by Labotemp, a trusted furnace manufacturer and furnace supplier, this lab muffle furnace offers durable construction, low maintenance and reliable service life—ideal for laboratories, educational institutes and industrial users seeking a high-efficiency furnace.
Why choose Muffle Furnace FMU-02?
✓Certified Quality: ISO & CE compliance for safety and consistent manufacture.
✓ Precise Digital Control: Double-row PID and K-type sensor deliver 1°C resolution and ±5°C stability.
✓ Fast & Efficient: 4 kW power and ~70 min ramp to 1000°C balance speed with energy efficiency.
| Maximum Temperature | 1000°C |
|---|---|
| Chamber Volume | 7L |
| Rated Power | 4 kW |
| Time from Room Temp. to Max Temp. (min) | 70 |
| Heating Mode | Automatic constant temperature |
| Heating Type | Four-sided heating |
| Exhaust Port | Ø30 mm × 1 |
| Furnace Body Material | Aluminum silicate |
| Heater Material | Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
| Temperature Fluctuation | ±5°C |
| Temperature Control Mode | Digital tube double-row PID |
| Temperature Setting Mode | Touch four keys |
| Sensor Type | K-type thermocouple |
| Power Supply / Rated Current | AC220V 50Hz / 18A |
| Studio Size | 200×300×120mm |
| Temperature Resolution | 1°C |
| Packing Dimension | 770×580×750 mm |
| Net Weight | 70kg |
| Gross Weight | 80kg |
Used for high-temperature heating, thermal treatment, and laboratory applications requiring precise and uniform temperature control
