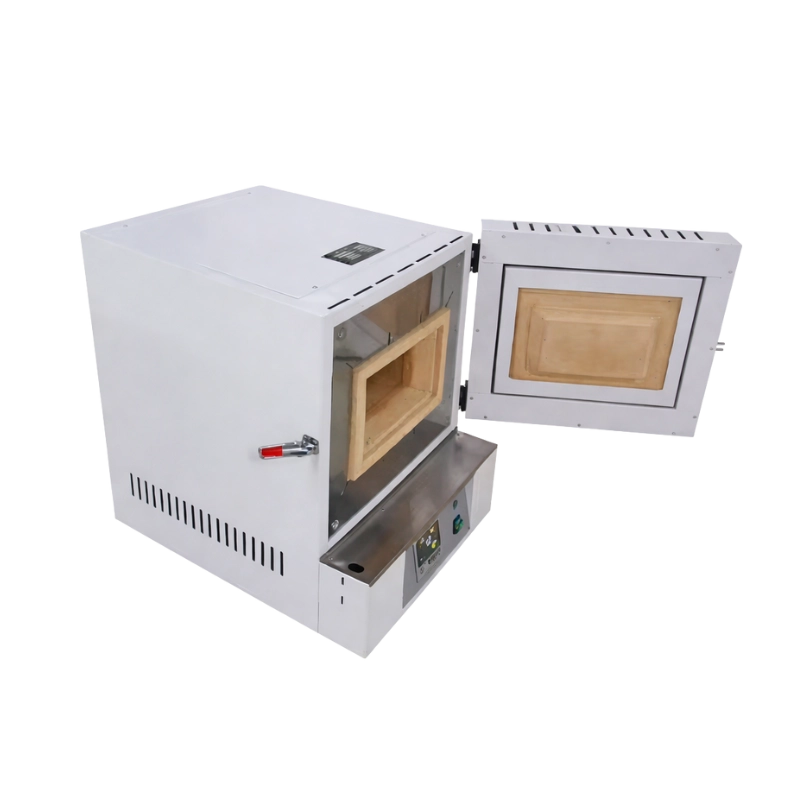

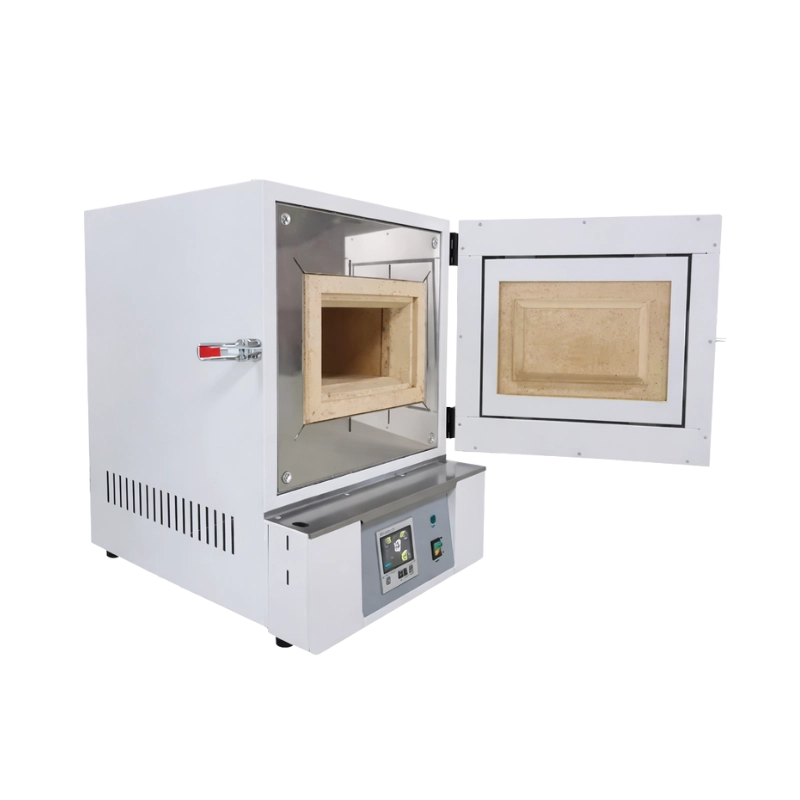

Labotemp Muffle Furnace FMU-02 is an ISO & CE-certified electric muffle furnace engineered for precise laboratory heating up to 1000°C. The 7 L benchtop muffle furnace features an aluminum-silicate chamber with four-sided heating for uniform temperature distribution. A digital double-row PID controller with K-type thermocouple delivers 1°C resolution and ±5°C stability; touch-key setting and an exhaust port make operation safe and simple. Rated 4 kW, FMU-02 reaches 1000°C in approximately 70 minutes and balances fast ramp-up with energy-efficient performance for ashing, calcination, sintering and heat treatment in research and QC labs.
Manufactured by Labotemp, a trusted furnace manufacturer and furnace supplier, this lab muffle furnace offers durable construction, low maintenance and reliable service life—ideal for laboratories, educational institutes and industrial users seeking a high-efficiency furnace.
Why choose Muffle Furnace FMU-02?
✓Certified Quality: ISO & CE compliance for safety and consistent manufacture.
✓ Precise Digital Control: Double-row PID and K-type sensor deliver 1°C resolution and ±5°C stability.
✓ Fast & Efficient: 4 kW power and ~70 min ramp to 1000°C balance speed with energy efficiency.
|
Maximum Temperature : 1000°C Maximum Temperature |
1000°C |
|
Chamber Volume : 7L Chamber Volume |
7L |
|
Rated Power : 4 kW Rated Power |
4 kW |
|
Time from Room Temp. to Max Temp. (min) : 70 Time from Room Temp. to Max Temp. (min) |
70 |
|
Heating Mode : Automatic constant temperature Heating Mode |
Automatic constant temperature |
|
Heating Type : Four-sided heating Heating Type |
Four-sided heating |
|
Exhaust Port : Ø30 mm × 1 Exhaust Port |
Ø30 mm × 1 |
|
Furnace Body Material : Aluminum silicate Furnace Body Material |
Aluminum silicate |
|
Heater Material : Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) Heater Material |
Nickel-chromium-aluminum alloy wire (OCr27A17Mo2) |
|
Temperature Fluctuation : ±5°C Temperature Fluctuation |
±5°C |
|
Temperature Control Mode : Digital tube double-row PID Temperature Control Mode |
Digital tube double-row PID |
|
Temperature Setting Mode : Touch four keys Temperature Setting Mode |
Touch four keys |
|
Sensor Type : K-type thermocouple Sensor Type |
K-type thermocouple |
|
Power Supply / Rated Current : AC220V 50Hz / 18A Power Supply / Rated Current |
AC220V 50Hz / 18A |
|
Studio Size : 200×300×120mm Studio Size |
200×300×120mm |
|
Temperature Resolution : 1°C Temperature Resolution |
1°C |
|
Packing Dimension : 770×580×750 mm Packing Dimension |
770×580×750 mm |
|
Net Weight : 70kg Net Weight |
70kg |
|
Gross Weight : 80kg Gross Weight |
80kg |
