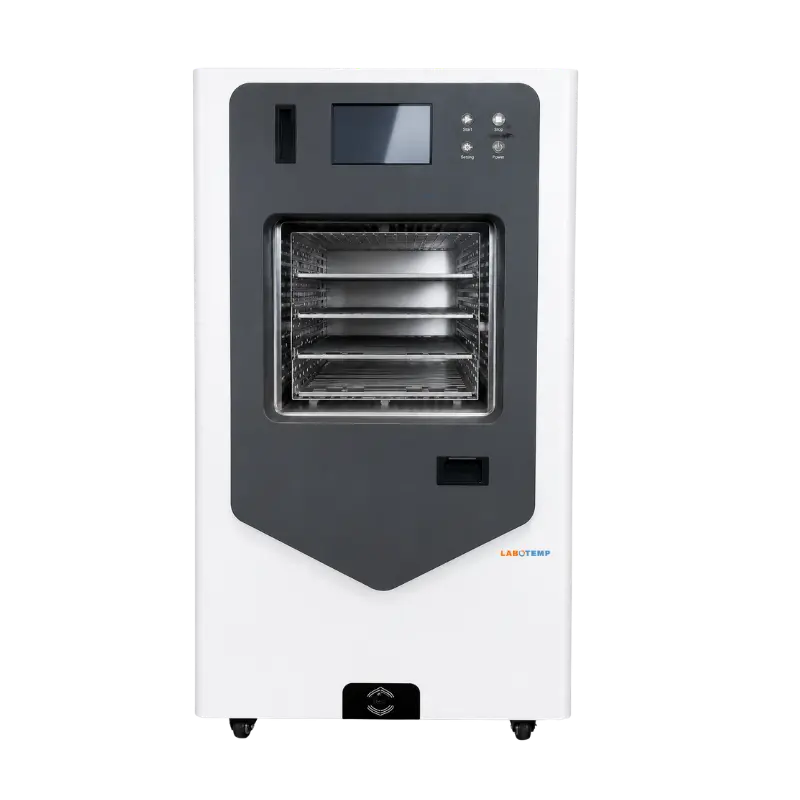

Hydrogen Peroxide Plasma Sterilizer LPP-104

Hydrogen Peroxide Plasma Sterilizer LPP-104

Name: Hydrogen Peroxide Plasma Sterilizer LPP-104
Brand: Labotemp
SKU: LPP-104
Price: 25738.00 USD
Availability: InStock
Rating: 4.8 (932 reviews)

Labotemp Hydrogen Peroxide Plasma Sterilizer LPP-104 delivers low-temperature sterilization for heat- and moisture-sensitive medical and laboratory equipment using hydrogen peroxide vapor/plasma technology. With a 245 L total volume and 203 L effective chamber volume, it operates at 45°C to 55°C, making it suitable for sterilizing compatible instruments that cannot withstand conventional high-temperature steam processes. The system reaches a minimum chamber vacuum level of 55 Pa and uses controlled hydrogen peroxide dosing of 7 mL per detection cycle or 14 mL per standard cycle. Detection mode uses approximately 44 points, while the standard cycle is listed at 71 minutes 30 seconds, supporting efficient routine sterilization workflows.

Designed for demanding healthcare and laboratory environments, the LPP-104 features a rectangular sterilization chamber, four storage levels with a 40 kg total load capacity, swivel casters with brakes, and a 10-inch TFT true-color touchscreen for convenient operation. A built-in dot-matrix printer allows sterilization information to be queried and printed, supporting process documentation and traceability. The system is designed for short-term loading and continuous operation, with a robust chamber and controlled low-temperature process for reliable sterilization performance.

Why Choose Labotemp Hydrogen Peroxide Plasma Sterilizer LPP-104?

✓ Low-Temperature Sterilization: 45°C–55°C operation for suitable heat-sensitive items.
✓ Large 203 L Effective Capacity: Four storage levels support practical batch processing.
✓ Controlled H₂O₂ Process: Precise dosing and vacuum control support consistent sterilization cycles.

$25738

Datasheet

General Specifications
Total Volume : 245 L Total Volume	245 L
Effective Volume : 203 L Effective Volume	203 L
Sterilization Chamber Shape : Rectangle Sterilization Chamber Shape	Rectangle
Operating Temperature : 45°C to 55°C Operating Temperature	45°C to 55°C
Minimum Vacuum Level : 55 Pa Minimum Vacuum Level	55 Pa
Work Schedule : Short-term Loading, Continuous Operation Work Schedule	Short-term Loading, Continuous Operation
Operating Ambient Temperature : 5°C to 40°C Operating Ambient Temperature	5°C to 40°C
Operating Environment Humidity : 30% to 95% (No Condensation) Operating Environment Humidity	30% to 95% (No Condensation)
Operating Atmospheric Pressure : 700 hPa to 1060 hPa Operating Atmospheric Pressure	700 hPa to 1060 hPa
Sterilization & Performance
Sterilization Time : Detection Mode 44 Points; Standard Mode 71 Minutes 30 Seconds Sterilization Time	Detection Mode 44 Points; Standard Mode 71 Minutes 30 Seconds
Hydrogen Peroxide Volume : Detection Mode 7 mL per Time; Standard Mode 14 mL per Time Hydrogen Peroxide Volume	Detection Mode 7 mL per Time; Standard Mode 14 mL per Time

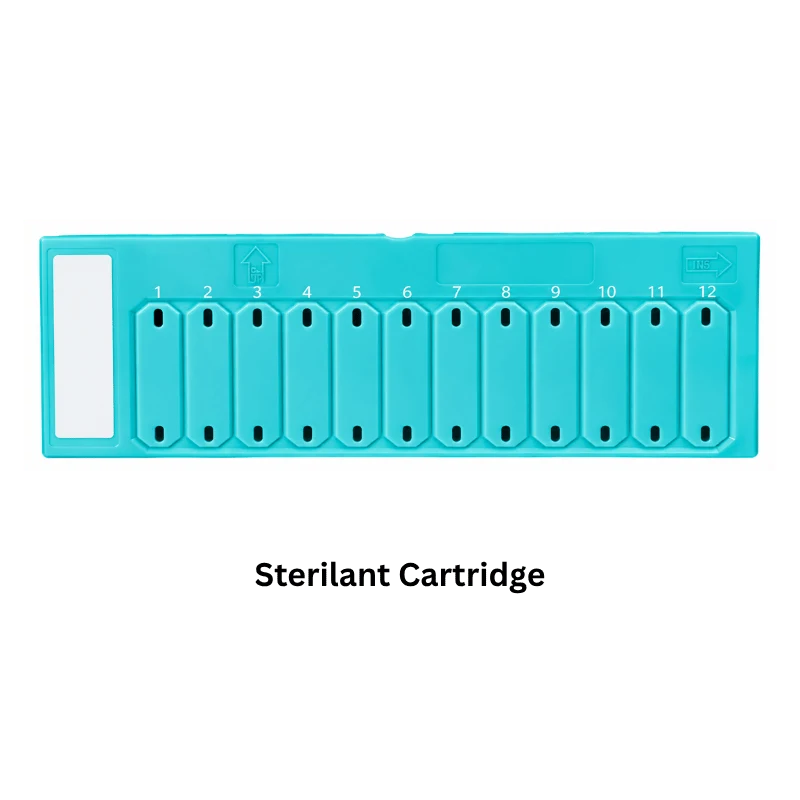

Number of Uses per Cartridge : Detection Mode 6 Times; Standard Mode 3 Times Number of Uses per Cartridge	Detection Mode 6 Times; Standard Mode 3 Times
Constant Temperature Power : 2000 W Constant Temperature Power	2000 W
Input Power : ≤4600 W Input Power	≤4600 W
Theoretical Maintenance Cycle : Six Months Theoretical Maintenance Cycle	Six Months
Chamber & Storage
Sterilization Chamber Dimensions (H×W×D) : 450 × 680 × 800 mm Sterilization Chamber Dimensions (H×W×D)	450 × 680 × 800 mm
Storage Shelf Dimensions (W×D) : 624 × 760 mm Storage Shelf Dimensions (W×D)	624 × 760 mm
Number of Storage Racks : Four Floors Number of Storage Racks	Four Floors
Storage Rack Load Capacity : Total 40 kg, 10 kg per Layer Storage Rack Load Capacity	Total 40 kg, 10 kg per Layer
Sterilization Chamber Material : 6061 Sterilization Chamber Material	6061
Shell Material : Q235 Shell Material	Q235
Installation Method : Swivel Casters with Brake Installation Method	Swivel Casters with Brake
Minimum Required Installation Dimensions (H×W×D) : 2000 × 2000 × 2000 mm Minimum Required Installation Dimensions (H×W×D)	2000 × 2000 × 2000 mm
Control & Recording
Display : 10-Inch TFT True Color Touchscreen Display	10-Inch TFT True Color Touchscreen
Printer : Dot Matrix Printer Printer	Dot Matrix Printer
Data Recording and Inquiry : Query and Print at Any Time Data Recording and Inquiry	Query and Print at Any Time
Dimensions & Weight
Overall Dimensions (H×W×D) : 1785 × 1000 × 1090 mm Overall Dimensions (H×W×D)	1785 × 1000 × 1090 mm
Packing Dimensions (H×W×D) : 2020 × 1140 × 1240 mm Packing Dimensions (H×W×D)	2020 × 1140 × 1240 mm
Net Weight : 460 kg Net Weight	460 kg
Gross Weight : 580 kg Gross Weight	580 kg
Electrical Specifications
Power Supply : 110–220 V, 50/60 Hz<br>3N~380 V, 50 Hz Power Supply	110–220 V, 50/60 Hz 3N~380 V, 50 Hz

H2O2 Controlled Dosing ➤ H2O2 Controlled Dosing
Low-temperature hydrogen peroxide plasma sterilization for compatible heat- and moisture-sensitive equipment. ➤ Low-temperature hydrogen peroxide plasma sterilization for compatible heat- and moisture-sensitive equipment.
Controlled sterilization chamber temperature of 45°C to 55°C. ➤ Controlled sterilization chamber temperature of 45°C to 55°C.
203 L effective chamber volume supports practical batch processing. ➤ 203 L effective chamber volume supports practical batch processing.
Controlled hydrogen peroxide dosing for detection and standard sterilization modes. ➤ Controlled hydrogen peroxide dosing for detection and standard sterilization modes.
Vacuum-based sterilization process with a minimum chamber vacuum level of 55 Pa. ➤ Vacuum-based sterilization process with a minimum chamber vacuum level of 55 Pa.
Four storage levels provide organized placement of sterilization loads. ➤ Four storage levels provide organized placement of sterilization loads.
40 kg total storage capacity with up to 10 kg load per level. ➤ 40 kg total storage capacity with up to 10 kg load per level.
10-inch TFT true-color touchscreen provides convenient operation and parameter monitoring. ➤ 10-inch TFT true-color touchscreen provides convenient operation and parameter monitoring.
Built-in dot-matrix printer supports sterilization record printing and process documentation. ➤ Built-in dot-matrix printer supports sterilization record printing and process documentation.
Data recording and inquiry function allows stored information to be queried and printed. ➤ Data recording and inquiry function allows stored information to be queried and printed.
Rectangular sterilization chamber provides practical internal space utilization. ➤ Rectangular sterilization chamber provides practical internal space utilization.
Swivel casters with brakes facilitate positioning while keeping the unit stable during operation. ➤ Swivel casters with brakes facilitate positioning while keeping the unit stable during operation.
Designed for short-term loading and continuous operation. ➤ Designed for short-term loading and continuous operation.
Robust 6061 chamber material and Q235 outer shell construction support long-term use. ➤ Robust 6061 chamber material and Q235 outer shell construction support long-term use.

Hospitals & Healthcare Facilities:Suitable for low-temperature sterilization of compatible heat- and moisture-sensitive medical equipment Hospitals & Healthcare Facilities
Suitable for low-temperature sterilization of compatible heat- and moisture-sensitive medical equipment
Operating Rooms & Surgical Departments:Supports sterilization of suitable surgical instruments and equipment that cannot undergo conventional high-temperature steam sterilization Operating Rooms & Surgical Departments
Supports sterilization of suitable surgical instruments and equipment that cannot undergo conventional high-temperature steam sterilization
Medical Device Processing:Designed for sterilizing compatible medical devices and instruments requiring controlled low-temperature processing Medical Device Processing
Designed for sterilizing compatible medical devices and instruments requiring controlled low-temperature processing
Laboratories & Research Institutes:Useful for sterilizing suitable laboratory equipment and materials that are sensitive to high temperatures or moisture Laboratories & Research Institutes
Useful for sterilizing suitable laboratory equipment and materials that are sensitive to high temperatures or moisture
Pharmaceutical Facilities:Supports low-temperature sterilization requirements for compatible pharmaceutical and production-related equipment Pharmaceutical Facilities
Supports low-temperature sterilization requirements for compatible pharmaceutical and production-related equipment
Dental & Clinical Facilities:Suitable for processing compatible heat-sensitive instruments where low-temperature sterilization is required Dental & Clinical Facilities
Suitable for processing compatible heat-sensitive instruments where low-temperature sterilization is required
