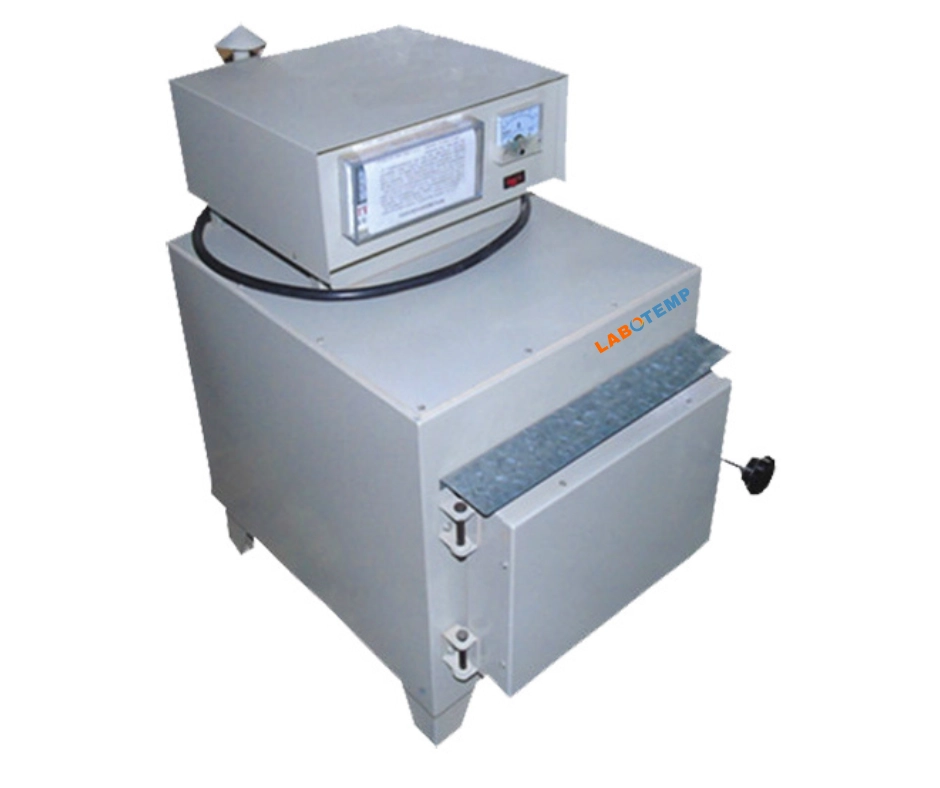

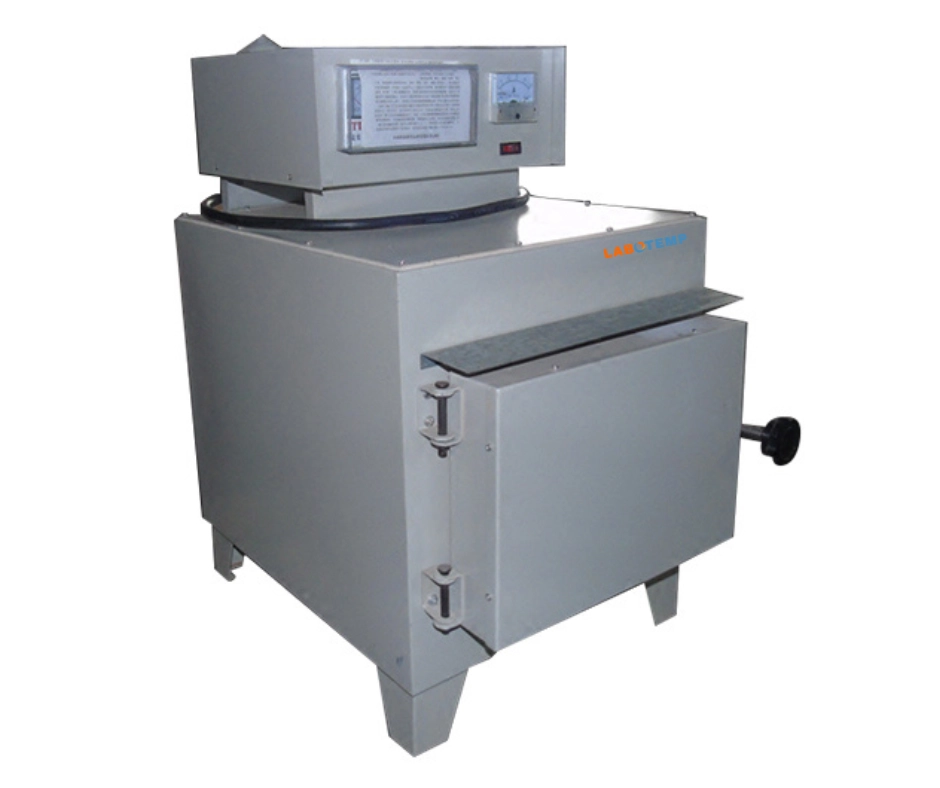

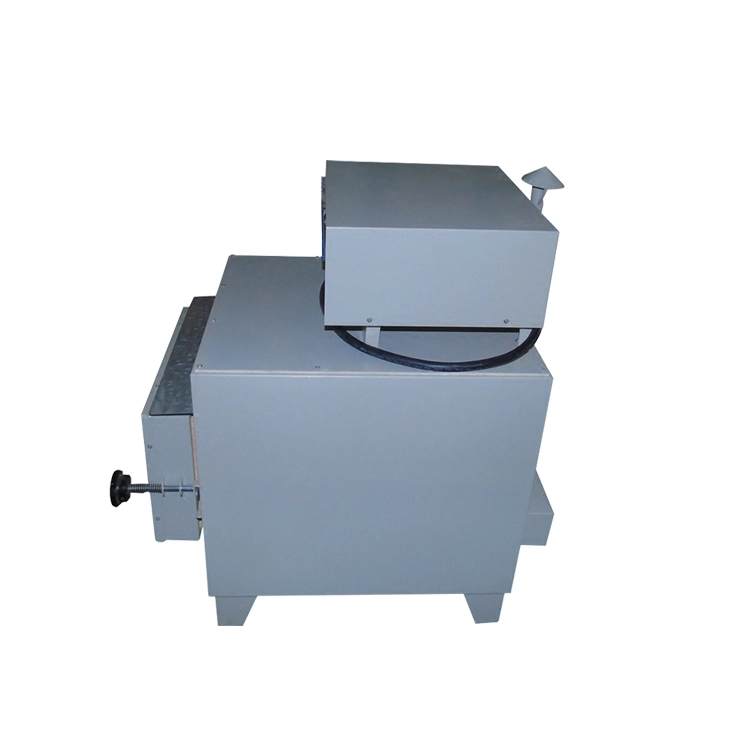

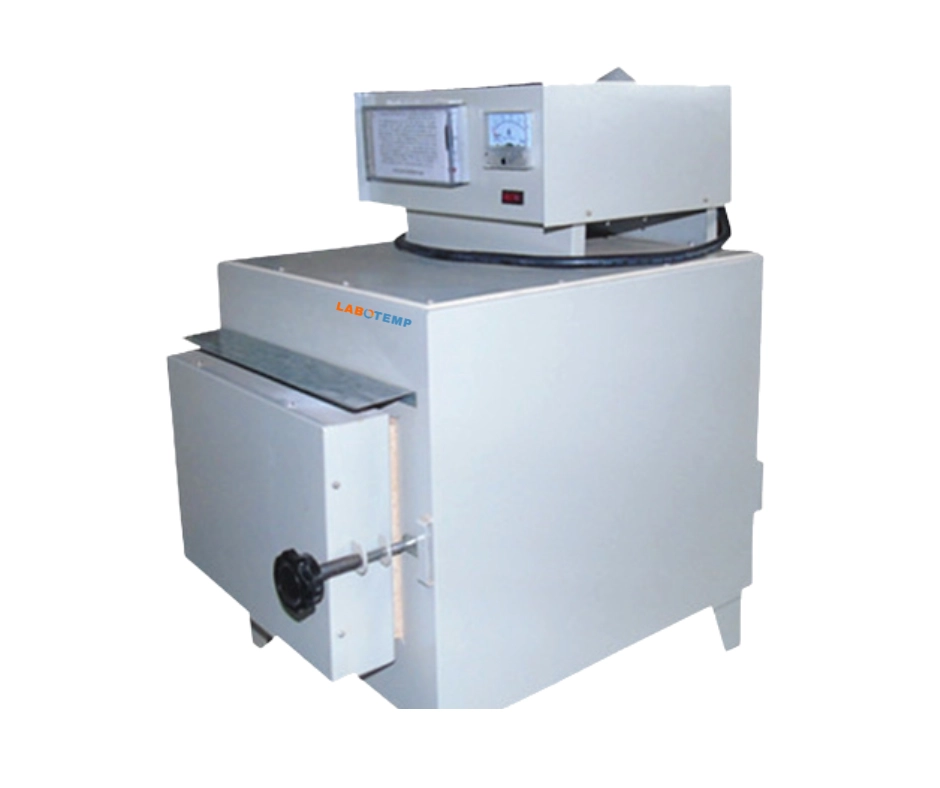

Labotemp Burnout Furnace FDB-01 is a high-efficiency laboratory furnace for dental labs and jewelry casting requiring reliable wax burnout and controlled heat treatment. Rated to 1000°C with a 4000W heater, the burnout oven reaches operating temperature within 60 minutes. The compact 30 × 20 × 12 cm chamber, 8 kWh thermal storage, and low power loss of 1.2 kWh ensure energy-efficient operation and uniform results with temperature uniformity of 15°C for burnout, preheating, and mold preparation.
This box-type resistance furnace features a KSW-type controller and precision thermocouple for stable, repeatable temperature control. Durable, low-maintenance construction supports dental workflows, porcelain processing, and jewelry casting. Widely specified as a dental burnout furnace, burnout kiln, porcelain furnace, and lab furnace, FDB-01 is suitable for wax elimination, casting preparation, and small-part heat treatment. As a trusted furnace manufacturer, Labotemp delivers dependable performance.
Why choose Labotemp Burnout Furnace FDB-01?
✓ Fast Heating: 4000W power with 60-minute heat-up time
✓ Precise Control: KSW controller for uniform burnout
✓ Energy Efficient: low power loss with 8 kWh heat storage
✓ Lab Ready: compact, durable, low-maintenance design for daily use
|
Temperature Rating : 1000°C Temperature Rating |
1000°C |
|
Power Consumption : 4,000W Power Consumption |
4,000W |
|
Heating Time : ≤60mins Heating Time |
≤60mins |
|
Power Loss : ≤ 1.2 kWh Power Loss |
≤ 1.2 kWh |
|
Heat Storage Capacity : 8 kWh Heat Storage Capacity |
8 kWh |
|
Temperature Uniformity : ≤ 15°C Temperature Uniformity |
≤ 15°C |
|
Chamber Size : 30 × 20 × 12 cm Chamber Size |
30 × 20 × 12 cm |
|
Voltage : 220V, 50Hz Voltage |
220V, 50Hz |
|
Net Weight : 82kg Net Weight |
82kg |
|
Gross Weight : 85kg Gross Weight |
85kg |
|
Package Size : 650 × 440 × 515 mm Package Size |
650 × 440 × 515 mm |
Voltage: 220V, 50Hz
Temperature Uniformity: ≤ 15°C
Temperature Rating: 1000°C
Power Loss: ≤ 1.2 kWh
Voltage : 220V, 50Hz
Temperature Control: PID temperature controller
Temperature Accuracy: ±1 °C
Special Notes: Fast heating; longer life (heating wire)
Voltage: 220V, 50Hz
Rated Power: 3000W
Rated Current : ≤ 15A
Package Size: 690 × 460 × 530 mm
Power supply: 220V, 110V 50/60Hz
Power: 1500W Max (including vacuum)
Package Dimension: 89 × 73 × 96 cm
Net Weight: 32kg
Weight: 25 kg (Without vacuum pump)
Vacuum Value: 0～99 KPa
Vacuum Time: 0～3600 Seconds
Vacuum Starting Temperature: 400～960℃
Voltage: 220V, 50Hz
Touch Screen: Standard industrial-grade anti-knock touch screen
Temperature Control System: 14-bit AD conversion for precise temperature accuracy
Status Monitoring: Automatic detection of all parameters and furnace status
Tray Opening Temperature Range: 600–1200 °C
Temperature Monitoring: Real-time
Temperature Calibration: Available
Stages per Program: 6
Voltage: 220V, 50Hz
Power Consumption: 2500 W (Max)
Package Size: 810 × 840 × 1280 mm
Net Weight : 58kg
Voltage: 220V, 50Hz
Vacuum Control: Can be set by time or temperature
Temperature Calibration: Temperature calibration by keyboard, time and room temperature display in real time
Sealing Performance: Excellent airtight vacuum sealing
Voltage: 220V, 50Hz
Thermocouple Lifespan: Increased by over 50% compared to standard models
Temperature Control: 14-bit AD conversion for high-precision temperature regulation
Package Size: 940 × 760 × 840 mm
Voltage: 220V, 50Hz
Vacuum Control: Adjustable by time or temperature
Temperature Calibration: Keyboard calibration with real-time display of time and room temperature
Sealing Performance: Excellent airtight vacuum sealing for stable firing results
Velocity of Temperature Increasing: 200°C/min max
Power Supply: 220V 50Hz
Power: 1500W Max
Packing Size: 890 × 730 × 960 mm
Voltage: 220V, 50Hz
Velocity of Temperature Increasing: 100°C/min (Max)
Power: 850 W (Max)
Package Size: 385 × 250 × 180 mm
