Tube Furnace 1200°C | 440 Mm Heating Zone FMT-05

Tube Furnace 1200°C | 440 Mm Heating Zone FMT-05

Name: Tube Furnace 1200°C | 440 Mm Heating Zone FMT-05
Brand: Labotemp
SKU: FMT-05
Price: 4296.00 USD
Availability: InStock
Rating: 4.7 (850 reviews)

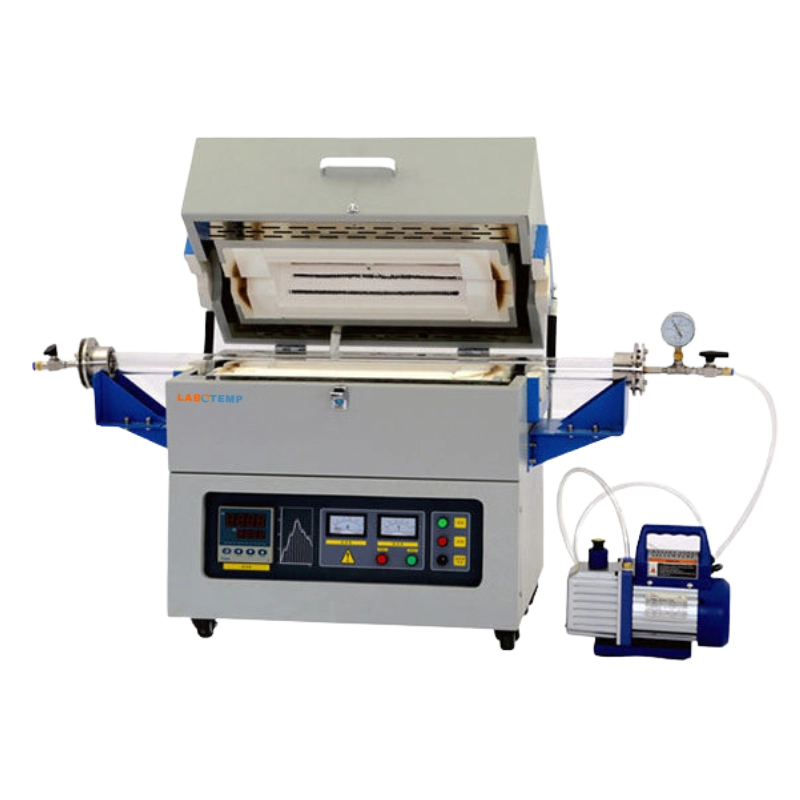

Labotemp Quartz Tube Furnace FMT-05 is a high-performance quartz tube furnace engineered for precision heat treatment to 1200°C (working ≤1100°C). It features a ∮40 mm quartz tube, 440 mm standard heating zone, 1000 mm total tube length, resistance-wire heating, PID automatic control and 30-segment programmable profiles delivering ±1°C accuracy and ±5°C uniformity. The 0–20°C/min ramp and alumina ceramic-fiber chamber ensure thermal efficiency in a compact 740×420×668 mm footprint.

Designed by a trusted furnace manufacturer and distributed via authorised furnace suppliers, FMT-05 suits material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. The quartz tube furnace supports controlled-atmosphere and vacuum tubular furnace configurations with optional touchscreen, PC software and safety interlock accessories, ideal as a lab furnace and tubular furnace for research and production.

Why choose Labotemp Tube Furnace FMT-05?
✓ Precision Control: PID regulation with 30-segment programmable profiles
✓ Quartz Tube Design: Oxidation-free construction for contamination-free lab operation.
✓ Uniform Heating: Single-zone 440 mm chamber ensures consistent temperature.

$4296

Datasheet

Maximum Temperature : 1200°C Maximum Temperature	1200°C
Standard Heating Zone Length (mm) : 440 Standard Heating Zone Length (mm)	440
Chamber Size (mm) : 40×440 Chamber Size (mm)	40×440
Standard Tube Diameter (mm) : ∮40 Standard Tube Diameter (mm)	∮40
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
Working Temperature : ≤1100℃ Working Temperature	≤1100℃
Temperature Accuracy : ±1℃ Temperature Accuracy	±1℃
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Temperature Uniformity : ±5℃ Temperature Uniformity	±5℃
Heating Rate : 0 ~ 20℃/min Heating Rate	0 ~ 20℃/min
External Size : 740420668 mm External Size	740420668 mm
Heating Element : Resistance Wire Heating Element	Resistance Wire
Thermocouple Type : K Type Thermocouple Type	K Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 80kg Net Weight	80kg
Gross Weight : 100kg Gross Weight	100kg

440 mm Heating Zone ➤ 440 mm Heating Zone
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments time temperature curve” can be set arbitrarily ➤ 30 segments time temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications ➤ Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
