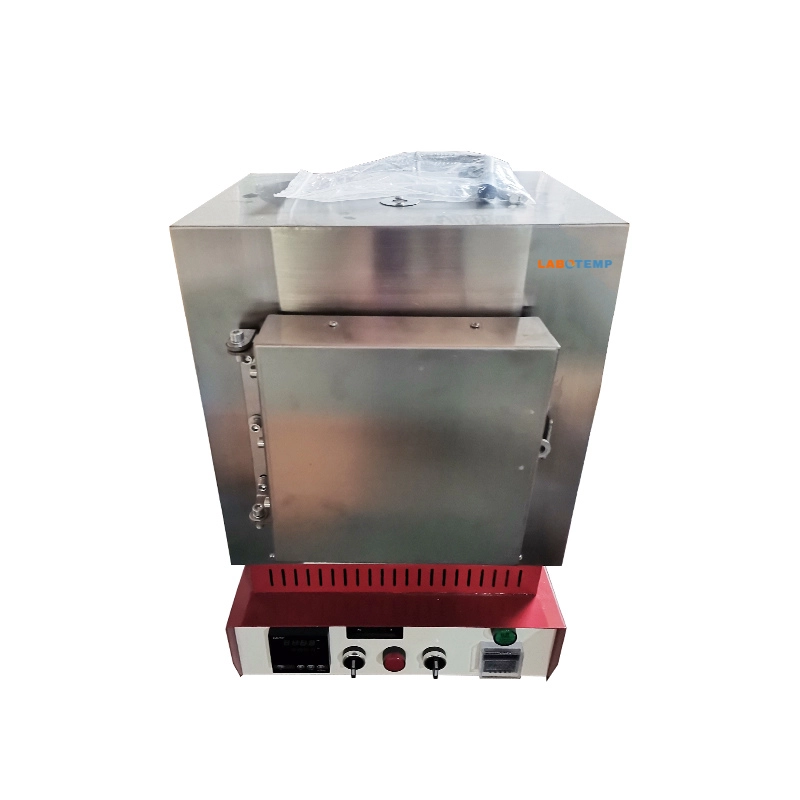

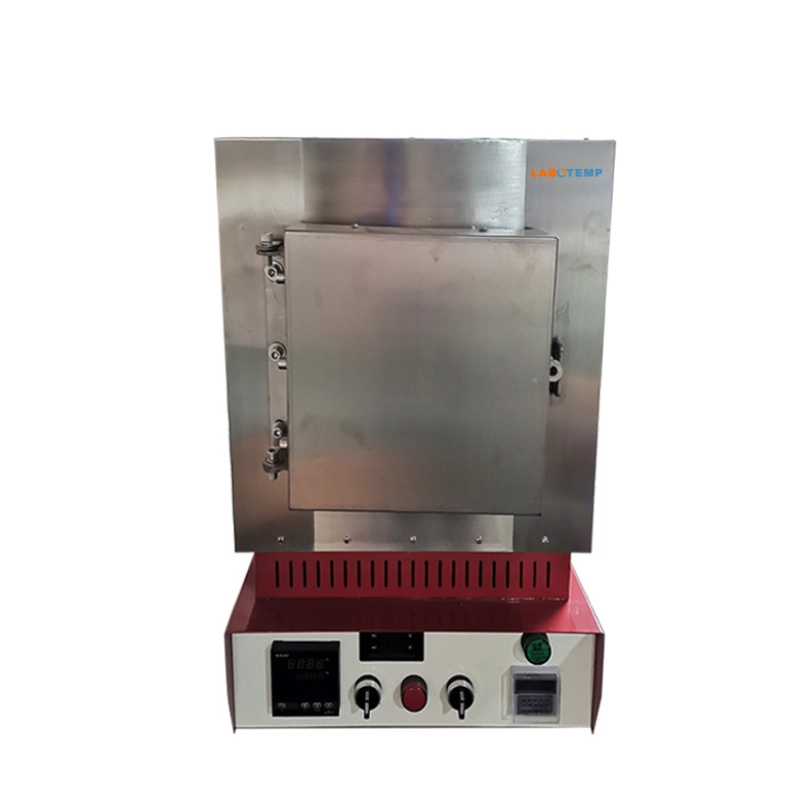

Labotemp Burnout Furnace FDB-03 is a high-efficiency furnace for dental laboratories, jewelry casting units and industrial labs for precise wax elimination and controlled burnout processing. With a maximum temperature of 1100°C and a 3000W heating system, this laboratory furnace delivers reliable heating for burnout, mold preparation, ceramic processing, metal heat treatment and material testing. Excellent insulation reduces heat loss and supports energy-efficient operation.
The burnout oven features microprocessor control with digital display for multi-stage programming (up to six segments), programmable hold times and controlled heating rates. Integrated fume extraction improves safety during wax burnout, while visual and acoustic alerts indicate program progress or faults. Specified as a dental burnout furnace, burnout kiln, porcelain furnace and lab furnace, FDB-03 delivers repeatable results for dental labs and research.
Why choose Labotemp Burnout Furnace FDB-03?
✓ High-temp capability: reliable to 1100°C.
✓ Advanced control: microprocessor multi-stage programming.
✓ Safe operation: integrated fume extraction and fault alerts.
✓ Lab-ready: compact, efficient and durable.
|
Highest Temperature : 1100℃ Highest Temperature |
1100℃ |
|
Rated Power : 3000W Rated Power |
3000W |
|
Rated Current : ≤ 15A Rated Current |
≤ 15A |
|
Voltage : 220V, 50Hz Voltage |
220V, 50Hz |
|
Net Weight : 42kg Net Weight |
42kg |
|
Gross Weight : 43kg Gross Weight |
43kg |
|
Furnace Size : 160x160x170mm Furnace Size |
160x160x170mm |
|
Package Size : 690 × 460 × 530 mm Package Size |
690 × 460 × 530 mm |
Voltage: 220V, 50Hz
Temperature Uniformity: ≤ 15°C
Temperature Rating: 1000°C
Power Loss: ≤ 1.2 kWh
Voltage : 220V, 50Hz
Temperature Control: PID temperature controller
Temperature Accuracy: ±1 °C
Special Notes: Fast heating; longer life (heating wire)
Voltage: 220V, 50Hz
Rated Power: 3000W
Rated Current : ≤ 15A
Package Size: 690 × 460 × 530 mm
Power supply: 220V, 110V 50/60Hz
Power: 1500W Max (including vacuum)
Packing Weight: 23.5 kg
Package Size: 890 × 730 × 960 mm
Voltage: 110V 220V, 50/60Hz
Touch Screen: Standard industrial-grade anti-knock touch screen
Temperature Control: 14-bit AD conversion for precise temperature regulation
Status Monitoring: Automatic detection of all operational parameters
Voltage: 220V, 50Hz
Touch Screen: Standard industrial-grade anti-knock touch screen
Temperature Control System: 14-bit AD conversion for precise temperature accuracy
Status Monitoring: Automatic detection of all parameters and furnace status
Voltage: 220V, 50Hz
Temperature Uniformity: Annular chamber ensures even heat distribution
Temperature Control Accuracy: 14-bit AD conversion for precise control
Sintering Time: Approximately 150 minutes (for crowns and bridges)
Voltage: 220V, 50Hz
Power Consumption: 2500 W (Max)
Package Size: 810 × 840 × 1280 mm
Net Weight : 58kg
Voltage: 220V, 50Hz
Vacuum Control: Can be set by time or temperature
Temperature Calibration: Temperature calibration by keyboard, time and room temperature display in real time
Sealing Performance: Excellent airtight vacuum sealing
Voltage: 220V, 50Hz
Thermocouple Lifespan: Increased by over 50% compared to standard models
Temperature Control: 14-bit AD conversion for high-precision temperature regulation
Package Size: 940 × 760 × 840 mm
Voltage: 220V, 50Hz
Vacuum Control: Adjustable by time or temperature
Temperature Calibration: Keyboard calibration with real-time display of time and room temperature
Sealing Performance: Excellent airtight vacuum sealing for stable firing results
Velocity of Temperature Increasing: 200°C/min max
Power Supply: 220V 50Hz
Power: 1500W Max
Packing Size: 890 × 730 × 960 mm
Voltage: 220V, 50Hz
Velocity of Temperature Increasing: 100°C/min (Max)
Power: 850 W (Max)
Package Size: 385 × 250 × 180 mm
