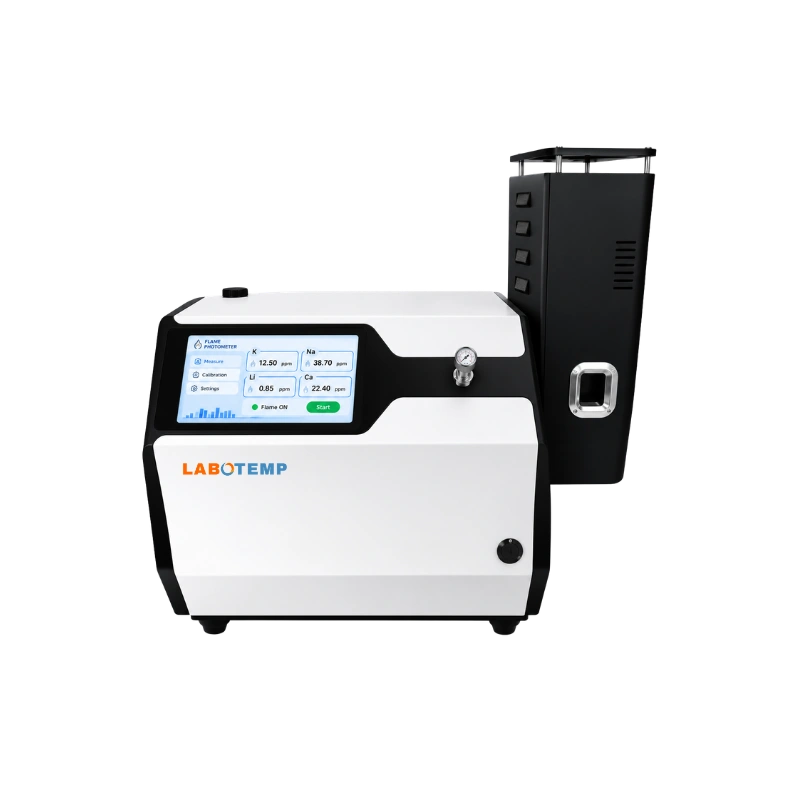

Labotemp Flame Photometer LFP-101 is a compact analytical instrument designed for flame photometry and direct measurement of potassium (K), sodium (Na), lithium (Li), and calcium (Ca) in routine laboratory analysis. Its 7-inch colour capacitive touch LCD provides an intuitive interface for displaying concentration values or light intensity, while the four-channel configuration supports efficient multi-element testing. With a reading range of 0.000–999.9 / 0–65535, response time of less than 8 seconds, and repeatability of ≤3%, the flame photometer provides consistent results for clinical, pharmaceutical, chemical, food, agricultural, and research applications.
Designed for dependable everyday operation, the LFP-101 combines straightforward touch-screen control with practical data-management and safety features. Automatic correlation-coefficient calculation, USB data export and communication, optional computer software, Bluetooth printer connectivity, and cloud-based interconnection simplify result recording and laboratory documentation. A fire-extinguishing protection device and gas-leakage alarm provide additional operational protection. Its compact design, low sample consumption, and reliable analytical performance make it a practical flame photometer for routine electrolyte and elemental analysis.
Why Choose Labotemp Flame Photometer LFP-101?
✓ Multi-Element Analysis: Direct measurement of potassium, sodium, lithium, and calcium.
✓ Fast Results: Response time of less than 8 seconds supports efficient routine testing.
✓ Reliable Measurement: Repeatability of ≤3% helps maintain consistent analytical performance.
| General Specifications | |
|
Measurement Elements : K, Na, Li, Ca Measurement Elements |
K, Na, Li, Ca |
|
Number of Channels : 4 Number of Channels |
4 |
|
Reading Range : 0.000–999.9 / 0–65535 Reading Range |
0.000–999.9 / 0–65535 |
|
Measurement Range : 0–100 ppm Measurement Range |
0–100 ppm |
|
Display : 7-inch Colour Capacitive Touch LCD Display |
7-inch Colour Capacitive Touch LCD |
|
Display Results : Concentration Value / Light Intensity Display Results |
Concentration Value / Light Intensity |
|
Linearity : ≥0.999 Linearity |
≥0.999 |
|
Repeatability : ≤3% Repeatability |
≤3% |
|
Response Time : <8 s Response Time |
<8 s |
| Analytical Performance | |
|
Sensitivity / Detection Limit : K: ≤0.004 mmol/L; Na: ≤0.008 mmol/L Sensitivity / Detection Limit |
K: ≤0.004 mmol/L; Na: ≤0.008 mmol/L |
|
Accuracy (Linearity Error) : K: ≤0.005 mmol/L; Na: ≤0.03 mmol/L Accuracy (Linearity Error) |
K: ≤0.005 mmol/L; Na: ≤0.03 mmol/L |
|
Li Detection Limit : ≤0.015 mmol/L Li Detection Limit |
≤0.015 mmol/L |
|
Ca Detection Limit : ≤0.050 mmol/L Ca Detection Limit |
≤0.050 mmol/L |
|
Li Accuracy (Linearity Error) : ≤0.021 mmol/L Li Accuracy (Linearity Error) |
≤0.021 mmol/L |
|
Ca Accuracy (Linearity Error) : ≤0.075 mmol/L Ca Accuracy (Linearity Error) |
≤0.075 mmol/L |
|
Stability : Relative change ≤3% per minute; total measurement variation ≤15% Stability |
Relative change ≤3% per minute; total measurement variation ≤15% |
|
Calibration : Multi-point calibration (≥3 points) Calibration |
Multi-point calibration (≥3 points) |
|
Correlation Coefficient : Automatic calculation Correlation Coefficient |
Automatic calculation |
| Operation | |
|
Flame : LPG / Propane / Butane Flame |
LPG / Propane / Butane |
|
Ignition : Automatic ignition Ignition |
Automatic ignition |
|
Sample Aspiration : Continuous sample aspiration Sample Aspiration |
Continuous sample aspiration |
|
Small Suction Spray Amount : <6 mL/min Small Suction Spray Amount |
<6 mL/min |
|
Interference Filters : Yes Interference Filters |
Yes |
|
Temperature / Environment : Room laboratory conditions Temperature / Environment |
Room laboratory conditions |
| Safety | |
|
Flame Safety : Flame failure detection Flame Safety |
Flame failure detection |
|
Gas Control : Gas control system Gas Control |
Gas control system |
|
Gas Leakage Protection : Gas leakage alarm Gas Leakage Protection |
Gas leakage alarm |
|
Fire Protection : Fire-extinguishing protection device Fire Protection |
Fire-extinguishing protection device |
| Connectivity & Data Management | |
|
USB Port : Yes USB Port |
Yes |
|
Communication : USB / RS232 Communication |
USB / RS232 |
|
Computer Software : Optional Computer Software |
Optional |
|
Printer : Standard Printer |
Standard |
|
Printer Type : Bluetooth printer Printer Type |
Bluetooth printer |
|
Cloud-Based Interconnection : Yes Cloud-Based Interconnection |
Yes |
| Electrical Specifications | |
|
Power Supply : AC 220–240 V, 50 Hz Power Supply |
AC 220–240 V, 50 Hz |
|
Rated Power : 400 W Rated Power |
400 W |
| Physical & Packaging Specifications | |
|
Package Size : 770 × 400 × 540 mm Package Size |
770 × 400 × 540 mm |
|
Net Weight : 20 kg Net Weight |
20 kg |
|
Gross Weight : 33 kg Gross Weight |
33 kg |
USB Port: Yes
Temperature / Environment: Room laboratory conditions
Stability: Relative change ≤3% per minute; total measurement variation ≤15%
Small Suction Spray Amount: <6 mL/min
