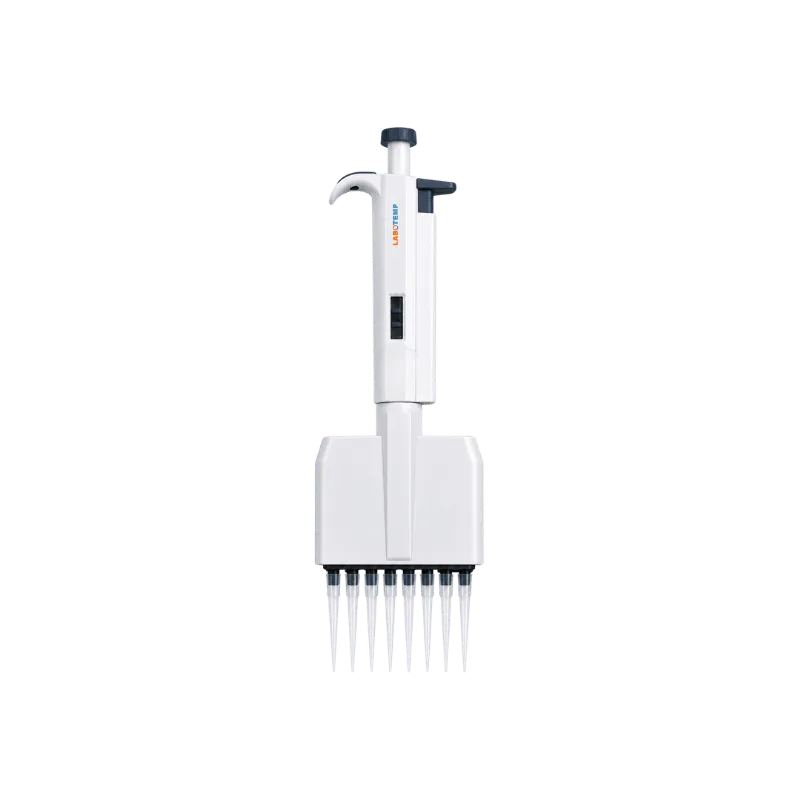

Labotemp 8 Channel Pipette LOP-101 is a fully autoclavable multi-channel pipette designed for efficient and consistent liquid handling across standard 96-well plates. With 8 channels, a 0.5–10 µL volume range, and 0.1 µL increments, it enables simultaneous transfer of multiple samples while supporting controlled low-volume pipetting. The lower half rotates to improve pipetting convenience, while the ergonomic design supports comfortable routine operation.
The LOP-101 features individual piston and tip cone assemblies for convenient repair and maintenance, along with a compound-material tip cone design that allows visual seal verification. It is compatible with universal pipette tips and can be fully autoclaved for high-temperature and high-pressure disinfection. At test volumes of 10, 5, and 1 µL, it provides specified accuracy of ±1.50%, ±2.50%, and ±4.00%, respectively, with precision of ≤1.50%, ≤2.50%, and ≤4.00%.
Why Choose Labotemp 8 Channel Pipette LOP-101?
✓ 8-Channel Operation: Enables simultaneous pipetting across multiple wells for efficient sample handling.
✓ Low-Volume Precision: 0.5–10 µL range with 0.1 µL increments supports controlled small-volume pipetting.
✓ Fully Autoclavable: The complete pipette can be autoclaved for high-temperature and high-pressure disinfection.
| General Specifications | |
|
Channel : 8 Channel |
8 |
|
Pipette Type : Fully Autoclavable Multi-Channel Pipette Pipette Type |
Fully Autoclavable Multi-Channel Pipette |
|
Volume Range : 0.5–10 µL Volume Range |
0.5–10 µL |
|
Increment : 0.1 µL Increment |
0.1 µL |
| Performance Specifications | |
|
Test Volume : 10 µL / 5 µL / 1 µL Test Volume |
10 µL / 5 µL / 1 µL |
|
Accuracy at 10 µL : ±1.50% Accuracy at 10 µL |
±1.50% |
|
Accuracy at 5 µL : ±2.50% Accuracy at 5 µL |
±2.50% |
|
Accuracy at 1 µL : ±4.00% Accuracy at 1 µL |
±4.00% |
|
Precision at 10 µL : ≤1.50% Precision at 10 µL |
≤1.50% |
|
Precision at 5 µL : ≤2.50% Precision at 5 µL |
≤2.50% |
|
Precision at 1 µL : ≤4.00% Precision at 1 µL |
≤4.00% |
| Design & Operation | |
|
Plate Compatibility : Standard 96-well plate Plate Compatibility |
Standard 96-well plate |
|
Dispensing Head : Rotating lower half for convenient pipetting Dispensing Head |
Rotating lower half for convenient pipetting |
|
Piston Assembly : Individual piston assemblies Piston Assembly |
Individual piston assemblies |
|
Tip Cone Assembly : Individual tip cone assemblies Tip Cone Assembly |
Individual tip cone assemblies |
|
Tip Cone Design : Compound material with visual seal verification Tip Cone Design |
Compound material with visual seal verification |
|
Tip Compatibility : Universal-style pipette tips Tip Compatibility |
Universal-style pipette tips |
|
Autoclavability : Whole device is autoclavable Autoclavability |
Whole device is autoclavable |
|
Maintenance : Individual piston and tip cone assemblies support repair and maintenance Maintenance |
Individual piston and tip cone assemblies support repair and maintenance |
| Compatible Tip – 80102010 | |
|
Tip Code : 80102010 Tip Code |
80102010 |
|
Tip Size : 3.5 × 32 mm Tip Size |
3.5 × 32 mm |
|
Tip Volume : 10 µL Tip Volume |
10 µL |
|
Packing : 1000 pcs/bag Packing |
1000 pcs/bag |
|
Bags per Carton : 100 bags/carton Bags per Carton |
100 bags/carton |
|
Total Tips per Carton : 100,000 pcs/carton Total Tips per Carton |
100,000 pcs/carton |
| Packaging | |
|
Package : 50 pcs/carton Package |
50 pcs/carton |
|
Gross Weight : 15.0 kg/carton Gross Weight |
15.0 kg/carton |
|
Carton Dimensions : 0.56 × 0.36 × 0.28 m³ Carton Dimensions |
0.56 × 0.36 × 0.28 m³ |
