Vacuum Furnace FVA-04

Name: Vacuum Furnace FVA-04
Brand: Labotemp
SKU: FVA-04
Price: 11279.00 USD
Availability: InStock
Rating: 4.8 (635 reviews)

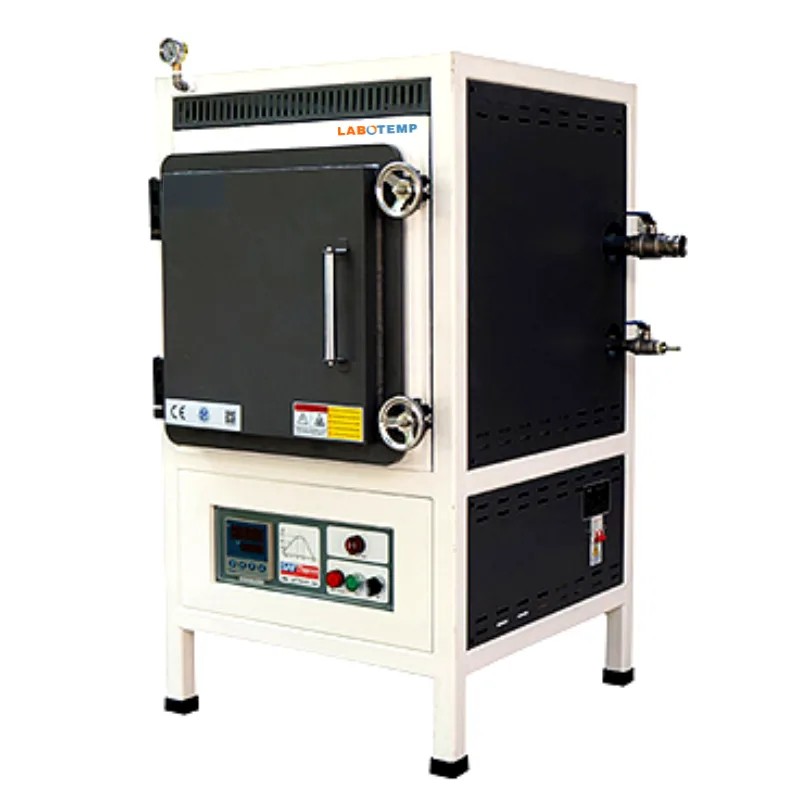

Labotemp Vacuum Furnace FVA-04 is a high-performance laboratory vacuum furnace engineered for precision thermal processing in research and industrial environments. Featuring an 18 L chamber and rated to 1200°C, this pre-vacuum supports vacuum annealing, sintering, curing and controlled heat treatment while reducing oxidation. HRE resistance wire heating elements ensure even heating and long operating life. The spacious 250×300×250 mm chamber accommodates larger samples. The system runs on 220V with efficient 6 kW heating for fast response and reliable continuous operation. Vacuum and inert-gas compatibility enable low-oxygen processing for powder metallurgy, ceramics, electronics and composite material development.
Designed and manufactured by experienced vacuum furnace manufacturer, Labotemp couples robust construction with application support and serviceability for university labs, material testing centers and industrial R&D.

Why choose Labotemp Vacuum Furnace FVA-04?

✓ High-Temperature Stability: Reliable performance up to 1200°C
✓ Uniform Heating: HRE elements ensure consistent thermal distribution
✓ Pre-Vacuum Capability: Reduces oxidation for cleaner processing
✓ Reliable Performance: Ideal for vacuum heat treatment, sintering, and annealing

$11279

Datasheet

Model NO. : FVA-04 Model NO.	FVA-04
Volume : 18L Volume	18L
Max Temp : 1200°C Max Temp	1200°C
Working Temp : 1100°C Working Temp	1100°C
Voltage : 220V 50Hz Voltage	220V 50Hz
Power : 6kW Power	6kW
Chamber Size : 250×300×250mm Chamber Size	250×300×250mm
Heating Element : HRE Wire Heating Element	HRE Wire
Vacuum / Pump System : No (Pre-vac Only) Vacuum / Pump System	No (Pre-vac Only)
Cooling Requirement : No Cooling Requirement	No
Net Weight : 290kg Net Weight	290kg
Gross Weight : 380kg Gross Weight	380kg
Package Size : 1110x1050x1240 mm Package Size	1110x1050x1240 mm

Safety Interlocks ➤ Safety Interlocks
Laboratory vacuum & atmosphere-compatible furnace designed for heat treatment processes up to 1200°C. ➤ Laboratory vacuum & atmosphere-compatible furnace designed for heat treatment processes up to 1200°C.
Equipped with HRE heating elements, ensuring stable performance, durability, and uniform thermal distribution within the chamber. ➤ Equipped with HRE heating elements, ensuring stable performance, durability, and uniform thermal distribution within the chamber.
Pre-vacuum system capability allows basic vacuum level and controlled atmosphere operation to reduce oxidation. ➤ Pre-vacuum system capability allows basic vacuum level and controlled atmosphere operation to reduce oxidation.

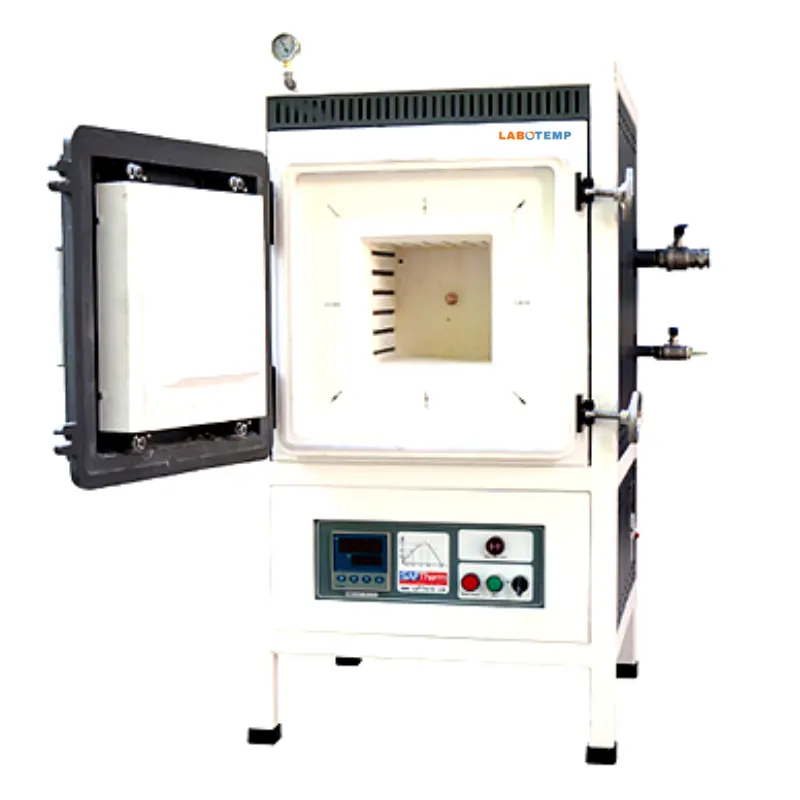

Spacious chamber (250×300×250 mm) supports medium to larger sample batches for research and pilot production. ➤ Spacious chamber (250×300×250 mm) supports medium to larger sample batches for research and pilot production.
Efficient 6 kW heating power with 220V input for fast heating response and reliable continuous operation. ➤ Efficient 6 kW heating power with 220V input for fast heating response and reliable continuous operation.

Ideal for annealing, sintering, curing, and degassing of metals, ceramics, and composite materials ➤ Ideal for annealing, sintering, curing, and degassing of metals, ceramics, and composite materials
Commonly used in universities, industrial laboratories, and material development centers ➤ Commonly used in universities, industrial laboratories, and material development centers
Suitable for powder metallurgy research, electronic components, thermal processing, and sample preparation under reduced-oxygen environment ➤ Suitable for powder metallurgy research, electronic components, thermal processing, and sample preparation under reduced-oxygen environment
