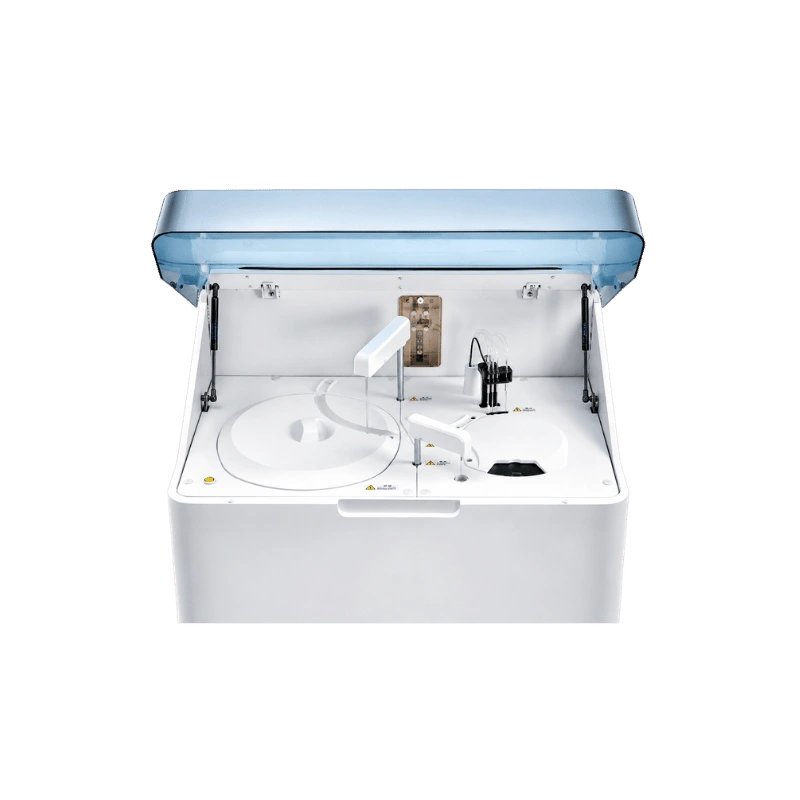

Labotemp Fully Automated Chemistry Analyzer LCA-201 is a high-throughput chemistry analyzer machine designed for routine clinical chemistry testing in diagnostic and laboratory settings. The system supports serum, plasma, urine, cerebrospinal fluid and whole blood for HbA1c testing, with a biochemical testing speed of up to 360 T/H and optional ISE throughput of up to 480 T/H. It can simultaneously analyze up to 103 projects, supporting a broad testing workload including liver and renal function, lipid profile, cardiovascular markers, glucose metabolism, pancreatic function, special proteins, rheumatic testing, anemia-related parameters and inorganic ions.
Designed for consistent and repeatable analysis, the clinical chemistry analyzer maintains the reaction vessel at 37±0.1°C and provides continuous reagent refrigeration at 2–12°C. Its optical system uses 12 detection wavelengths from 340 to 800 nm, while liquid-level detection, volume tracking, 3D anti-collision and intelligent full-needle cleaning support reliable sample handling. Sample volumes range from 2–35 μL, with dilution testing from 3 to 100 times, and sample-needle cross-contamination is specified at ≤0.05%. Automated reaction-cup cleaning, optimized mixing and a water consumption of ≤6.5 L/h further support practical long-term laboratory operation.
Why Choose Labotemp Fully Automated Chemistry Analyzer LCA-201?
✓ High Testing Throughput: Up to 360 T/H biochemical testing with optional ISE capability up to 480 T/H.
✓ Stable Reaction Conditions: Maintains reaction temperature at 37±0.1°C with refrigerated reagents at 2–12°C.
✓ Reliable Sample Handling: Liquid-level detection, volume tracking, 3D anti-collision and full-needle cleaning help support consistent testing.
| General Specifications | |
|
Product Type : Fully Automated Chemistry Analyzer Product Type |
Fully Automated Chemistry Analyzer |
|
Biochemical Module Throughput : Maximum 360 T/H Biochemical Module Throughput |
Maximum 360 T/H |
|
Simultaneous Analysis Projects : Up to 103 Simultaneous Analysis Projects |
Up to 103 |
|
Sample Types : Serum, Plasma, Urine, Cerebrospinal Fluid, Whole Blood (HbA1c) Sample Types |
Serum, Plasma, Urine, Cerebrospinal Fluid, Whole Blood (HbA1c) |
| Sample Unit | |
|
Sample Positions : 50–100 Sample Positions |
50–100 |
|
Sample Volume : 2–35 μL Sample Volume |
2–35 μL |
|
Sample Volume Increment : 0.1 μL Sample Volume Increment |
0.1 μL |
|
Sample Addition Technology : Liquid Level Detection, Volume Tracking, 3D Anti-Collision Sample Addition Technology |
Liquid Level Detection, Volume Tracking, 3D Anti-Collision |
|
Needle Blockage Detection : Optional Needle Blockage Detection |
Optional |
|
Needle Cleaning : Intelligent Full-Needle 3D Cleaning Needle Cleaning |
Intelligent Full-Needle 3D Cleaning |
|
Sample Dilution : Supported Sample Dilution |
Supported |
|
Dilution Factor : 3–100 Times Dilution Factor |
3–100 Times |
|
Sample Needle Cross-Contamination Rate : ≤0.05% Sample Needle Cross-Contamination Rate |
≤0.05% |
| Reagent & Reaction Unit | |
|
Reagent Positions : 50–100 Reagent Positions |
50–100 |
|
Reagent Refrigeration : 2–12°C, Continuous Refrigeration for 24 Hours Reagent Refrigeration |
2–12°C, Continuous Refrigeration for 24 Hours |
|
Reagent Volume : 10–200 μL Reagent Volume |
10–200 μL |
|
Reagent Volume Increment : 0.5 μL Reagent Volume Increment |
0.5 μL |
|
Reaction Cups : 80 Special Optical Plastic Colorimetric Cups Reaction Cups |
80 Special Optical Plastic Colorimetric Cups |
|
Reaction Temperature : 37±0.1°C Reaction Temperature |
37±0.1°C |
|
Reaction Liquid Volume : 100–360 μL Reaction Liquid Volume |
100–360 μL |
|
Reaction Cup Cleaning : Cleaning Agent and Warm Water Reaction Cup Cleaning |
Cleaning Agent and Warm Water |
| Optical System | |
|
Illuminant : 12V, 20W Long-Life Halogen Tungsten Lamp Illuminant |
12V, 20W Long-Life Halogen Tungsten Lamp |
|
Lamp Service Life : 2000 H Lamp Service Life |
2000 H |
|
Beam Splitting Method : Post-Holographic Concave Grating Beam Splitting System Beam Splitting Method |
Post-Holographic Concave Grating Beam Splitting System |
|
Detection Wavelengths : 340 nm, 380 nm, 412 nm, 450 nm, 505 nm, 546 nm, 570 nm, 605 nm, 660 nm, 700 nm, 740 nm, 800 nm Detection Wavelengths |
340 nm, 380 nm, 412 nm, 450 nm, 505 nm, 546 nm, 570 nm, 605 nm, 660 nm, 700 nm, 740 nm, 800 nm |
|
Number of Detection Wavelengths : 12 Number of Detection Wavelengths |
12 |
|
Absorbance Range : 0–3.5 A Absorbance Range |
0–3.5 A |
|
Stray Light : Absorbance should be not less than 4.9 Stray Light |
Absorbance should be not less than 4.9 |
| Electrical, Environmental & Physical Specifications | |
|
Power Supply : 100V–240V, 50/60 Hz Power Supply |
100V–240V, 50/60 Hz |
|
Ambient Temperature : 15–30°C Ambient Temperature |
15–30°C |
|
Operating Altitude : -400 m–2000 m Operating Altitude |
-400 m–2000 m |
|
Water Consumption : ≤6.5 L/h Water Consumption |
≤6.5 L/h |
|
Main Unit Dimensions (L × W × H) : 860 × 660 × 920 mm Main Unit Dimensions (L × W × H) |
860 × 660 × 920 mm |
Water Consumption: ≤6.5 L/h
Stray Light: Absorbance should be not less than 4.9
Simultaneous Analysis Projects: Up to 103
Sample Volume Increment: 0.1 μL
Wavelength Accuracy: ±2 nm
Wavelength: 340 / 405 / 450 / 510 / 546 / 578 / 630 nm, plus 2 open filter positions
Screen: 7.0 inch LCD touch screen
Sample Type: Serum, Plasma, Urine, Cerebrospinal fluid, etc
