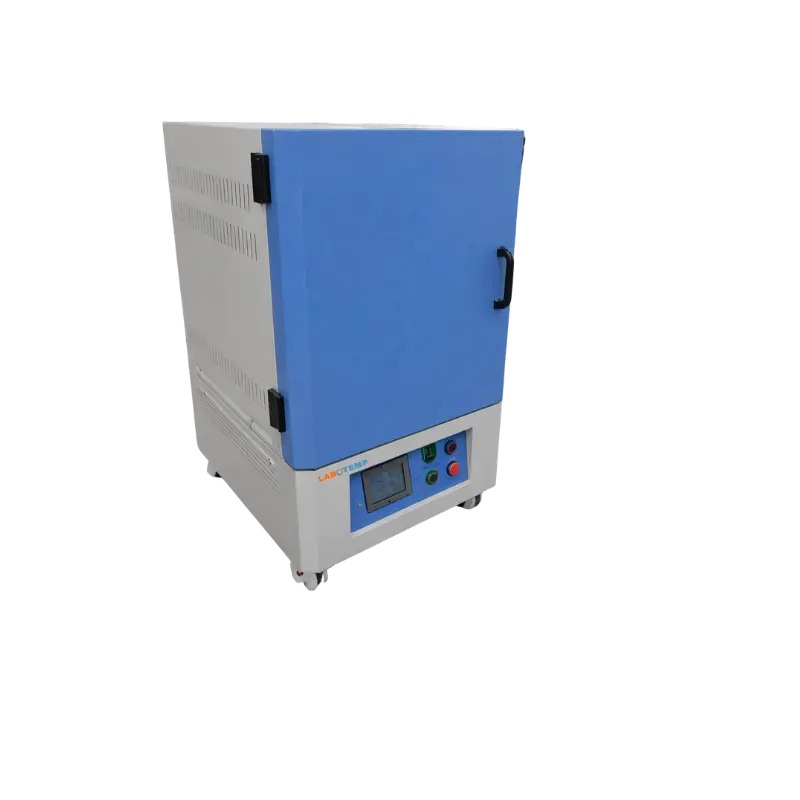

Muffle Furnace FMU-03A

Name: Muffle Furnace FMU-03A
Brand: Labotemp
SKU: FMU-03A
Rating: 4.5 (969 reviews)

Labotemp Electric Muffle Furnace FMU-03A is a high-performance box type furnace designed for precise and uniform heating in laboratory and industrial applications. Built for tasks such as material testing, ashing, heat treatment, and research analysis, this advanced muffle furnace machine delivers consistent thermal performance up to 1000°C, with a maximum allowable temperature of 1100°C. The chamber is constructed with high-purity refractory materials and efficient insulation, ensuring excellent temperature stability, reduced heat loss, and energy-efficient operation in demanding environments.

Engineered for accuracy and long-term reliability, the furnace features a PID intelligent temperature control system with self-tuning capability, providing precise control (±3°C) and programmable heating cycles. The integrated K-type thermocouple ensures accurate temperature monitoring, while the double-layer insulated structure keeps the outer surface safe to touch even at high internal temperatures. Safety features such as over-temperature protection, real-time voltage and current monitoring, and durable construction with corrosion-resistant coating make it ideal for continuous laboratory use. Its fast heating rate and robust design ensure dependable performance across research institutions, universities, and industrial labs.

Why Choose Labotemp Electric Muffle Furnace FMU-03A

✓ Trusted muffle furnace manufacturer: Labotemp ensures quality, precision, and durability
✓ Stable temperature control: PID system with accurate ±3°C regulation
✓ Safe & reliable operation: Over-temperature protection and durable construction

$4034

Equipment Type : Box-type muffle furnace Equipment Type	Box-type muffle furnace
Maximum Operating Temperature : 1000°C Maximum Operating Temperature	1000°C
Maximum Allowable Temperature : 1100°C Maximum Allowable Temperature	1100°C
Internal Chamber Volume : 16 liters Internal Chamber Volume	16 liters
Internal Chamber Size (D×W×H) : 250 × 400 × 160 mm Internal Chamber Size (D×W×H)	250 × 400 × 160 mm
External Dimensions (L×W×H) : 750 × 600 × 800 mm External Dimensions (L×W×H)	750 × 600 × 800 mm
Weight : 130 – 150 kg Weight	130 – 150 kg
Chamber Material : Monolithic refractory brick Chamber Material	Monolithic refractory brick
Outer Casing : Electro-galvanized steel with epoxy coating Outer Casing	Electro-galvanized steel with epoxy coating
Furnace Structure : Side door, upper & lower structure Furnace Structure	Side door, upper & lower structure
Heating Element : Electric resistance wire Heating Element	Electric resistance wire
Heating Power : 5 kW Heating Power	5 kW
Heating Rate : 0 – 30°C/min Heating Rate	0 – 30°C/min
Temperature Control Accuracy : ±3°C Temperature Control Accuracy	±3°C
Thermocouple Type : Type K Thermocouple Type	Type K
Time to Max Temperature : 30 – 50 minutes Time to Max Temperature	30 – 50 minutes
Voltage : 110 V Voltage	110 V
Frequency : 60 Hz Frequency	60 Hz
Phase : Single phase Phase	Single phase
Control System : Integrated electronic control system Control System	Integrated electronic control system
Display : Electronic temperature display Display	Electronic temperature display
Monitoring : Voltage & current (amperage) sensors Monitoring	Voltage & current (amperage) sensors
Net Weight : 145 kg Net Weight	145 kg
Gross Weight : 180 kg Gross Weight	180 kg
Package size : 870x690x950 mm Package size	870x690x950 mm

Energy Efficient
➤ Energy Efficient
PID intelligent temperature control with high precision regulation
➤ PID intelligent temperature control with high precision regulation
Uniform heating from three sides for consistent thermal distribution
➤ Uniform heating from three sides for consistent thermal distribution
Lightweight ceramic fiber insulation for energy efficiency
➤ Lightweight ceramic fiber insulation for energy efficiency
Double-layer furnace body with air gap for thermal safety
➤ Double-layer furnace body with air gap for thermal safety
Outer surface remains safe to touch even at high temperatures
➤ Outer surface remains safe to touch even at high temperatures
High-purity polycrystalline fiber insulation for durability
➤ High-purity polycrystalline fiber insulation for durability
Fast heating rate with stable high-temperature performance
➤ Fast heating rate with stable high-temperature performance
Integrated electronic system with real-time monitoring
➤ Integrated electronic system with real-time monitoring
Voltage and current monitoring for operational transparency
➤ Voltage and current monitoring for operational transparency
Thyristor-controlled system for stable power regulation
➤ Thyristor-controlled system for stable power regulation
Corrosion-resistant and oxidation-resistant chamber design
➤ Corrosion-resistant and oxidation-resistant chamber design
Compact structure with optimized space utilization
➤ Compact structure with optimized space utilization
Side-opening door design for easy sample handling
➤ Side-opening door design for easy sample handling
Over-temperature protection for safe operation
➤ Over-temperature protection for safe operation

Heat treatment, annealing, and sintering of metals, ceramics, and composites
➤ Heat treatment, annealing, and sintering of metals, ceramics, and composites
Ash content analysis and material thermal testing in QC labs
➤ Ash content analysis and material thermal testing in QC labs
Pharmaceutical and chemical labs for sample calcination and residue analysis
➤ Pharmaceutical and chemical labs for sample calcination and residue analysis
University and research labs for high-temperature experiments
➤ University and research labs for high-temperature experiments
Industrial labs for material development and process validation
➤ Industrial labs for material development and process validation
Mining and metallurgy labs for ore and mineral testing
➤ Mining and metallurgy labs for ore and mineral testing
