Small Autoclave PTA-07

Name: Small Autoclave PTA-07
Brand: Labotemp
SKU: PTA-07
Price: 2879.00 USD
Availability: InStock
Rating: 4.8 (972 reviews)

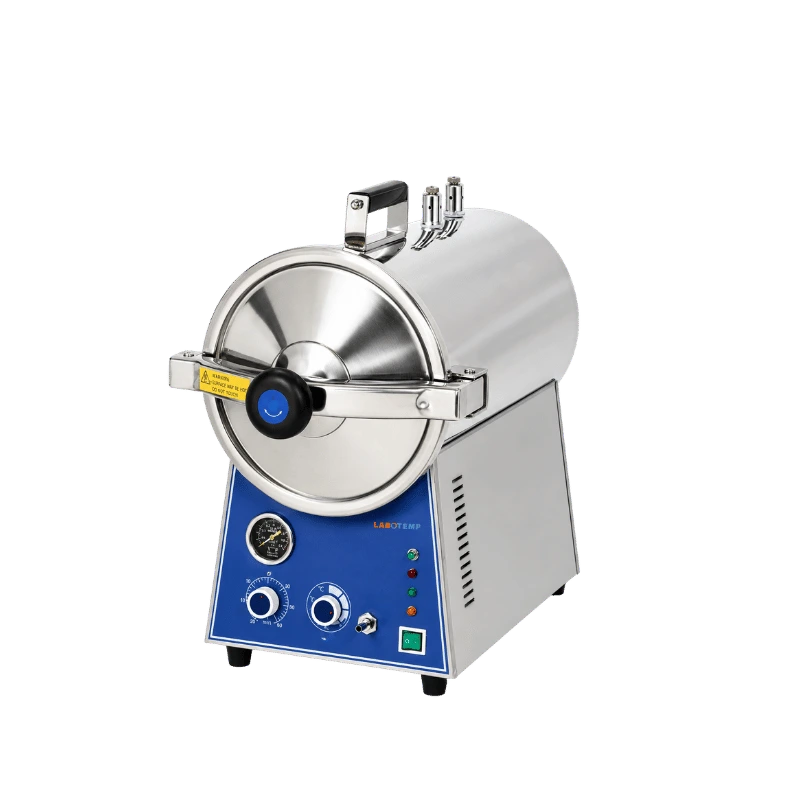

Labotemp Small Autoclave PTA-07 is a compact tabletop steam sterilizer designed for routine sterilization of heat- and moisture-resistant laboratory and clinical instruments. With a 16 L stainless steel sterilizing chamber, it operates at a working pressure of 0.25 MPa and a working temperature of 134°C, with an adjustable temperature range of 105–134°C. Computer-controlled automatic sterilization simplifies operation, while the 0–60 minute timer allows the cycle duration to be selected according to the load. Its compact tabletop design makes it suitable for laboratories and clinical environments where reliable sterilization is required without a large equipment footprint.

The PTA-07 incorporates practical safety and operational features for dependable daily use. Over-temperature and over-pressure protection helps safeguard the chamber during operation, while water-level protection provides an alarm when water is insufficient. After sterilization, the system automatically cuts power and provides an alarm, helping reduce unnecessary energy use and improving operational safety. The fully stainless steel construction supports durability and easier maintenance, while the supplied sterilizing plates provide organized loading of compatible instruments.

Why Choose Labotemp Small Autoclave PTA-07?

✓ Compact 16 L Capacity: Practical chamber size for routine small-batch sterilization.
✓ Stable Sterilization: 134°C working temperature with ≤±1°C heat average.
✓ Built-In Protection: Over-temperature, over-pressure and water-level safety functions.

$2879

Datasheet

General Specifications
Sterilizing Chamber Volume : 16 L Sterilizing Chamber Volume	16 L
Chamber Size : Φ250 × 360 mm Chamber Size	Φ250 × 360 mm
Working Pressure : 0.25 MPa Working Pressure	0.25 MPa
Working Temperature : 134°C Working Temperature	134°C
Temperature Adjustment Range : 105–134°C Temperature Adjustment Range	105–134°C
Timer Range : 0–60 min Timer Range	0–60 min
Heat Average : ≤ ±1°C Heat Average	≤ ±1°C
Sterilization & Loading
Sterilizing Plate Size : 340 × 200 × 30 mm Sterilizing Plate Size	340 × 200 × 30 mm
Number of Sterilizing Plates : 3 pieces Number of Sterilizing Plates	3 pieces
Sterilization Control : Computer-controlled automatic sterilization Sterilization Control	Computer-controlled automatic sterilization
Maximum Temperature : 134°C Maximum Temperature	134°C
Water Protection : Water-level protection with alarm Water Protection	Water-level protection with alarm
Safety & Operation
Over-Temperature Protection : Available Over-Temperature Protection	Available
Over-Pressure Protection : Available Over-Pressure Protection	Available
Automatic Power Cut-Off : After completion of sterilization Automatic Power Cut-Off	After completion of sterilization
End-of-Cycle Alarm : Available End-of-Cycle Alarm	Available
Construction : Fully stainless steel structure Construction	Fully stainless steel structure
Electrical & Physical Specifications
Power : 1.5 kW Power	1.5 kW
Power Supply : AC 220 V, 50 Hz Power Supply	AC 220 V, 50 Hz
Machine Dimensions : 545 × 328 × 423 mm Machine Dimensions	545 × 328 × 423 mm
Exterior Package Dimensions : 620 × 410 × 570 mm Exterior Package Dimensions	620 × 410 × 570 mm
Gross / Net Weight : 17 / 15 kg Gross / Net Weight	17 / 15 kg

Automatic Sterilization ➤ Automatic Sterilization
Rapid Sterilization- 134°C operation supports short sterilization cycles for compatible instruments ➤ Rapid Sterilization- 134°C operation supports short sterilization cycles for compatible instruments
Adjustable Temperature- Selectable temperature range from 105–134°C according to processing requirements ➤ Adjustable Temperature- Selectable temperature range from 105–134°C according to processing requirements
Adjustable Timer- 0–60 minute timer for flexible control of sterilization duration ➤ Adjustable Timer- 0–60 minute timer for flexible control of sterilization duration
Stable Heating- Heat average of ≤±1°C for consistent temperature conditions ➤ Stable Heating- Heat average of ≤±1°C for consistent temperature conditions
Water Level Protection- Provides an alarm when insufficient water is detected ➤ Water Level Protection- Provides an alarm when insufficient water is detected
Over Temperature Protection- Helps protect the sterilizer during excessive temperature conditions ➤ Over Temperature Protection- Helps protect the sterilizer during excessive temperature conditions
Over Pressure Protection- Provides additional safety during pressurized steam operation ➤ Over Pressure Protection- Provides additional safety during pressurized steam operation
Automatic Power Cut Off- Automatically cuts power after completion of sterilization ➤ Automatic Power Cut Off- Automatically cuts power after completion of sterilization
End of Cycle Alarm- Alerts the operator when the sterilization cycle is completed ➤ End of Cycle Alarm- Alerts the operator when the sterilization cycle is completed
Stainless Steel Construction- Fully stainless steel structure for durable routine use ➤ Stainless Steel Construction- Fully stainless steel structure for durable routine use

Laboratory Instrument Sterilization: Suitable for routine steam sterilization of compatible heat and moisture resistant laboratory instruments Laboratory Instrument Sterilization
Suitable for routine steam sterilization of compatible heat and moisture resistant laboratory instruments
Clinical Instrument Sterilization: Supports sterilization of suitable instruments used in clinical and healthcare environments Clinical Instrument Sterilization
Supports sterilization of suitable instruments used in clinical and healthcare environments
Dental Instrument Sterilization: Suitable for sterilizing compatible dental instruments and small batches requiring rapid processing Dental Instrument Sterilization
Suitable for sterilizing compatible dental instruments and small batches requiring rapid processing
Small Batch Sterilization: Ideal for laboratories and clinics requiring convenient sterilization of smaller instrument loads Small Batch Sterilization
Ideal for laboratories and clinics requiring convenient sterilization of smaller instrument loads
Routine Laboratory Use: Provides a compact tabletop solution for regular steam sterilization applications Routine Laboratory Use
Provides a compact tabletop solution for regular steam sterilization applications
