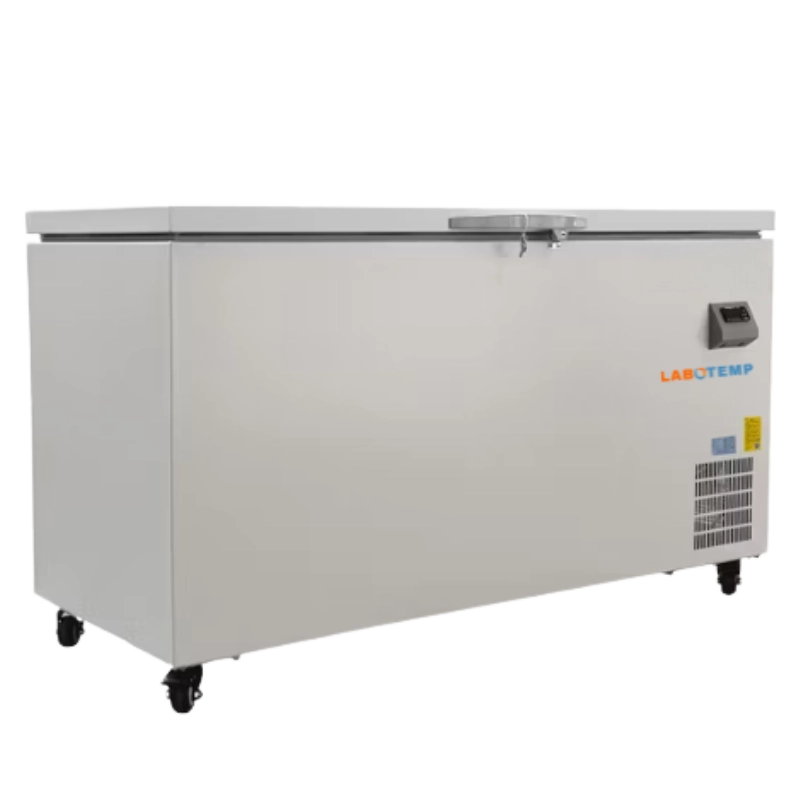

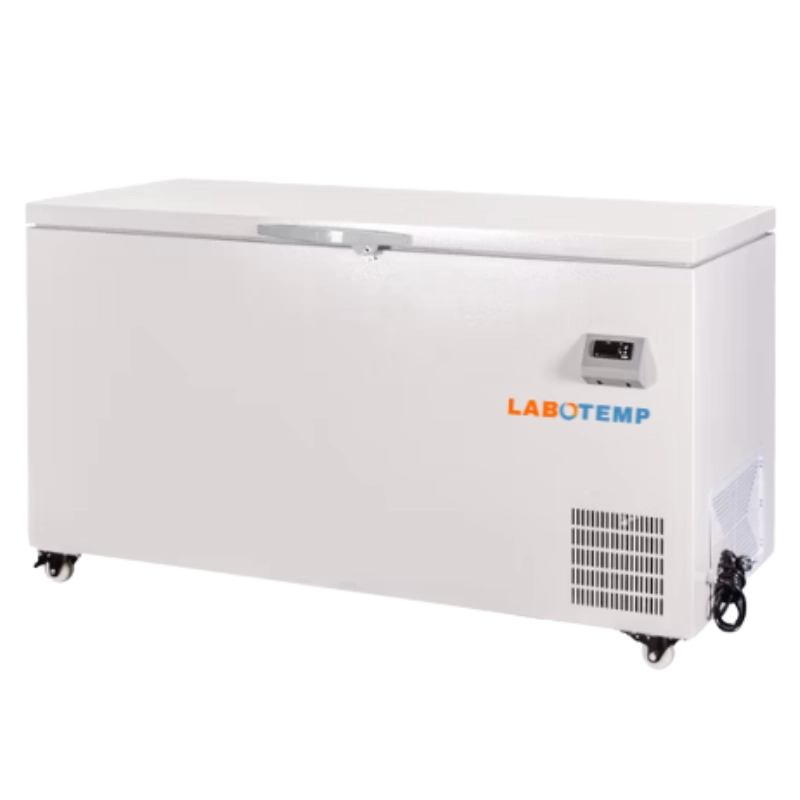

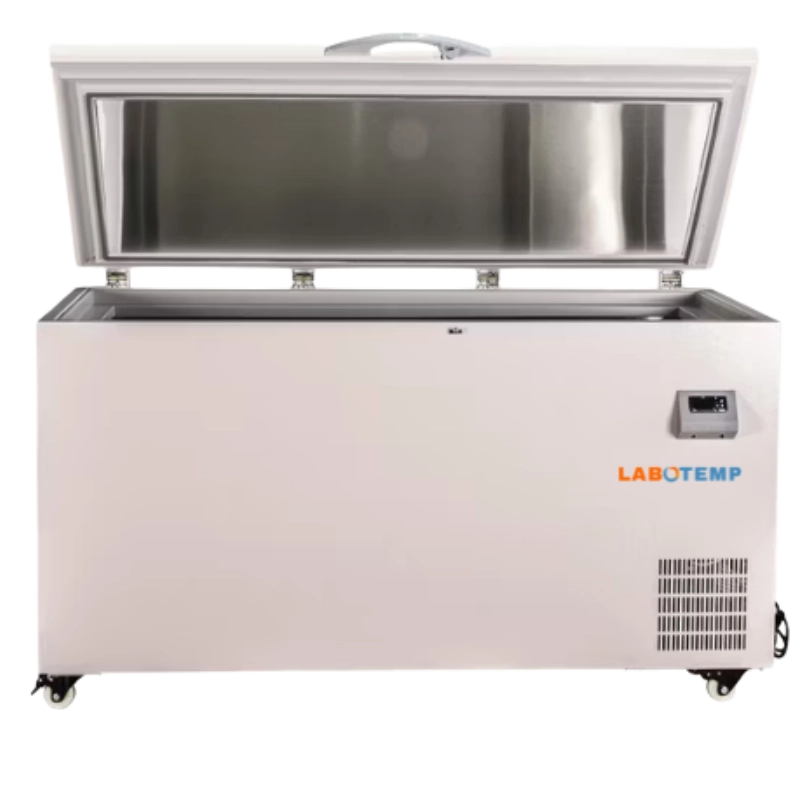

Labotemp Ultra Low Temperature Freezer ULF-05 offers 320L capacity with advanced, reliable cooling from -40°C to -80°C, ideal for preserving biological samples, vaccines, and research materials. Constructed with a stainless steel 304 interior and powder-coated steel exterior, it ensures durability and superior insulation with a 100mm foaming layer. Equipped with a high-performance SECOP (DANFOSS) compressor, fluorine-free refrigerant, and German EBM condenser fans, it delivers stable, eco-friendly performance. The electronic control system, digital display, and dual alarms ensure precise and safe operation.
| Model | ULF-05 |
| Capacity | 320L |
| Temperature range | -40°C to -80°C, adjustable |
| Compressor | (SECOP)DANFOSS |
| Type | Horizontal |
| Voltage | 220V50Hz/ 110v 60Hz |
| Alarm | Audible and Visual alarm |
| Input Power | 480W |
| Power consumption | 6.6kw.h/24h |
| Protect Grade | I/B |
| Climate type | N |
| Refrigerant | Fluorine free environmental protection refrigerant |
| Refrigeration system | Single compressor refrigeration system |
| Temperature control | Electronic temperature control |
| Temperature display | Data display |
| Probe | PTC |
| Condenser fans | Germany brand EBM |
| Exterior Material | Powder coated steel plate |
| Interior Material | Stainless Steel 304 |
| Liner | Stainless Steel 304 |
| Thickness of foaming layer | 100mm |
| Balance hole | 1(Diameter 18mm) |
| Castor | 4 |
| Net weight / gross weight | 126/170kg |
| External dimensions | 1530*765*885mm |
| Internal dimensions | 1330*470*595mm |
| Package size | 1600*835*1055mm |
Perfect for storage of biological samples, vaccines, and reagents in laboratories and hospitals.
Also suitable for research institutions and industries requiring ultra-low temperature preservation.
Perfect for storage of biological samples, vaccines, and reagents in laboratories and hospitals.
Also suitable for research institutions and industries requiring ultra-low temperature preservation.
Consult Our Experts
Model NO.: ULF-02
Temperature Range: -40~-80°c
Net Capacity: 60L
Model NO.: ULF-03
Temperature Range: -40°c to -80°c, Adjustable
Capacity: 120L
Model: ULF-01
Capacity: 20L
Internal temperature: -60°C to -80°C, adjustable
Model: ULF-04
Capacity : 220L
Temperature range : -40°C to -80°C, adjustable
Model: ULF-06
Capacity: 620L
Temperature range: -40°C to -80°C, adjustable
Model: ULF-09
Capacity: 108L
Temperature Range: -40~ -86ºC
Model: ULF-10
Capacity: 118L
Temperature Range: -60~-86ºC, adjustable
Model: ULF-11
Capacity: 158L
Temperature Range: -60~-86ºC
Model: ULF-12
Capacity: 208L
Temperature Range : -40~ -86ºC
Model: ULF-13
Capacity: 258L
Temperature Range: -60~-86ºC, adjustable
Model: ULF-14
Capacity : 308L
Temperature range : -86°C,adjustable
Model: ULF-15
Capacity: 358L
Temperature Range : -40~ -86ºC
Model: ULF-16
Capacity : 408L
Temperature Range : -40~ -86ºC
Model: ULF-17
Capacity: 458L
Temperature Range: -60~-86ºC, adjustable
Model: ULF-18
Capacity: 508L
Temperature Range: -40~-86 Degree
Model: ULF-19
Capacity: 608L
Temperature Range : -40~ -86ºC
Model: ULF-20
Capacity: 708L
Temperature Range : -40~ -86ºC
Model: ULF-21
Capacity: 808L
Temperature Range : -40~ -86ºC
Model: ULF-22
Capacity: 938L
Temperature Range : -40~-86ºC
Model: ULF-23
Capacity: 258L
Temperature range: -86°C to -105°C, Adjustable
Model: ULF-24
Capacity : 358L
Temperature range : -86°C to -105°C, Adjustable
Model: ULF-25
Capacity: 458L
Temperature range: -86°C to -105°C, Adjustable
