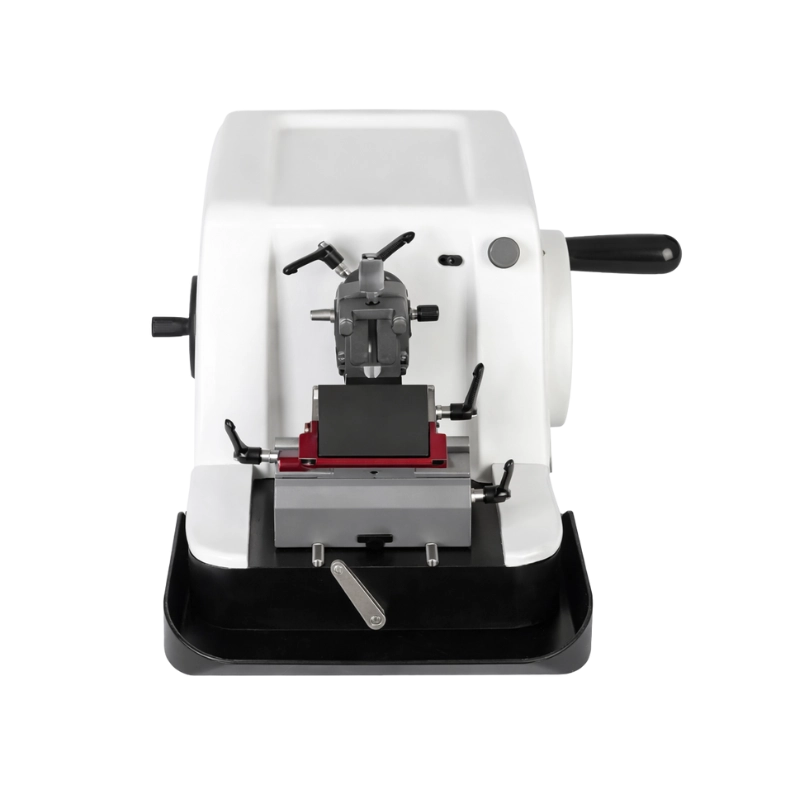

Labotemp Rotary Microtome ROM-04 is a manual rotary microtome designed for routine tissue sectioning in histopathology, diagnostic, and teaching laboratories. This precision microtome machine produces consistent thin sections with an adjustable cut thickness range of 0.5–60 μm, supporting reliable serial sections for standard histology and light microscopy. The smooth handwheel-driven rotary mechanism provides controlled, stable cutting, allowing accurate sectioning without motorized assistance.

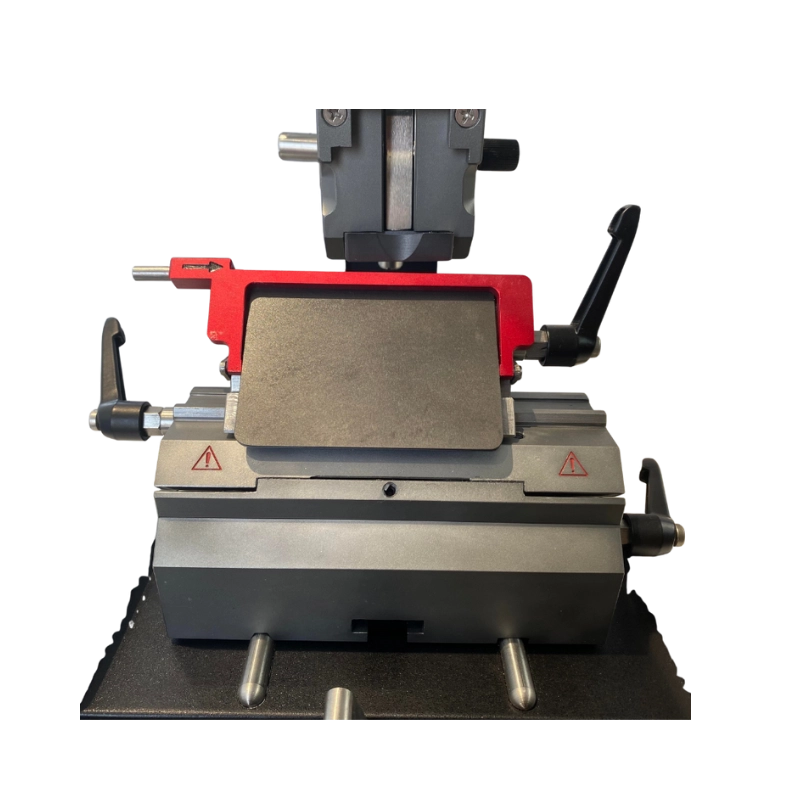

The ROM-04 offers precise specimen handling with a horizontal stroke of 0–28 mm and a vertical stroke of 52 mm, enabling controlled trimming and sectioning of routine tissue samples. Its compact mechanical design and removable waste tray allow easy cleaning and dependable daily operation compared to larger automated or sliding microtome systems.
Why choose Labotemp Rotary Microtome ROM-04?
✓ Precise thickness control: Manual adjustment supports 0.5–60 μm sectioning.
✓ Stable specimen movement: 52 mm vertical and 0–28 mm horizontal stroke enable accurate cuts.

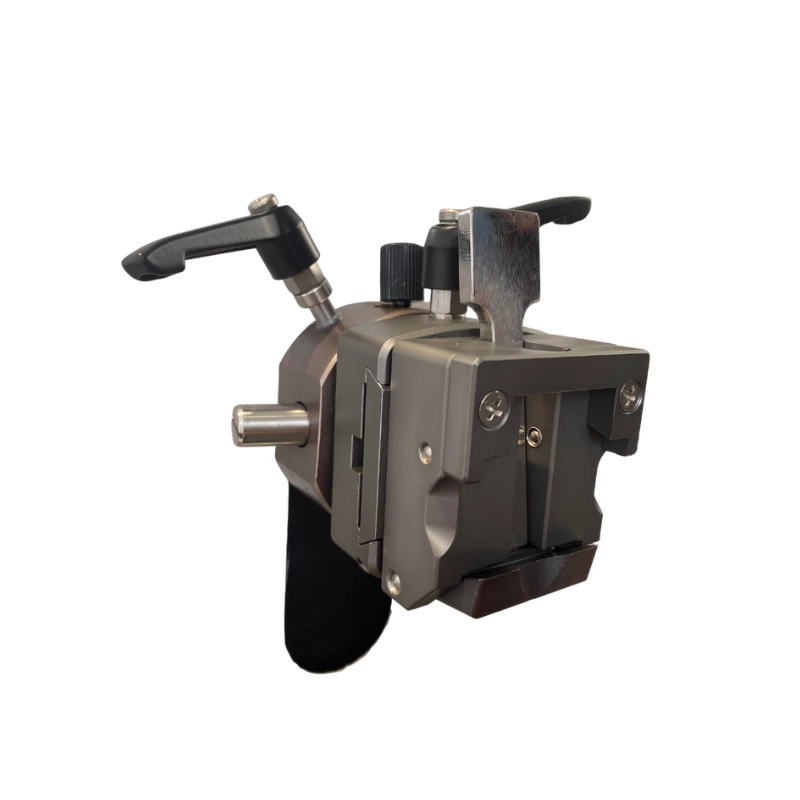

✓ Reliable blade holding: Secure holder ensures consistent blade alignment.
| General Specifications | |
|
Section Thickness Range : 0–60 µm Section Thickness Range |
0–60 µm |
|
Section Thickness Setting : 0–2 µm in 0.5 µm increments; 2–10 µm in 1 µm increments; 10–20 µm in 2 µm increments; 20–60 µm in 5 µm increments Section Thickness Setting |
0–2 µm in 0.5 µm increments; 2–10 µm in 1 µm increments; 10–20 µm in 2 µm increments; 20–60 µm in 5 µm increments |
|
Horizontal Specimen Stroke : 0–28 mm Horizontal Specimen Stroke |
0–28 mm |
|
Vertical Specimen Stroke : 52 mm Vertical Specimen Stroke |
52 mm |
|
Precision Error : ±1% Precision Error |
±1% |
|
Sample Orientation : 8° along the X-Y axis, rotatable 360° Sample Orientation |
8° along the X-Y axis, rotatable 360° |
|
Maximum Section Size : 60 × 55 mm Maximum Section Size |
60 × 55 mm |
| Operation | |
|
Method : Manual microtome Method |
Manual microtome |
|
Cutting Adjustment : Fine trimming control with coarse feed wheel Cutting Adjustment |
Fine trimming control with coarse feed wheel |
|
Specimen Movement : Stable forward and backward movement Specimen Movement |
Stable forward and backward movement |
|
Blade Holder : Precise lateral adjustment blade holder Blade Holder |
Precise lateral adjustment blade holder |
|

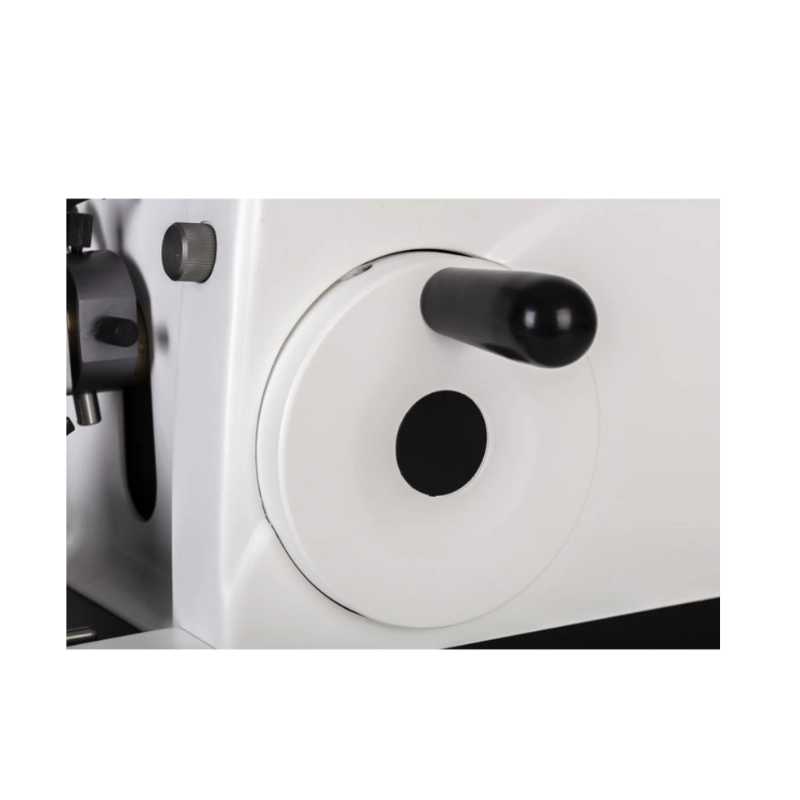

Handwheel : Manual handwheel with dual locking systems Handwheel |
Manual handwheel with dual locking systems |
| Physical Dimensions | |
|
Dimensions including Tray (L × W × H) : 565 × 440 × 285 mm Dimensions including Tray (L × W × H) |
565 × 440 × 285 mm |
|
Net Weight : 34 kg Net Weight |
34 kg |
|
Gross Weight : 52 kg Gross Weight |
52 kg |
|
Package Size(L × W × H) : 620 × 560 × 520 mm Package Size(L × W × H) |
620 × 560 × 520 mm |
