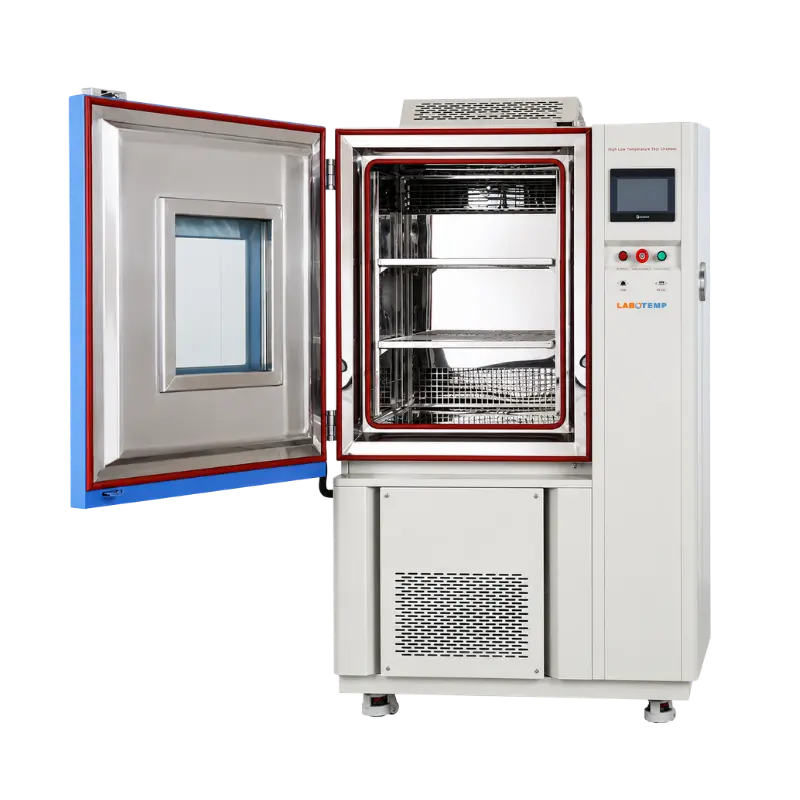

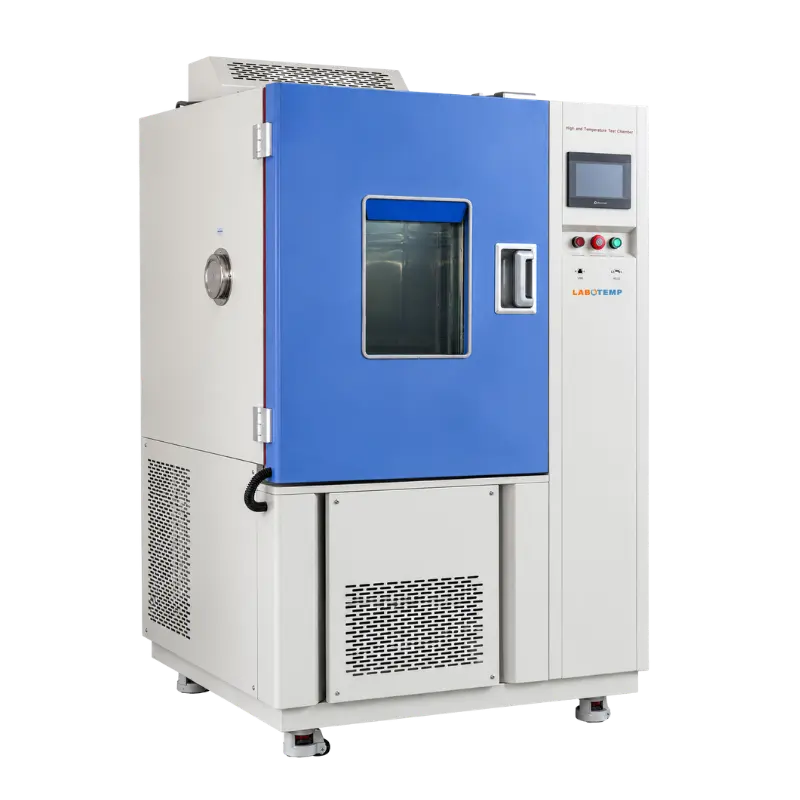

Thermal Cycling Chamber LCC-101
Labotemp Thermal Cycling Chamber
Labotemp Thermal Cycling Chamber
Labotemp Thermal Cycling Chamber

Thermal Cycling Chamber LCC-101

Labotemp Thermal Cyclic Chamber LCC-101 is a high-performance environmental test chamber designed for rapid temperature change and thermal cycling applications in laboratories, electronics manufacturing, automotive testing, aerospace research, and quality control facilities. Engineered for Environmental Stress Screening (ESS), this thermal cycling chamber provides precise temperature transitions for evaluating material durability, component reliability, and product performance under accelerated environmental conditions. With a 100L chamber capacity and temperature ranges up to -70°C to +150°C, the system supports a wide range of thermal testing applications.

Built with a programmable LCD touchscreen controller, Ethernet connectivity, and PC link functionality, the LCC-101 offers accurate monitoring and user-friendly operation. The chamber maintains stable conditions with ±0.5°C temperature fluctuation and controlled 5°C/min heating and cooling rates for dependable thermal cycling performance. Its mechanical compression refrigeration system ensures energy-efficient operation and long-term reliability, while integrated safety protections enhance operational safety. The SUS304 stainless steel interior chamber provides durability and corrosion resistance for continuous laboratory use.

Why Choose Labotemp Thermal Cyclic Chamber LCC-101?

✓ 5°C/min rapid heating and cooling: Supports reliable thermal cycling and ESS testing
✓ Wide temperature range up to -70°C to +150°C: Suitable for environmental testing applications
✓ Programmable touchscreen controller: Enables precise monitoring with Ethernet connectivity

$23371
Datasheet
Temperature Performance
Temperature Range -20°C to +150°C (Optional -40°C to +150°C, -70°C to +150°C)
Power Supply 380V / 220V 50Hz
Temperature Fluctuation ±0.5°C
Temperature Deviation ±2.0°C
Cooling Rate 5°C/min
Heating Rate 5°C/min
Control, Safety
Cooling System Mechanical Compression Refrigeration System
Controller Programmable Color LCD Touch Screen Controller with Ethernet Connection and PC Link
Exterior Material Steel Plate with Protective Coating
Interior Material SUS304 Stainless Steel
Safety Protection Over-Temperature Protection, Over-Current Protection, Refrigerant High-Pressure Protection, Earth Leakage Protection
Dimension & Shpping
Internal Dimensions (W × D × H) 400 × 500 × 500 mm
Overall Dimensions (W × D × H) 900 × 1050 × 1620 mm
Interior Volume 100 L
Heat Load 1000 W
Net Weight 335kg
Gross Weight 403kg
Package Size 1150x1050x1820mm
  • ➤ 5°C/min Cycling
  • ➤ Uniform airflow circulation ensures consistent temperature distribution throughout the test chamber.
  • ➤ High-quality insulated chamber construction minimizes heat loss and improves thermal efficiency.
  • ➤ Equipped with a large observation window for convenient monitoring of samples during testing without interrupting operation.
  • ➤ Durable SUS304 stainless steel chamber offers excellent corrosion resistance and long service life.
  • ➤ Heavy-duty caster wheels with locking mechanism enable easy installation and secure positioning.
  • ➤ Designed with modular refrigeration components for simplified maintenance and reliable long-term operation.
  • ➤ Intelligent control system supports programmable multi-step thermal cycling profiles for automated test sequences.
  • ➤ Robust steel exterior with a protective powder-coated finish provides enhanced durability and resistance to wear.
  • ➤ Integrated safety interlock and protective monitoring functions help ensure secure and uninterrupted testing operations.
  • Environmental Stress Screening
     Performs rapid thermal cycling to identify early-life failures and improve component reliability
  • Electronics Testing
     Evaluates electronic assemblies, sensors, and PCBs under repeated temperature transitions
  • Automotive & Aerospace
     Verifies durability and performance of components exposed to extreme temperature variations
  • Material Testing
     Assesses thermal expansion, contraction, and fatigue characteristics of engineering materials
  • Research & Development
     Supports thermal simulation studies, product development, and environmental testing
  • Quality Control
     Validates product reliability and performance before production and certification
