Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06

Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06

Name: Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06
Brand: Labotemp
SKU: FMT-06
Price: 4564.00 USD
Availability: InStock
Rating: 4.8 (884 reviews)

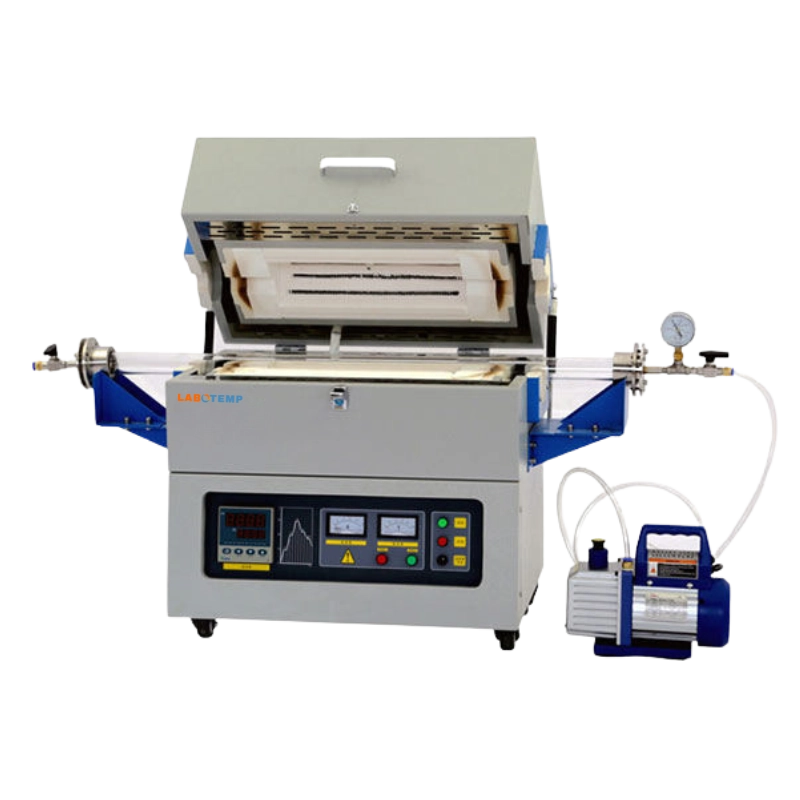

Labotemp Quartz Tube Furnace FMT-06 is a precision laboratory tube furnace engineered for uniform heat treatment up to 1200°C (working ≤1100°C). It features a ∮80 mm high-purity quartz tube, a 440 mm heating zone and 1000 mm total tube length. Resistance-wire heating and PID control with 30-segment programmable curves deliver ±1°C accuracy and ±5°C uniformity; an alumina ceramic-fiber chamber ensures thermal efficiency.

Built by an experienced furnace manufacturer and distributed via authorised furnace suppliers, this tubular furnace suits material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. The horizontal tubular furnace design simplifies loading and supports controlled-atmosphere or vacuum configurations with optional accessories (touchscreen with USB, PC connection software/interface, and safety interlock with automatic power-off), making it an ideal lab furnace and electric tube furnace for laboratory and industrial use.

Why choose Labotemp Tube Furnace FMT-06?
✓ Precision Control: PID regulation with 30-segment programming
✓ Quartz Tube Design: High-purity tube for clean, oxidation-free processing.
✓ Uniform Heating: 440 mm single-zone chamber for consistent temperatures.

$4564

Datasheet

General Specifications
Maximum Temperature : 1200°C Maximum Temperature	1200°C
Power Supply : AC 220 V, 50/60 Hz Power Supply	AC 220 V, 50/60 Hz
Working Temperature : ≤1100°C Working Temperature	≤1100°C
Standard Heating Zone Length : 440 mm Standard Heating Zone Length	440 mm
Chamber Size : 80 × 440 mm Chamber Size	80 × 440 mm
Standard Tube Diameter : Ø80 mm Standard Tube Diameter	Ø80 mm
Total Furnace Tube Length : 1000 mm Total Furnace Tube Length	1000 mm
Heating Rate : 0–20°C/min Heating Rate	0–20°C/min
Temperature Accuracy : ±1°C Temperature Accuracy	±1°C
Temperature Uniformity : ±5°C Temperature Uniformity	±5°C
Heating Zone : Single Zone Heating Zone	Single Zone
Heating & Temperature Control
Heating Element : Resistance Wire Heating Element	Resistance Wire
Controller : PID Temperature Controller Controller	PID Temperature Controller
Temperature Programming : Up to 30 Time-Temperature Segments Temperature Programming	Up to 30 Time-Temperature Segments
Thermocouple Type : K Type Thermocouple Type	K Type
Temperature Control : Automatic PID Control Temperature Control	Automatic PID Control
Programmable Operation : Multi-Segment Time-Temperature Curve Programmable Operation	Multi-Segment Time-Temperature Curve
Chamber & Furnace Construction
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Furnace Configuration : Horizontal Tube Furnace Furnace Configuration	Horizontal Tube Furnace
Furnace Tube Design : Horizontal Installation Furnace Tube Design	Horizontal Installation
Furnace Tube Diameter : Ø80 mm Furnace Tube Diameter	Ø80 mm
Heating Zone Configuration : Single Zone Heating Zone Configuration	Single Zone
Dimensions & Weight
External Dimension : 740 × 420 × 668 mm External Dimension	740 × 420 × 668 mm
Packaging Dimension : 900× 600× 1050 mm Packaging Dimension	900× 600× 1050 mm
Accessories Dimension : 1100 × 200× 205 mm Accessories Dimension	1100 × 200× 205 mm
Net Weight : 80 kg Net Weight	80 kg
Gross Weight : 100 kg Gross Weight	100 kg

PID controller ➤ PID controller
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments “time–temperature curve” can be set arbitrarily ➤ 30 segments “time–temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Material Synthesis: Suitable for controlled thermal treatment and synthesis of advanced materials Material Synthesis
Suitable for controlled thermal treatment and synthesis of advanced materials
Annealing & Sintering: Supports heat treatment, annealing, and sintering of laboratory materials and components Annealing & Sintering
Supports heat treatment, annealing, and sintering of laboratory materials and components
Semiconductor Processing: Suitable for thermal processing and research involving semiconductor materials Semiconductor Processing
Suitable for thermal processing and research involving semiconductor materials
Powder Metallurgy: Used for controlled heating and thermal treatment of metal and ceramic powders Powder Metallurgy
Used for controlled heating and thermal treatment of metal and ceramic powders
Nanomaterial Research: Supports preparation and thermal processing of nanomaterials under controlled conditions Nanomaterial Research
Supports preparation and thermal processing of nanomaterials under controlled conditions
Research & Industrial Laboratories: Suitable for thermal stability testing, material development, and other high-temperature laboratory processes Research & Industrial Laboratories
Suitable for thermal stability testing, material development, and other high-temperature laboratory processes

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
