Thermal Cycling Chamber LCC-104

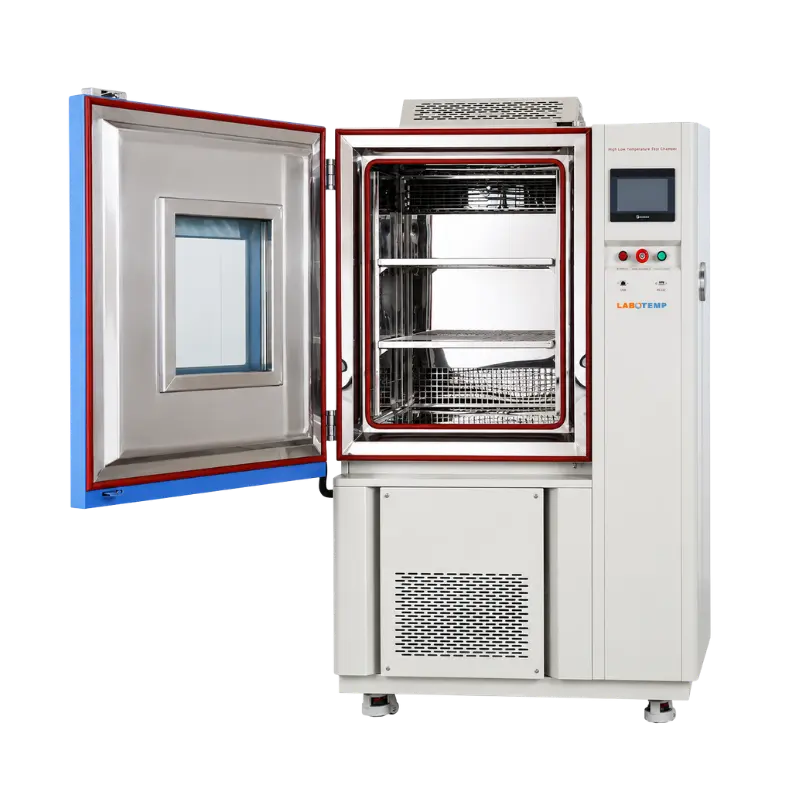

Labotemp Thermal Cycling Chamber

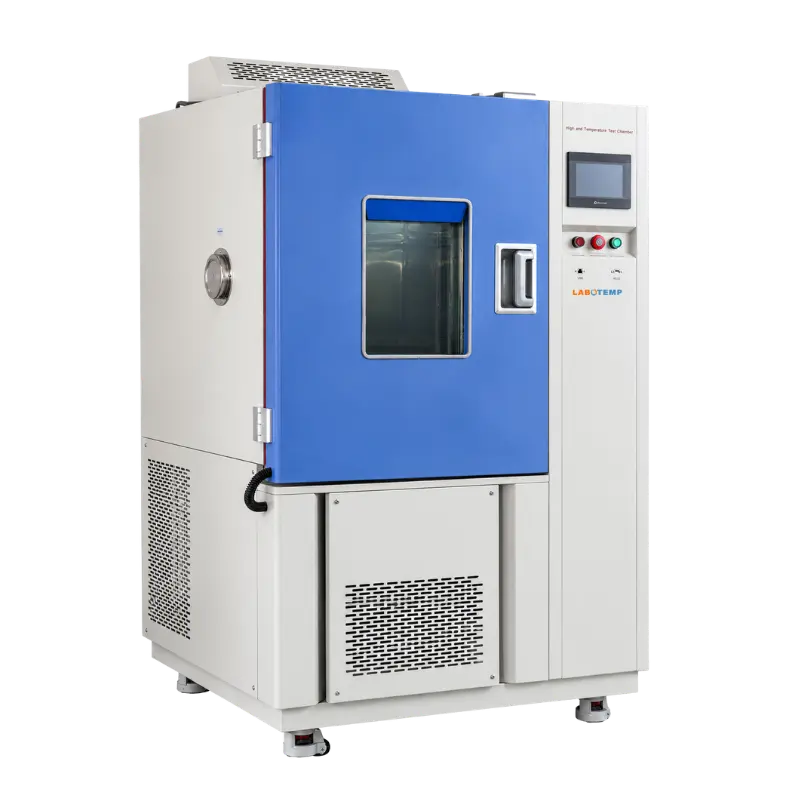

Labotemp Thermal Cycling Chamber
Labotemp Thermal Cycling Chamber

Thermal Cycling Chamber LCC-104

Labotemp Thermal Cyclic Chamber LCC-104 is a large-capacity environmental testing system developed for advanced thermal cycling and accelerated stress testing of industrial products, electronic systems, automotive assemblies, aerospace components, and high-volume test samples. Designed to simulate rapidly changing environmental conditions, the chamber helps laboratories evaluate thermal endurance, structural stability, and long-term product reliability under controlled temperature transitions. With a spacious 1000L stainless steel chamber, the LCC-104 is suitable for testing oversized components and multiple samples simultaneously in research, production, and quality assurance environments.

Equipped with a programmable color LCD touchscreen controller, the chamber allows precise configuration of testing profiles, temperature cycles, and monitoring parameters through Ethernet and PC connectivity. The system maintains stable chamber performance with ±2°C temperature deviation and ±0.5°C fluctuation, while the mechanical compression refrigeration system supports efficient cooling across temperature ranges from -70°C to +150°C. Multiple safety protections including over-temperature, over-current, refrigerant high-pressure, and earth leakage protection ensure secure long-duration operation.

Why Choose Labotemp Thermal Cyclic Chamber LCC-104?

✓ Large 1000L chamber design: Suitable for oversized samples and batch testing
✓ Ethernet and PC link connectivity: Enables efficient test control and monitoring
✓ Multi-level safety protection system: Ensures stable and dependable long-term operation

$44250
Datasheet
Temperature Performance
Temperature Range -20°C to +150°C (Optional -40°C to +150°C, -70°C to +150°C)
Power Supply 380V / 220V 50Hz
Temperature Fluctuation ± 0.5°C
Temperature Deviation ± 2.0°C
Cooling Rate 5°C/min
Heating Rate 5°C/min
Cooling System Mechanical compression refrigeration system
Control & Construction
Controller Programmable color LCD touch screen controller with Ethernet connection and PC Link
Safety Devices Over-temperature Protection, Over-current Protection, Refrigerant High-Pressure Protection, Earth Leakage Protection
Exterior Material Steel plate with protective coating
Interior Material SUS304 stainless steel
Dimension & Shpping
Interior Volume 1000 L
Internal Dimension (W × D × H) 1000 × 1000 × 1000 mm
Overall Dimension (W × D × H) 1500 × 1540 × 2140 mm
Heat Load 1000 W
Net Weight 625kg
Gross Weight 794kg
Package Size 1670x1670x2380mm
  • ➤ High-Volume Testing
  • ➤ Mechanical compression refrigeration for dependable cooling.
  • ➤ Programmable color LCD touchscreen for easy operation.
  • ➤ SUS304 stainless steel interior for corrosion resistance and durability.
  • ➤ Protective coated steel exterior for enhanced structural strength.
  • ➤ Multiple safety protections including over-temperature, over-current, high-pressure, and earth leakage protection.
  • ➤ 1000 W heat load capacity supports demanding testing.
  • ➤ Facilitates accurate test data recording through PC-based communication.
  • ➤ Engineered for high reliability and low maintenance during continuous operation.
  • ➤ Provides secure operation with integrated electrical and refrigeration protection systems.
  • Electronics & Industrial Equipment Testing
    Verifies the thermal performance and stability of electronic assemblies, control units, and industrial components
  • Automotive & Aerospace Validation
    Tests structural integrity and operational reliability of critical parts exposed to repeated temperature fluctuations
  • Battery & Energy System Evaluation
    Supports thermal endurance testing of battery packs and energy storage components across extreme temperature ranges
  • Material Research & Engineering Development
    Analyzes thermal expansion, fatigue resistance, and material behavior during accelerated temperature transitions
  • Industrial Quality Assurance
    Provides repeatable environmental testing for product qualification, manufacturing validation, and process quality control
  • Research & Laboratory Applications
    Enables controlled thermal cycling studies for universities, R&D centers, and advanced engineering laboratories
